• Model NO.：YJLV22 YJLV23 YJV22 YJV23
• Wire Core Material：Red Copper Wire
• Certification：ISO, CCC, CE
• Model：YJV
• Brand：Gdyg
• Transport Package：Wooden Drum
• Specification：50mm2, 90mm2, 120mm2, 150mm2, ...500mm2
• Trademark：GDYG
• Origin：Guangdong Province, China
• HS Code：8544492900
• Production Capacity：30000km

Basic Info.

Model NO. YJLV22 YJLV23 YJV22 YJV23 Wire Core Material Red Copper Wire Certification ISO, CCC, CE Model YJV Brand Gdyg Transport Package Wooden Drum Specification 50mm2, 90mm2, 120mm2, 150mm2, ...500mm2 Trademark GDYG Origin Guangdong Province, China HS Code 8544492900 Production Capacity 30000km

Product Description

Basic Information
Model No: NYY, H05V-U etc
Material Shape: Round Wire
Certificate: ISO9001,ISO14001, CCC, CE
Brand Name: GDYG
Specification: 0.5mm2 - 630mm2
Supply Record: America, Australia, African countries, Arabian countries, Asian countries etc.
Origin: Guangdong, China
Range of Application: Power Grid and All Industry
Voltage: 35KV, 10KV, 0.6/1KV, 450/750V, 300/500V
Current: AC & DC
Insulation Material: XLPE, PVC
Sheath Material: XLPE, PVC etc.
Material Shape: Round wire
Application:Transmission Line, Construction, Railway Transportation, Chemical Plant, Telecom , Oil Industry, Equipment Manufacture, Instrument Industry etc..

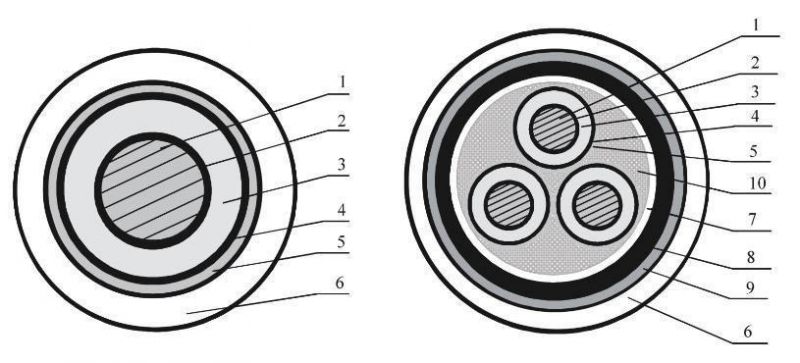

Construction Sketch

 1. Counductor
 2. Inner semi-conducting screen
 3. Insulation
 4. Outer semi-conducting screen
 5. Metallic screen
 6. Outer sheath
 7. Wrapping tape
 8. Inner sheath
 9. Steel belt armor
 10. Filler

Characteristics and Application of Products
Low voltage,high voltage,copper/aluminum conductor,XLPE/PVC insulated, PVC sheathed, power cable.Range of voltage is from 0.6/1KV to 35KV,these cables includes single core and muti cores.The corss section area of conductor can be from 1.5mm2 to 500mm2;3x1.5mm2 to 3x300mm2 or other size as customers require.

XLPE/PVC insulated power cable has the advantages of not only high mechanical strength,good ambient stress resistance,good electrical properties and anti-chemical corrosion,but also simple construction,light weight and convenient to use.

The main features of the flame retardant power cable is hard to get fire or that the continous burning of cable is very limited when it is on fire.It applies to power-generated station,subway,tunnel,high-storey building,large-size factory and mines,oil field and coal mine with many cables laid tightly together.

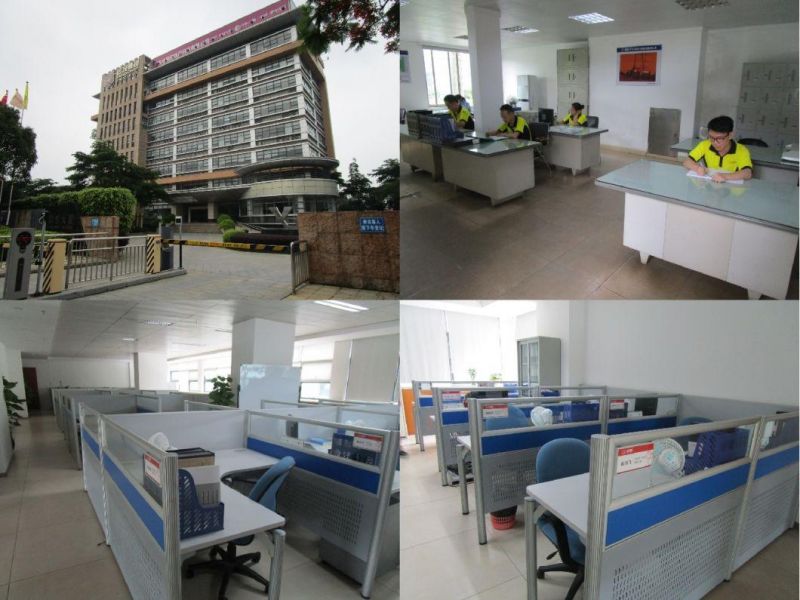

Company building & offices

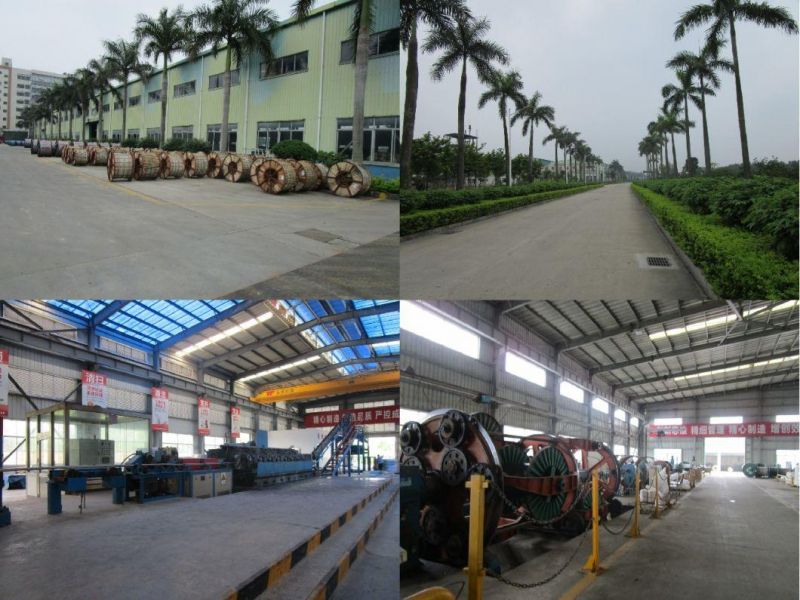

Factory & Workshop






Certificates


Customers
