• Model NO.：Alarm Cable
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, CCC, ETL, CPR
• Brand：Risun or OEM
• Stranded：0.22mm2, 0.5mm2
• Core：6 Cores
• Insulation：PVC
• Frame Retardant：Available
• Transport Package：100m,Roll
• Origin：Zhejiang, China
• HS Code：8544491100
• Production Capacity：20, 000km,Month

Basic Info.

Model NO. Alarm Cable Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CCC, ETL, CPR Brand Risun or OEM Stranded 0.22mm2, 0.5mm2 Core 6 Cores Insulation PVC Frame Retardant Available Transport Package 100m/Roll Origin Zhejiang, China HS Code 8544491100 Production Capacity 20, 000km/Month

Product Description

Shielded cable 2X0.50mm+4X0.22mm Security Alarm Cable

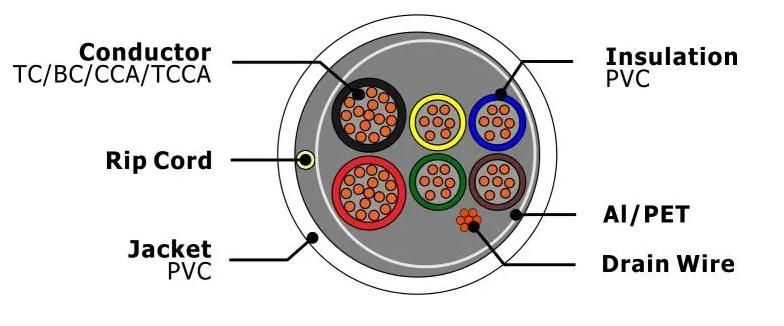

Construction

Conductor 1	2×(16/0.20mm) CU
Insulation	PVC-FR
Color Code	Black&Red
Conductor 2	4x(7/0.20mm) CU
Insulation	PVC-FR
Drain Wire	CU
Shield	Polyester Tape/Al Foil
Rip Cord	Yes
Jacket	PVC-FR

Application

This type of cable is flexible, making it easy to use has strong twist resistance to limit cuts and tears. The wires are of many colours making them easy to identify, and the white sheath make it easy to conceal. These have been specially designed for alarm installations because they have two wires (one red and one black), which are thicker, and are used to supply control panel peripherals (detectors, sirens, etc.)

Package

1) Packing Lengths: 100m/roll, or other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull box
4) Pallet (on request)
5) Other packing available according to client's request.






Company Profile

Hangzhou Risun Cable Co. Ltd. is a Professional manufacturer and exporter of high quality Lan cable/Network cable, coaxial cable, alarm cable and telephone cable. We specialize in this field for 13 years, and have already get ETL, CE, RoHS, ISO9001,CPR certification.And most of our products are exported to Europe, America, South America.Etc.

Sincere hope to use our 13 years of professional production and export experience in this field to help you.
