• Model NO.：Instrumentation Cable
• Material Shape：Round Wire
• Certification：ISO9001, CE, CCC
• Brand：OEM
• Transport Package：Wooden Drum
• Specification：1.5mm to 50mm2
• Trademark：OEM
• Origin：China(Mainland)
• HS Code：8544492100
• Production Capacity：50 Kilometer,Month

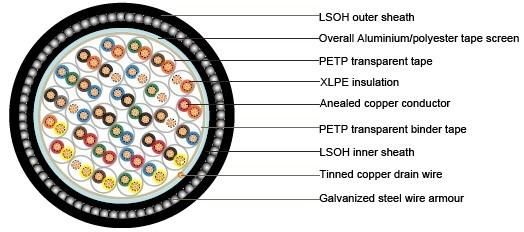

CONDUCTORAnnealed copper, sizes: 0.5mm² and 0.75mm² mulitistranded(Class 5), 0.5 mm², 1.0 mm² solid(Class 1), 1.5mm² or 2.5mm² multistranded(Class 2) to BS6360INSULATIONXLPE (Cross Linked Polyethylene), or PE (optional)PAIRINGTwo insulated conductors uniformly twisted together with a lay not exceeding 100mmCOLOUR CODESee technical informationBINDER TAPEPETP transparent tapeCOLLECTIVE SCREENAluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm²INNER SHEATHLSZH(Low Smoke Zero Halogen) sheathAMOURGalvanized steel wire armourOUTER SHEATHLSOH(Low Smoke Zero Halogen) sheath Flame retardant to IEC60332-3-22 Fire resistant to IEC60331 Halogen free to IEC60754-1 Low smoke emission to IEC61034-1-2SHEATH COLOURBlack or blue

Mechanical and Electrical Properties

Operating temperature: -20˚C up to + 90˚C( fixed installation) 0˚C to +50˚C(during operation )
Minimum bending radius: 6 x overall diameter

CONDUCTOR AREA SIZEMM20.50.50.751.01.5CONDUCTOR STRANDINGNO. X MM1 x 0.816 x 0.224 x 0.21 x 1.137 x 0.53CONDUCTOR RESISTANCE MAXOHM/KM36.839.726.518.212.3INSULATION RESISTANCE MINGOHM/KM55555CAPACITANCE UNBALANCE AT 1 KHZ(PAIR TO PAIR SCREEN)PF/250M  250  MAX. MUTUAL CAPACITANCE @ 1 KHZ FORNON OS OR OS CABLES (EXCEPT ONE-PAIR AND TWO-PAIRS)PF/M115115115115120MAX. MUTUAL CAPACITANCE @ 1 KHZ IS/OS CABLES (INCLUDE 1 PAIR AND 2 PAIR)PF/M7575757585MAX. L/R RATIO FOR ADJACENT CORES(INDUCTANCE/ RESISTANCE)ΜH/OHM2525252540TEST VOLTAGECORE TO COREV1000100010001000CORE TO SCREENV10001000100010001000RATED VOLTAGE MAXV300/500300/500300/500300/500300/500NOMINAL CONDUCTOR CROSS-SECTIONAL AREANOMINAL THICKNESS OF INSULATIONNOMINAL THICKNESS OF BEDDINGNOMINAL DIA. OVER BEDDINGNOMINAL THICKNESS OF ARMOURNOMINAL THICKNESS OF SHEATHNOMINAL DIA. OF CABLEAPPROX. WEIGHTMM2MMMMMMMMMMMMKG/KM0.50.50.85.50.91.39.92000.50.50.86.80.91.311.22600.50.51.110.90.91.415.54600.50.51.214.41.251.620.17900.50.51.216.51.251.622.211000.50.51.318.81.61.725.412800.50.51.322.31.61.829.115200.50.51.528.51.6235.721000.50.60.86.20.91.310.62500.50.60.87.60.91.3123000.50.61.112.40.91.517.25600.50.61.216.51.251.622.29700.50.61.319.21.61.725.812400.50.61.321.71.61.828.516400.50.61.526.41.61.933.417700.50.61.733.422.141.627700.750.60.86.70.91.410.92800.750.60.98.40.91.412.83300.750.61.213.81.251.619.37500.750.61.318.41.61.824.312600.750.61.321.11.61.92714800.750.61.524.41.6231.418900.750.61.729.522.13724400.750.6237.62.52.447.3321010.60.86.60.91.31129010.60.880.91.412.634510.61.213.51.251.51979010.61.217.71.251.723.6131010.61.320.61.61.827.4174010.61.523.81.61.830.6204010.61.528.41.6235.6218010.6236.622.24535001.50.60.87.50.91.411.93201.50.60.99.30.91.514.14201.50.61.215.61.251.621.69401.50.61.320.91.61.827.415001.50.61.524.61.61.931.219701.50.61.527.81.6235.824001.50.61.733.722.242.331701.50.62432.52.553.25020

Packing shipping



Why Choose Us ?
1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas

If you have another question, pls feel free to contact us below
