• Model NO.：PVC insulated copper aluminum cable
• Wire Core Material：Copper or Aluminum
• Certification：ISO, CCC
• Model：Cu(Al),PVC,PVC
• Brand：Hongda
• Color：Black
• Warranty：One Year
• Transport Package：Wooden Drum,Steel & Wooden Drum
• Specification：50 sq mm 95mm 35mm 25mm sq etc.
• Trademark：HONGDA
• Origin：China
• HS Code：8544492100
• Production Capacity：100 Kilometers Per Month

Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable can not bear external mechanical forces.2Cu conductor (Al conductor) PVC insulated PE sheathed power cable3Cu conductor (Al conductor) PVC insulated double of steel-tape armored PVC sheathed power cableFor laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force.4Cu conductor (Al conductor) PVC insulated double of steel-tape armored PE sheathed power cable5Cu conductor (Al conductor) PVC insulated steel-wire armored PVC sheathed power cableFor laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force.6Cu conductor (Al conductor) PVC insulated steel-wire armored PE sheathed power cable

Note:

HONGDA CABLE can ALSO produce "Flame-Retardant Series", "Fire-Resistant Series", "Low Smoke Halogen Free (LSHF/LSOH) Series","Low Smoke Low Halogen (LSLH) Series", etc. power cable as customer required.
Performance in line with IEC60332,IEC 61034,IEC60754 requirements.

Production Range
Rated Voltage U0/U(Um) (kV): 0.6/1(1.2)

No. of cores: 1 , 2 , 3, 4 , 5, 3+1 , 4+1 ,3+2

Nominal cross-section (mm2): 1.5~630

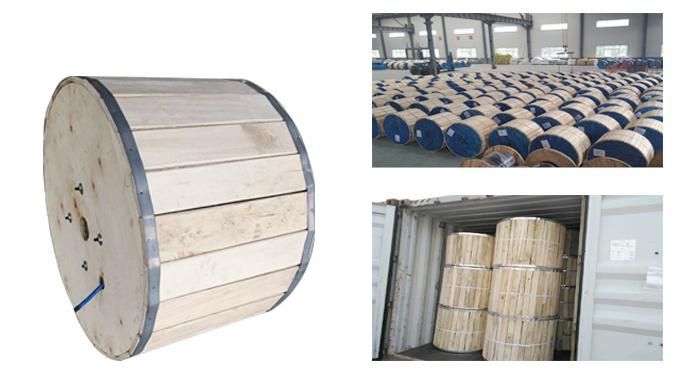

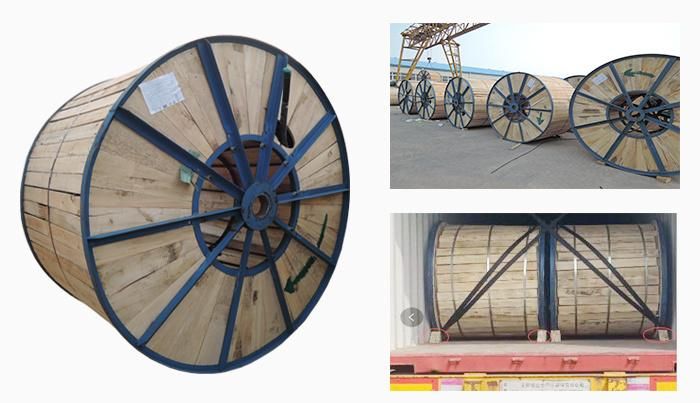

PACKAGE:

Standard export wooden drum, steel & wooden drum packing.

DELIVERY TIME:

7-15 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
