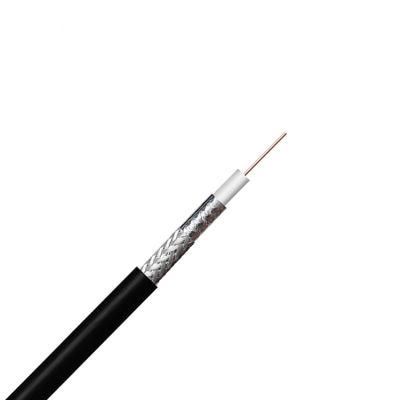

CT100 CPE PVC 75 Ohm CATV Coaxial Cable
Hangzhou Spring Electronics Co., Ltd.- Application：Local Communication Cable, Coaxial Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：Coaxial Cable
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：CT100
- Wire Core Material：Steel
- Certification：CE, ISO, RoHS
- Model：CT100
- Brand：OEM
- Cable Conductor：1.0mm
- Transport Package：Roll,Wooden Spool,Plastic Reel,Gift Box,Pully Box
- Trademark：FUU
- Origin：Made in China
- HS Code：8544200000
- Production Capacity：3000km,Month
Description
CT100 CPE PVC
75 Ohm CATV coaxial Cable
Construction Parameters:
Inner Conductor
0.04"/1.00mm/18AWG BC
Dielectric
4.6mm 5 cell air spaced PE
Shield 1
4.75mm overlapped copper foil
Shield 2
16*4*0.12mm bare copper braid
wire 55% coverage
Jacket
6.7±0.15mm PVC
Jacket Thickness
0.030"/0.76mm
Application
For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance
The Max. at 20ºC shall be < 21.9 Ω/km
6.68Ω/1000ft
Capacitance
52 ±3 pF/m 15.9 ±0.9 pF/ft
Impedance
75 ± 3 Ω
Return loss
between 5 and 1000MHz: > 22dB
Velocity of Propagation
0.85
Sparker Test (VAC)
4
Mechanical and Envrionmental Properties
Cable bend radius
10 times the cable diameter
Operating Temp Range
-20 ºC to 60ºC
Cable diamensions
6.7±0.15mm PVC

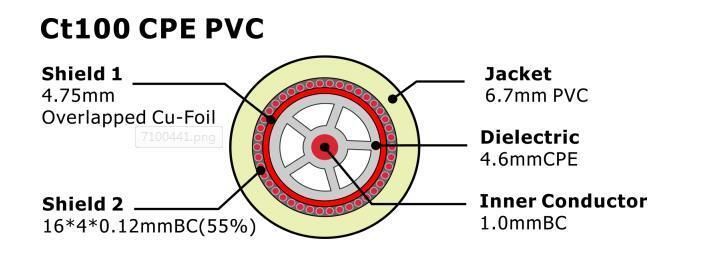

Cross Section
Attenuation(20ºC):
Frequency (MHZ)
Max Attenuation(dB/100ft)
Max Attenuation (dB/100m)
5
1.00
10
1.50
50
3.80
100
5.70
200
8.70
300
9.80
470
12.80
600
14.00
1000
19.00
Order Informations:
Marking
CT100 CPE PVC CATV COAXIAL CABLE ×××M/FT
Package
Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time
Normally 25 days after received the deposit.
