• Model NO.：Cable Unarmored Tray TC(XHHW-2) TC-ER
• Wire Core Material：Red Copper Wire
• Certification：ISO, CCC, CE

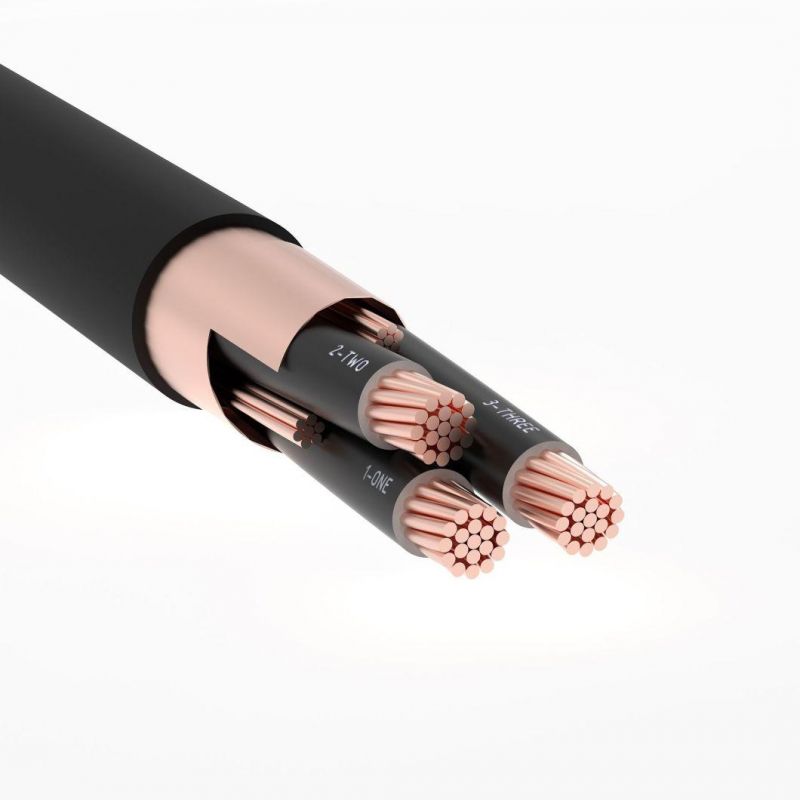

• Model：VFD Tray Cable
• Brand：OEM
• Transport Package：Wooden Drum
• Specification：2.5~400sqmm
• Trademark：OEM
• Origin：China(Mainland)
• HS Code：8544492100
• Production Capacity：500 Kilometer,Month

CONDUCTOR COUNTCONDUCTOR SIZEBARE GROUNDING CONDUCTORNOMINAL OVERALL DIAMETER OF CABLECABLE WEIGHTAMPACITY 30°C AMBIENTMAX. PULLING TENSION(PULLING EYE)MIN. BEND RADIUS (PULL) AWGAWGINLBS/1000FTAMPSLBIN

3C+ 3G

14

3 X 18

0.40

130

25

99

7.21

3C+ 3G

12

3 X 16

0.44

172

30

157

7.91

3C+ 3G

10

3 X 14

0.50

255

40

249

9.02

3C+ 3G

8

3 X 14

0.66

386

55

396

11.85

3C+ 3G

6

3 X 12

0.74

539

75

630

13.29

3C+ 3G

4

3 X 12

0.84

710

95

1002

15.11

3C+ 3G

2

3 X 10

1.00

1060

130

1593

18.08

3C+ 3G

1

3 X 10

1.13

1299

145

2009

20.37

3C+ 3G

1/0

3 X 10

1.22

1549

170

2534

21.92

3C+ 3G

2/0

3 X 10

1.31

1843

195

3194

23.59

3C+ 3G

3/0

3 X 8

1.42

2267

225

4027

25.56

3C+ 3G

4/0

3 X 8

1.54

2752

260

5078

27.73

3C+ 3G

250

3 X 8

1.74

3259

290

6000

31.37

3C+ 3G

350

3 X 6

1.96

4491

350

8400

35.37

3C+ 3G

500

3 X 6

2.24

5975

430

12000

40.33







Packing shipping







Any problem and inquiry pls contact with Tina
