• Model NO.：FD-0.6,1KV-CV
• Wire Core Material：Red Copper Wire
• Certification：ISO, CCC, SGS
• Model：Fire Resistant Cable
• Brand：Hongda
• Standard：IEC 60332, 1, IEC 60502-1, Ce, RoHS
• Rated Voltage：0.6,1 Kv
• Transport Package：Drum or as Customer Require
• Specification：1.5mm2 to 400mm2
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：800km,Month

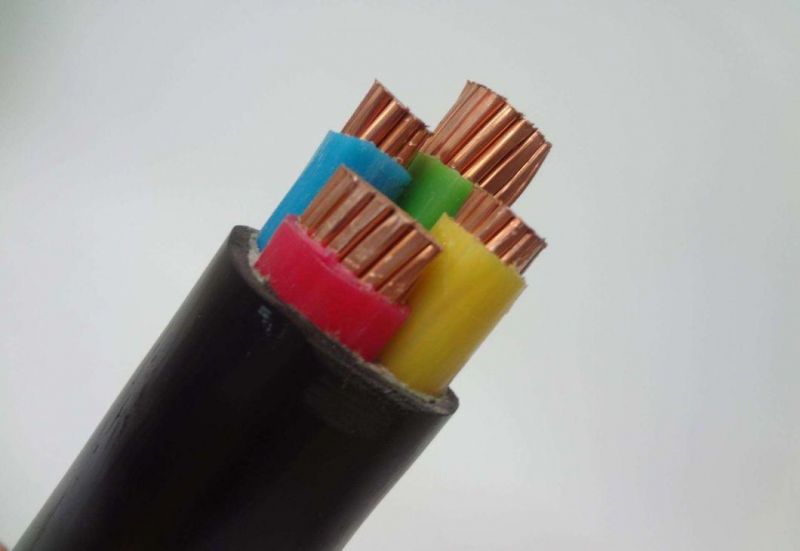

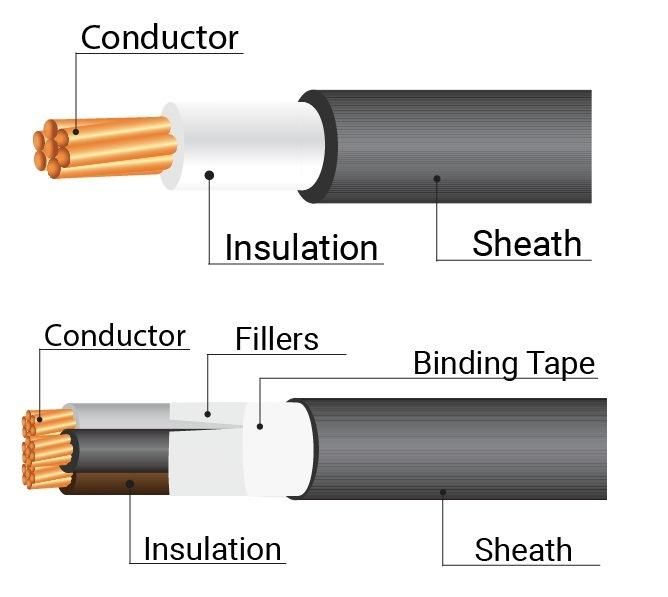

Conductor: Concentric stranded and compacted round annealed copper,
Single-core: Size 1.5 mm²  up to 1,000 mm²
Multi-core : Size 1.5 mm²  up to 400 mm²Insulation: Cross-linked Polyethylene (XLPE)Core identificationSingle-core: Natural (Translucent)
2 Core : Blue and Brown
3 Core : Brown, Black and Grey
4 Core : Blue, Brown, Black and Grey Other colors are available on customer requestInner sheath: Black polyvinyl chloride (PVC/ST2)Outer sheath: Black polyvinyl chloride (PVC/ST4)Classification: Maximum conductor temperature 90°C : Circuit voltage not exceeding 1,200 Volts Rated voltage (U₀ /U) 0.6/1 KV 600 Volts between Line-to-Earth 1,000 Volts between Line-to-LineTesting voltage: 3,500 VoltsReference standard: IEC 60502-1, IEC 60228, IEC 60332-1



No of cores	Size	Insulation  thickness	Diameter of  armour wire	Approx. diameter  under armour	Overall diameter	Weight	Max. conductor  resistence at 20°C
	sq.mm	mm	mm	mm	mm	kg/km	ohms/km
2	1.5	0.6	0.9	10.4	12.4	420	12.1
2	2.5	0.7	0.9	11.5	13.8	500	7.41
2	4	0.7	0.9	12.6	17.2	580	4.61
2	6	0.7	0.9	13.8	18.4	660	3.08
2	10	0.7	0.9	15.7	20.5	830	1.83
2	16	0.7	1.25	16.1	21.6	1000	1.15
2	25	0.9	1.6	16.3	22	1100	0.727
2	35	0.9	1.6	18.4	25	1550	0.524
2	50	1	1.6	20.6	27.4	1850	0.387
2	70	1.1	1.6	23.6	30.6	2450	0.268
2	95	1.1	2	26.7	34.7	3350	0.193
2	120	1.2	2	29.5	37.7	3900	0.153
2	150	1.4	2.5	32.5	40.9	4650	0.124
2	185	1.6	2.5	36.5	46.5	5950	0.0991
2	240	1.7	2.5	40.6	50.6	7350	0.0754
2	300	1.8	2.5	44.9	55.1	8700	0.0601
2	400	2	2.5	50	60.6	10750	0.047
3	1.5	0.6	0.9	10.9	15.5	426	12.1
3	2.5	0.7	0.9	12.2	16.8	540	7.41
3	4	0.7	0.9	13.4	18	640	4.61
3	6	0.7	0.9	14.7	19.3	740	3.08
3	10	0.7	1.25	16.7	22.2	1080	1.83
3	16	0.7	1.25	17.2	22.9	1310	1.15
3	25	0.9	1.6	20.6	27.2	1800	0.727
3	35	0.9	1.6	22.9	29.7	2200	0.524
3	50	1	1.6	23.4	30.2	2450	0.387
3	70	1.1	2	26.9	33.9	3200	0.268
3	95	1.1	2	30.5	38.7	4450	0.193
3	120	1.2	2	33.7	42.1	5300	0.153
3	150	1.4	2.5	37.6	47.2	6700	0.124
3	185	1.6	2.5	41.7	51.5	8080	0.0991
3	240	1.7	2.5	46.6	56.8	9950	0.0754
3	300	1.8	2.5	51.5	61.9	12050	0.0601
3	400	2	2.5	57.5	68.3	14800	0.047
4	1.5	0.6	0.9	11.9	16.5	520	12.1
4	2.5	0.7	0.9	13.4	18	620	7.41
4	4	0.7	0.9	14.8	19.4	730	4.61
4	6	0.7	0.9	16.2	21.7	990	3.08
4	10	0.7	1.25	18.6	24.1	1260	1.83
4	16	0.7	1.25	19.1	24.8	1640	1.15
4	25	0.9	1.6	22.9	29.5	2150	0.727
4	35	0.9	1.6	25.5	32.3	2650	0.524
4	50	1	1.6	26.9	33.9	3100	0.387
4	70	1.1	2	31.4	39.6	4400	0.268
4	95	1.1	2	35.2	43.6	5650	0.193
4	120	1.2	2.5	39.4	49	7250	0.153
4	150	1.4	2.5	43.5	53.3	8550	0.124
4	185	1.6	2.5	48.3	55.8	10300	0.0991
4	240	1.7	2.5	54.5	64.9	12900	0.0754
4	300	1.8	2.5	59.9	70.7	15550	0.0601
4	400	2	3.15	67.3	80	20250	0.047
5	1.5	0.6	0.9	-	11	240	12.1
5	2.5	0.7	0.9	-	12	300	7.41
5	4	0.7	0.9	-	13	360	4.61
5	6	0.7	0.9	-	14	440	3.08
5	10	0.7	0.9	-	16	580	1.83
5	16	0.7	0.9	-	19	860	1.15
5	25	0.9	1.25	-	22	1050	0.727
7	1.5	0.6	0.9	-	16.2	520	12.1
7	2.5	0.7	0.9	-	18	650	7.41
12	1.5	0.6	0.9	-	20.9	860	12.1
12	2.5	0.7	0.9	-	24.4	1130	7.41
19	1.5	0.6	0.9	-	24.1	1130	12.1
19	2.5	0.7	0.9	-	29.2	1710	7.41

Packing & Shipping:

Packing
Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.

Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Shipping Port:
Shanghai, Qingdao, Tianjin or other ports as per your requirements.

Sea freight:
FOB/C&F/CIF/DAP quotation are all available.
