• Model NO.：T-207X
• Origin：China
• Production Capacity：300PCS,Month

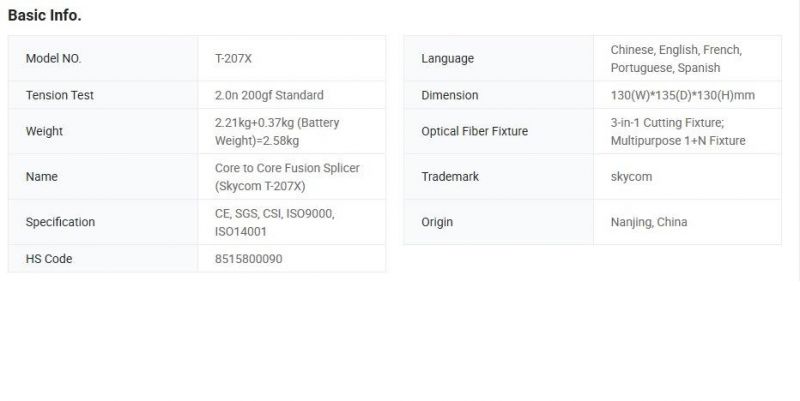

Basic Info.

Model NO. T-207X Origin China Production Capacity 300PCS/Month

Product Description

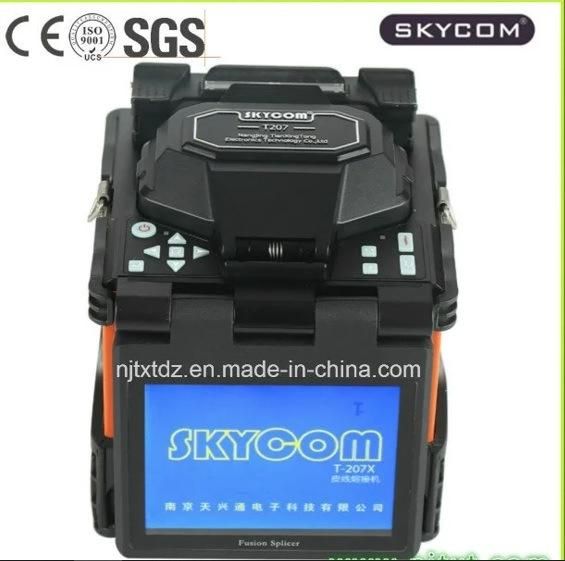

>  Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.
>  We has been dedicated to R & D, manufacturing fusion splicer from 2010, and successfully obtained 5 patents for the fusion slicer research. SKYCOM T-207 is our latest developed product. It is more concise and smaller in size and has obtained 2 patents for its new technologies.

Main Features:
>  5 inches high resolution colorful LCD display, image can be turned according to position
>  Average splice time: 10 seconds
>  Average tube-heat time: 30 seconds
>  Lithium battery: Rechargable and up to 180 times of continuous splice and heat after fully charged
>  X or Y axis Separately views with 360 times magnification, or Simultaneously 300 times
>  Cutting-edge technology for image processing
>  New developed technology providing strong wind and dust resistance
>  Splicing mode: Auto & Manual & Full-Auto
>  USB Port
>  Storing 6,000 groups of latest splice results
>  New technology of fiber core alignment, enhanced accuracy
>  New 3-in-1 cutting fixture for rubber-insulated wire, pigtail & bare fiber (Patented technology)
>  New Multipurpose 1+N fixture (Patented technology)
* 1+N: one 3-in-1 fixture ( for rubber-insulated wire, fiber optic pigtail, bare fiber) & optional fixtures ( for SC/LC/FC connector - T-207XF).


Applicable  Fibers	SM,   MM,   NZ-DS,   EDF  AND  OTHERS
Average  Splice  Loss	0.02dB(SM),   0.01dB(MM),   0.04dB(NZDS),   0.04dB(EDF)
Return  Loss	≥ 60dB
Tension  Test	2.0N(200gf) ( Standard )
Typical splicing time	10 seconds
Typical heating time	30 seconds
Splicing  Program	50  groups
Heat-shrinkable  T  Bush	20mm,   40mm,   60mm
Language	Chinese, English, French, Portuguese, Spanish
Environmental  Conditions	-10 ~ +50 ° C (operation  temperature), 0 ~ 95%  RH(humidity),   0 ~ 5000m(altitude)
Power  Supply	AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC)Inner lithium battery: 11.1V, 6AH
Monitor	5 inches high resolution colorful LCD display
Fiber Image Magnification	Simultaneously 360 times, more clearly
Storage of Splice Result	6,000 groups of latest splice results
Splicing Model	Auto & Manual & Full Auto
Optical Fiber Fixture	3-in-1 cutting fixture; Multipurpose 1+N fixture (T-207XF, for SC/LC/FC connector)
Dimensions	130(W)*135(D)*130(H)mm;                 Package size: 53*32*30cm
Weight	2.21kg+0.37kg (battery weight)=2.58kg;        Package G.W.: 8.68kg

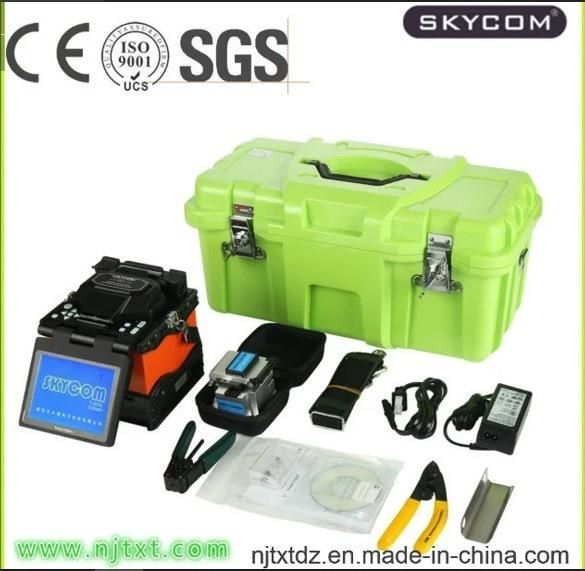

Standard  Package

No.	Item	Quantity
1	Machine   (T-207)	1
2	Fiber  Cleaver	1
3	Fiber  Stripper	1
4	AC  Adaptor (Battery)	1
5	Battery	1
6	Spare  Electrodes	1
7	Cooling  Tray	1
8	Instruction  CD	1
9	Quick  Reference  Guide	1
10	Rubber-insulated wire 3-in-1 cutting fixture	1
11	Transit   Case   with  Carrying  Strap	1
12	Rubber-insulated wire strippers	1
