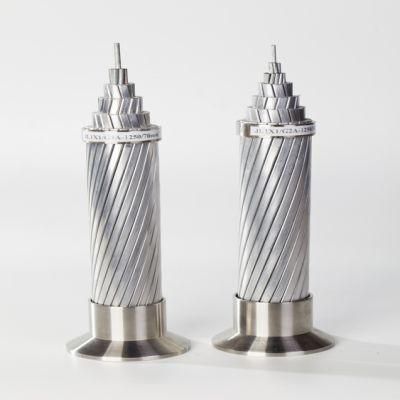

Bare Aluminum AAC Conductor 10-1500 mm2 Conform to IEC 61089 Standard
Guangdong Vango Cable Industry Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead Installation
- Conductor Material：Aluminum
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Model NO.：AAC Conductor
- Material Shape：Round Wire
- Range of Application：Overhead Installation
- Certification：ISO9001, ISO9001,ISO14001, CCC, Ce
- Brand：Gdyg
- Transport Package：Wooden Reel, Steel Reel
- Specification：10-1500 mm2
- Trademark：GDYG
- Origin：Guangdong, China
- HS Code：7614100000
- Production Capacity：4600 Tons Per Month
Description
D.C. resistanceWire Conductor mm2 mm mm kg/km kN Ohm/km 10 10 7 1.35 4.05 27.4 1.95 2.8633 16 16 7 1.71 5.12 43.8 3.04 1.7896 25 25 7 2.13 6.40 68.4 4.50 1.1453 40 40 7 2.70 8.09 109.4 6.80 0.7158 63 63 7 3.39 10.2 172.3 10.39 0.4545 100 100 19 2.59 12.9 274.8 17.00 0.2877 125 125 19 2.89 14.5 343.6 21.25 0.2302 160 160 19 3.27 16.4 439.8 26.40 0.1798 200 200 19 3.66 18.3 549.7 32.00 0.1439 250 250 19 4.09 20.5 687.1 40.00 0.1151 315 315 37 3.29 23.0 867.9 51.97 0.0916 400 400 37 3.71 26.0 1102.0 64.00 0.0721 450 450 37 3.94 27.5 1239.6 72.00 0.0641 500 500 37 4.15 29.0 1377.6 80.00 0.0577 560 560 37 4.39 30.7 1542.9 89.60 0.0515 630 630 61 3.63 32.6 1738.3 100.80 0.0458 710 710 61 3.85 34.6 1959.1 113.60 0.0407 800 800 61 4.09 36.8 2207.4 128.00 0.0361 900 900 61 4.33 39.0 2483.3 144.00 0.0321 1000 1000 61 4.57 41.1 2759.2 160.00 0.0289 1120 1120 91 3.96 43.5 3093.5 179.20 0.0258 1250 1250 91 4.18 46.0 3452.6 200.00 0.0231 1400 1400 91 4.43 48.7 3866.9 224.00 0.0207 1500 1500 91 4.58 50.4 4143.1 240.00 0.0193
Our company
Established in 1988, Guangdong Vango Cable Industry Co., Ltd., the Guangdong Top 100 Private enterprise, is a professional manufacturer of power cables and wires. It is the main supplier of cable & conductor and special transmission conductor of National Power Grid and China Southern Power Grid. The comprehensive strength of Vango Company ranks top 20 of the cable industry in China and top 5 of the Guangdong province.
It covers 214000m² with about 110 sets international advanced cable and wire producing and testing equipments. There are 540 employees including over 116 intermediate and senior technical personnel with 9 senior titles which contributes strong power of scientific research, management and innovation. It gains 21 Patents issued by State Intellectual Property Office of China.
The main products are power cables with rated voltage up to 35kV, common type, fire-resistance and flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V, PVC insulated cable and wire, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items.

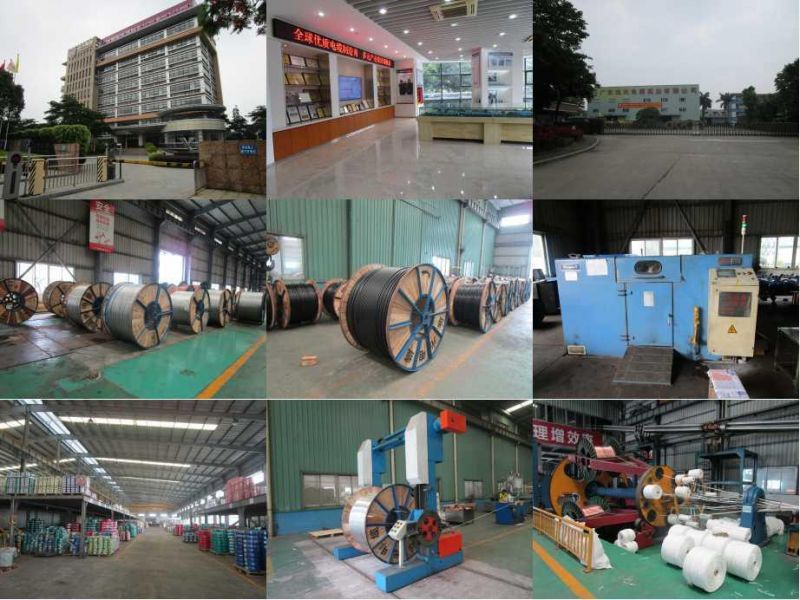

Factory view

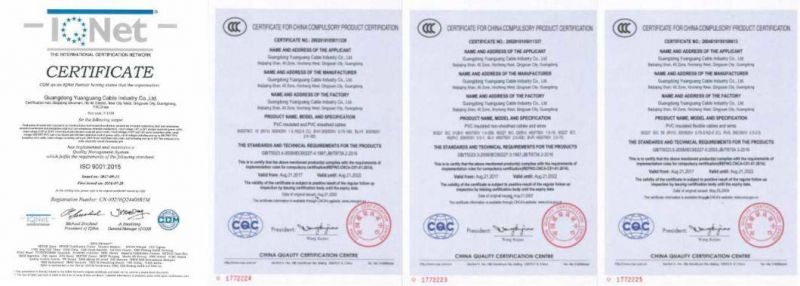

Certificates
