Mv 12/20 (24) Kv Aluminum Conductor, Twisted Power Cable. 3*1*150mm2
YIFANG ELECTRIC GROUP INC.- Application：Underground
- Voltage：High Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：HDPE
- Material Shape：Round Wire
Base Info
- Model NO.：3*1*150mm2
- Wire Core Material：Aluminum

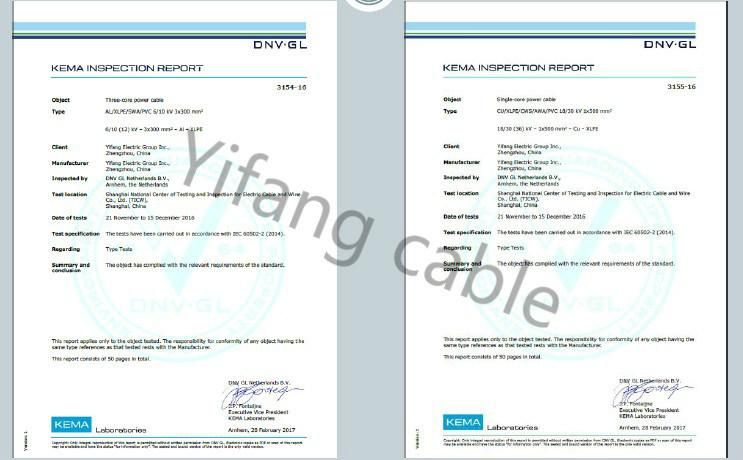

- Certification：ISO, CCC, Kema
- Model：Yjlv62
- Brand：Yifang
- Transport Package：Steel-Wooden Drum
- Specification：According to packing length
- Trademark：Yifang
- Origin：China
- HS Code：8544462100
- Production Capacity：200km Per Month
Description
Basic Info.
Model NO. 3*1*150mm2 Wire Core Material Aluminum Certification ISO, CCC, Kema Model Yjlv62 Brand Yifang Transport Package Steel-Wooden Drum Specification According to packing length Trademark Yifang Origin China HS Code 8544462100 Production Capacity 200km Per MonthProduct Description
Medium Voltage Power cable1. Application: The product is used in aerial Power line at rated voltage 3-35KV
2. Applicable Standards: IEC60502-2, DIN VDE 0276-620, ICEA S-93-639,, AS/NZS 3599, SANS 1713, NFC33-226
3. Production Scope:
Number of Core: 1, 3 or 3+K
Voltage: Up to 45 KV
Cross Section for each Core: from 30mm2 to 800mm2

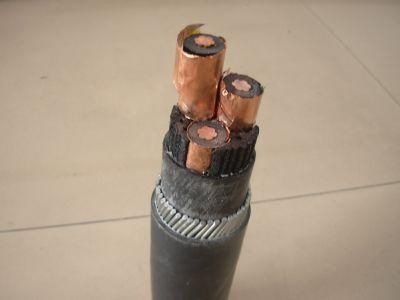

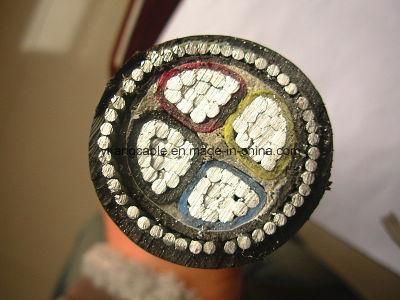

4. Construction:
Phase Core
Conductor: Stranded copper/ Aluminum/Aluminum alloy.
Insulation: XLPE / TRXLPE
Metallic screen (optional): Copper tape/Copper wire/Copper wire + tape / Al tape
Jacket: PVC/PE
Messenger Conductor (optional):
Conductor: ACSR /GSW/AAAC
Insulation(Optional): PVC/ XLPE/ TRXLPE
We can design and produce according to client's requirement
