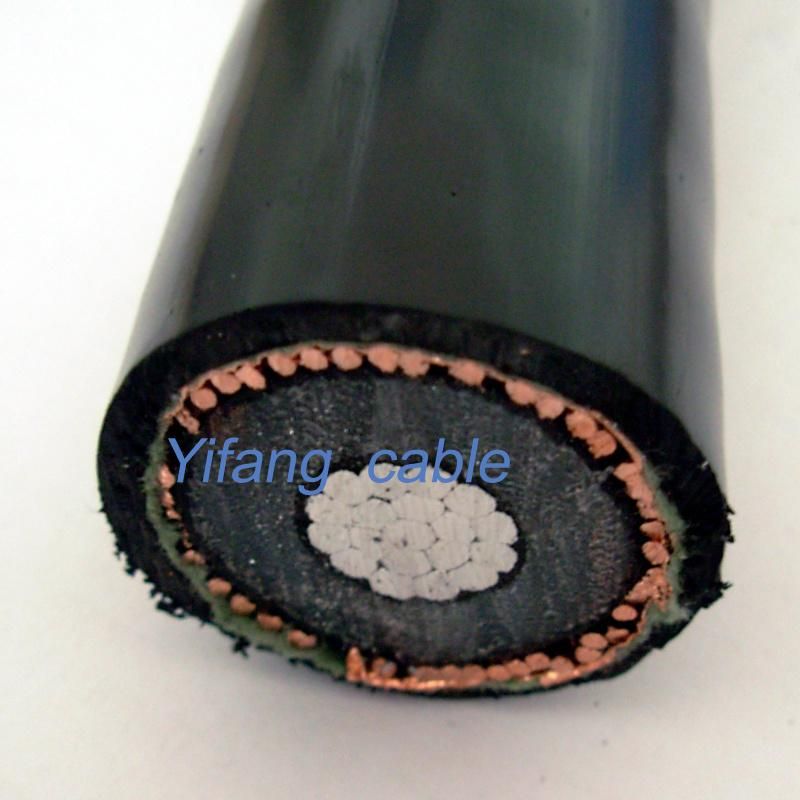

19/33kv Single Core Un-Armoured Power Cable BS7870

YIFANG ELECTRIC GROUP INC.
  • Application：Construction, Underground, Industrial, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：AC Cable
  • Insulation Material：XLPE
  • Sheath Material：Lsoh
  • Material Shape：Round Wire

Base Info

  • Model NO.：YJV
  • Wire Core Material：Bare Copper Wire
  • Certification：ISO, CCC, CE
  • Model：YJV
  • Brand：Yifang Cable
  • Order1：Flame Resistance
  • Order2：Anti-Termite
  • Order3：Oil Resistance
  • Order4：Water Blocking
  • Transport Package：Wooden Drum, Iron Wooden Drum, Iron Drum or Your R
  • Specification：ISO9001, CCC
  • Trademark：YIFANG
  • Origin：China
  • HS Code：8544460120
  • Production Capacity：500km,Month

Description

Basic Info.

Model NO. YJV Wire Core Material Bare Copper Wire Certification ISO, CCC, CE Model YJV Brand Yifang Cable Order1 Flame Resistance Order2 Anti-Termite Order3 Oil Resistance Order4 Water Blocking Transport Package Wooden Drum, Iron Wooden Drum, Iron Drum or Your R Specification ISO9001, CCC Trademark YIFANG Origin China HS Code 8544460120 Production Capacity 500km/Month

Product Description

Description

19/33kV Single Core un-armoured XLPE insulated cables

STANDARDS

International :  IEC 60502
National :  BS 7870-4.10

DESCRIPTION

Important Note: this information is for general guidance only, based on standard design options.  Exact data will vary based upon the options required, and therefore a full data sheet for the exact design should be requested prior to any order.

Voltage Rating:

  • 19/33 (36) kV

Typical Constructions:

Conductors

  • Stranded Copper or
  • Stranded Aluminium
  • Option - water swellable filler

Conductor Screen

  • SC XLPE

Insulation

  • XLPE

Insulation Screen

  •  SC XLPE
  • Option - Wrapping SC tape

Paper separation Tapes

  • Option - water swellable tapes

Copper Wire Screen

  • Number and diameter of wires dependant upon required earth fault rating
  • Option - copper equalising tapes applied helically

Sheath

  • Black MDPE
  • Option - LSOH material
  • Sheath embossed or indented with year of manufacture, size and type of conductor and voltage in accordance with design standard employed
  • Option - sequential metre marking


Product Parameters
Sizes(mm2)Overall Dia.(mm)Weight(kg/km)Rated Current(in soil,A)
1x25(Cu)26.0964157
1x35(Cu)26.81088187
1x50(Cu)28.01256220
1x70(Cu)30.01529269
1x95(Cu)31.61829320
1x120(Cu)34.02203363
1x150(Cu)35.62526407
1x185(Cu)37.42936458
1x240(Cu)40.03575530
1x300(Cu)42.44236597
1x400(Cu)46.65298580
1x500(Cu)50.06425772
1x630(Cu)53.87939873
1x800(Cu)58.29796976
