• Model NO.：A-2Y2YB2YS(H115),S(H145),S(H95)
• Material Shape：Round Wire
• Range of Application：Railway Signal Network
• Certification：ISO9001, CE, UL, CCC, RoHS
• Transport Package：Wooden Box Packing or Pallet Shipping Containers
• Specification：US $0.5-5, Meter
• Trademark：FengDa
• Origin：Tianjin, China
• HS Code：8544492100
• Production Capacity：5, 000, 000km,Year

Basic Info.

Model NO. A-2Y2YB2YS(H115)/S(H145)/S(H95) Material Shape Round Wire Range of Application Railway Signal Network Certification ISO9001, CE, UL, CCC, RoHS Transport Package Wooden Box Packing or Pallet Shipping Containers Specification US $0.5-5/ Meter Trademark FengDa Origin Tianjin, China HS Code 8544492100 Production Capacity 5, 000, 000km/Year

Product Description

Railway Signal Cable
Application: This cable is specially designed for railway signal network,suitable for direct buried and pipeline laying.

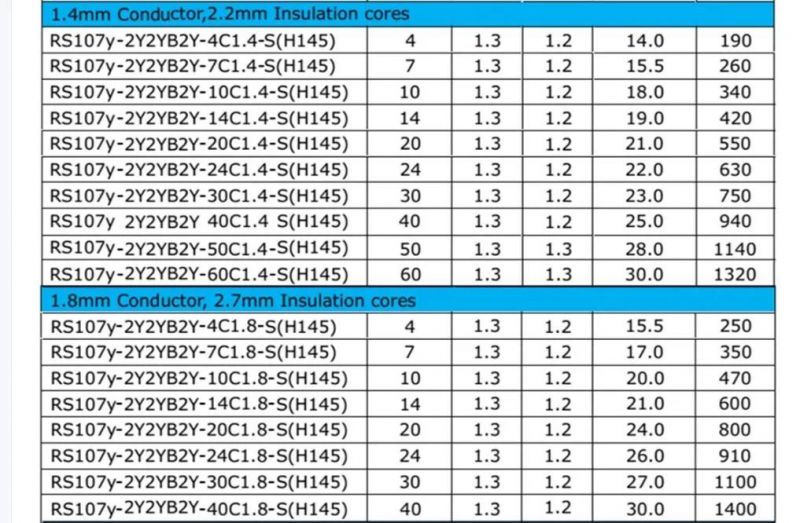

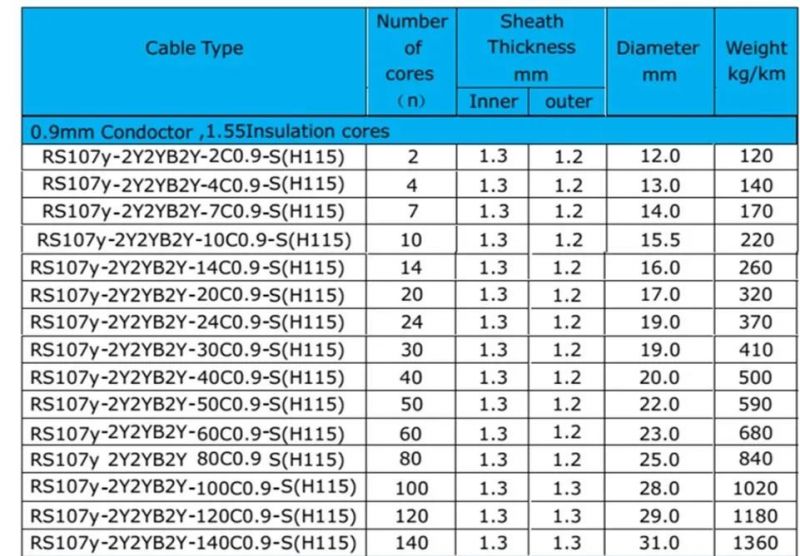

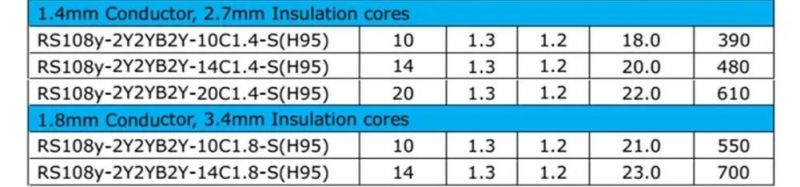

Type: A-2Y2YB2Y S (H115) / S (H145) / S (H95)
Standard: Dlk 1.013.107y / Dlk 1.013.108y / Dlk 1.013.110y

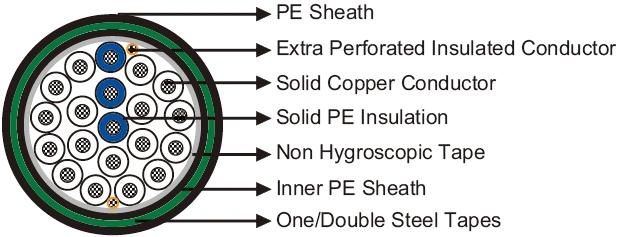

Conductor: Solid annealed copper conductor, nominal diameter 0.9 / 1.4 / 1.8 mm
Insulation: polyethylene
Inner sheath: Low-density polyethylene
Armored: Galvanized steel strip
Outer sheath: Low-density polyethylene
Electrical performance at 20 ° C
Minimum bending radius: 10Xod
Temperature range: -40 ° C to + 60 ° C (in operation)  /  -10 ° C to + 60 ° C (in installation)

Nominal conductor diameter	mm	0.9	1.4	1.8
Conductor resistance	Ω/km	28.9	11.9	7.2
Working voltage AC / DC	V	420/600	420/600	420/600
Between cores	V	2500	2500	2500
Between core and shield	V	2500	2500	2500
