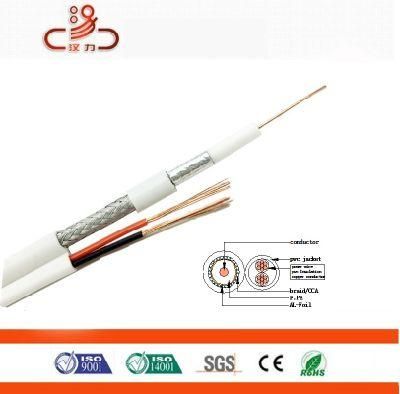

Coaxial Cable RG6 with Tri Shielding for CCTV CATV Satellite System
GHT WIRE & CABLE CO., LIMITED- Type：Insulated
- Conductor Type：Solid
- Conductor Material：Copper Clad Steel
- Sheath Material：PVC
- Insulation Material：Fpe
- Material Shape：Round Wire
Base Info
- Model NO.：RG6 with tri shielding
- Range of Application：Security System CCTV
- Certification：ISO9001, CE, CCC, RoHS
- Size01：305 Meters,Wooden Spool
- Size02：Customized
- Coaxial Cable：for CATV, CCTV or Satellite Systems
- Transport Package：Customized
- Specification：305m,roll
- Trademark：can OEM
- Origin：Guangdong, China
- HS Code：85442000
- Production Capacity：10000000m,Month
Description
CONDUCTORMATERIAL CCS Nom. Dia. 1.02mm DIELECTRIC MATERIAL Foamed PE Nom. Dia. 4.8mm SHIELD MATERIAL Al foil+64*0.12mm ALMG braiding JACKET MATERIAL PVC Nom. Dia. 6.80mm
BASIC CHARACTERISTICS OF RG6 COAXIAL CABLE
Attenuation(68F/20C)Frequency(MHz) Maximum(db/100ft) Maximum(db/100m) 5 0.58 1.9 55 1.6 5.25 187 2.85 9.35 300 3.55 11.64 450 4.4 14.43 600 5.1 16.73 750 5.65 18.54 865 6.1 20.01 1000 6.55 21.49
APPLICATION:
1. Coaxial cable for CATV,CCTV systems
2. For satellite systems

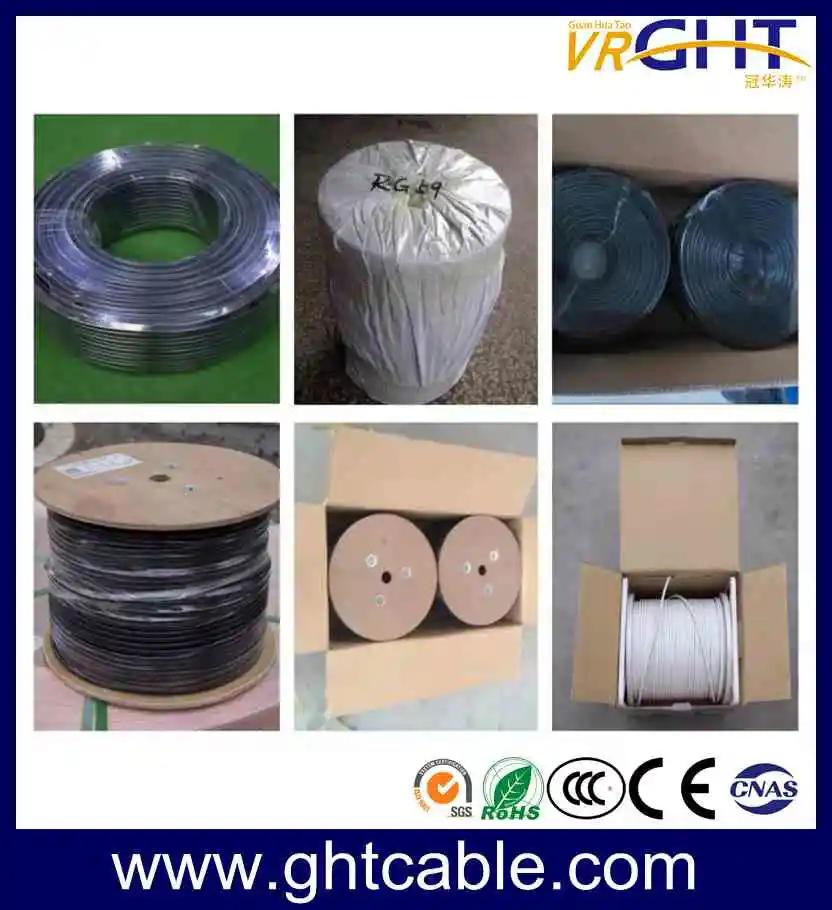

Packing:
Factory Presentation&Certification:
FAQ
Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable, HDMI cable, VGA cable, telephone cable, speaker cable and etc.
Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.
Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.
Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.
Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.
Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.
Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.
