- Model NO.:VHOV-K (PAR-POS)
- Wire Core Material:Bare Copper Wire
- Certification:ISO, CCC
- Model:YJV
- Brand:OEM
- Transport Package:in Drum or in Coil
- Specification:4**10
- Trademark:OEM
- Origin:Henan
- HS Code:8544492100
- Production Capacity:10000 M Per Day
Basic Info.
Model NO.
VHOV-K (PAR-POS)
Wire Core Material
Bare Copper Wire
Certification
ISO, CCC
Model
YJV
Brand
OEM
Transport Package
in Drum or in Coil
Specification
4**10
Trademark
OEM
Origin
Henan
HS Code
8544492100
Production Capacity
10000 M Per Day
Product Description

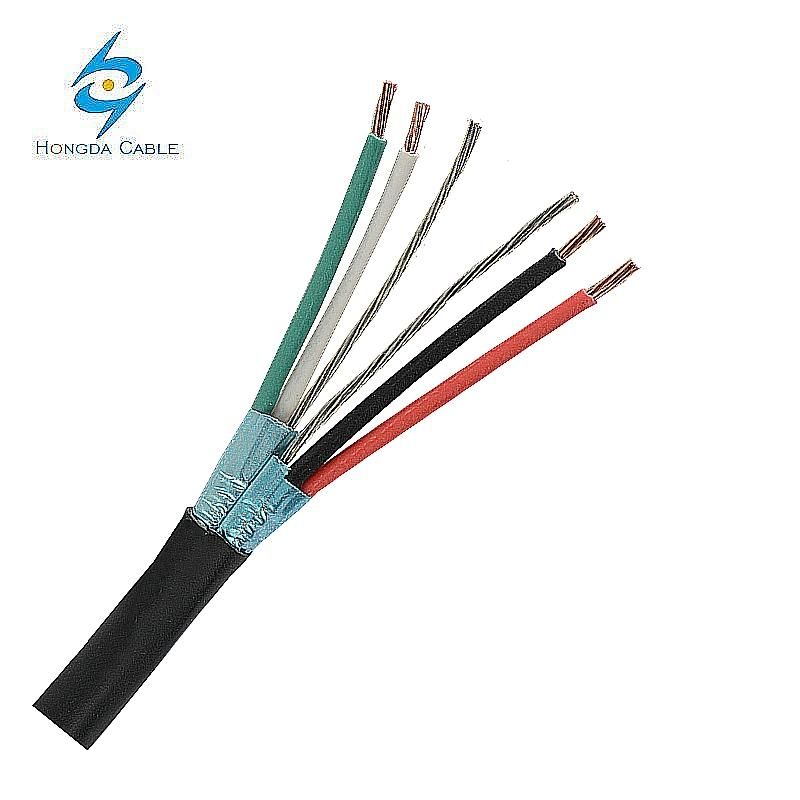

Areas of Use Usedfor communicationandinstrumentationpurposes inindustries likeoil exploration, cement,paper, steel,powergenerationas well as inintrinsically safe systems inhazardous areas likepetrochemicalplants andthermalpowerplants tomonitor measuringequipment inprocess automationapplications. HFFR types areless flammableincaseof fire, mostly selfextinguishing,havelow smokedensityandtheydonotemitpoisonous andcorrosivegassesduringfire. Armouredtypesprovide mechanical strengthandprotects thecablecoreagainstouter mechanical effects. CableConstruction Conductor StrandedAnnealedCopper (IEC/EN 60228,Class2) Insulation XLPE(EN 50290-2-29) CoreColors Pair: Black / White, NumberedTriples: Balck / White/ Red, Numbered Quad: Black / White/ Red/ Blue, Numbered Separator PETFoil IndividualScreen Al-PETFoil (with0.60 mm TinnedCopper DrainWire) Lay-up Shieldedpairs / triples /quads arestrandedinlayers Separator PETFoil OverallScreen Al-PETFoil (with7x0.30 mm TinnedCopper DrainWire) InnerSheath HalogenFreeFlame RetardantCompound(HFFR/LSZH/LSOH/FRNC) (EN 50290-2-27) Armour Round GalvanizedSteel Wire(Min. Diameter0.90 mm ±0.02 mm) OuterSheath HalogenFreeFlame RetardantCompound(HFFR /LSZH/LSOH/FRNC) (EN 50290-2-27), RAL9005- Black, RAL5015- Blue(other colorsuponrequest) ReferenceStandards BS/EN 50288-7 TechnicalProperties OperatingVoltage 500V* TestVoltage Core-Core:1000V;Core-Screen:1000V Conductor Resistance 0.50 mm²- ≤36 Ω/km;0.75 mm²- ≤24.5 Ω/km;1.00 mm²- ≤18.1 Ω/km;1.30 mm²- ≤14.2 Ω/km;1.50 mm²- ≤12.1 Ω/km;2.50 mm²- ≤7.41 Ω/km Insulation Resistance >5000 M.Ωxkm Capacitance Unbalance(800 Hz) ≤500pF/500m Capacitance(@800Hz) ≤115nF/km (Capacitancevalues may increaseby20%upto4pairs) L/R Ratio 0.50 mm²..1.00 mm²- ≤25µH/Ω;1.30 mm²..1.50 mm²- ≤40µH/Ω;2.50 mm²- ≤60 µH/Ω Temperature Range Fixed: -40°C........+90°C,Flexible: -5°C........+50°C Flame Retardancy IEC/EN 60332-1, IEC/EN 60332-3-24(CATC) Smoke Density IEC/EN 61034-1 Amountof HalogenAcidGas IEC/EN 60754-1 CorrosiveGases Measurement IEC/EN 60754-2 Oil Resistance IEC/EN 60811-404,ASTM No2oil70°C4hoursMin.Bending Radius (Fixed) 12xCable Diameter
