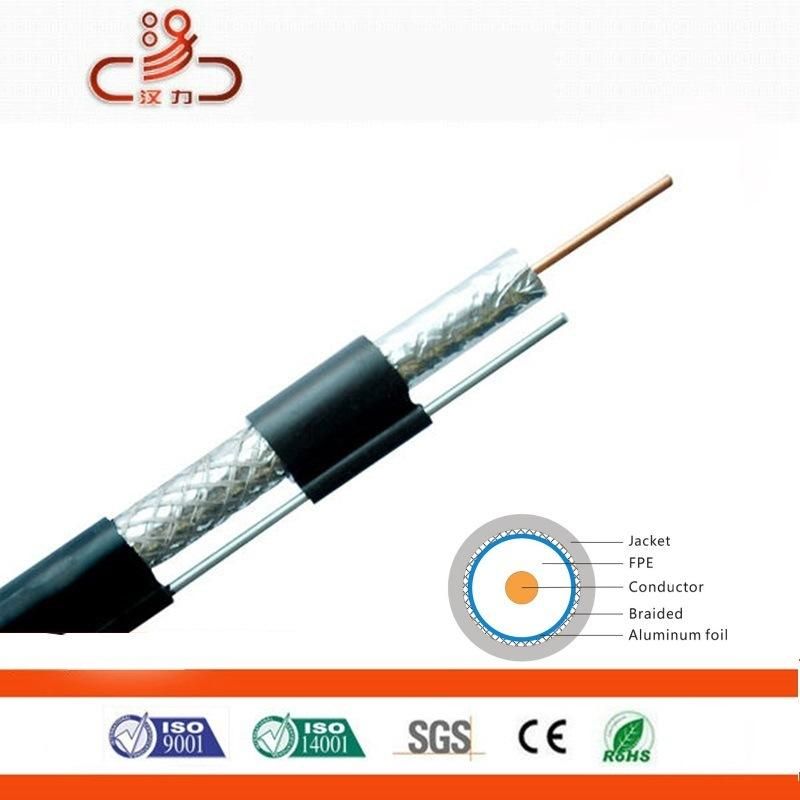

• Model NO.：Rg11 Coaxial Cable+Steel Wire
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS
• Model：Rg11 Coaxial Cable+Steel Wire
• Brand：Hanli
• Transport Package：200m,305m
• Specification：1,1.02CU+F. PE+AM+B+PVC
• Trademark：hanli
• Origin：Zhejiang
• HS Code：8544200000
• Production Capacity：2000000m,Month

Inner conductorCopper cladsteel(CCS)1.63mmDielectricLowdensity PEΦ7.2±0.2mmTape shieldAluminum foil100%Outer conductor(shield)Aluminum wire96x0.12mmShield coverage 60%SheathPVC or LSZHΦ10.3±0.18mmMessenger(optional)Galvanized steel1.83mm/2.77mm

Electrical & Mechanical CharacteristicsImpedance75±5OhmNominal capacitance53pF/mVelocity of propagation66%Insulation resistance>2000Mohm.KmInner conductor resistance13.5Ohm/KmOuter conductor resistance24.1Ohm/KmOperating temperature range-30°C-+70°CCable weight(approx.)116.4-140.4Kg/Km

AttenuationFrequency(MHz)Attenuation(dB/100m)Attenuation(dB/100ft)503.10.951004.21.282506.82.073007.52.293507.92.414008.52.594509.12.775009.52.955010.13.0860010.53.275012.13.6986013.24.02100014.34.36145018.65.672050237.01
