16mm2 Stranded XLPE Solidal Aluminium PVC Split Concentric Cable

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Overhead, Industrial, Telecommunication
  • Voltage：Low and Medium Voltage Cable
  • Current：DC Cable
  • Insulation Material：XLPE
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：solidal cable
  • Wire Core Material：Bare Copper Wire
  • Certification：ISO, CCC
  • Model：YJV
  • Brand：Hongda
  • Use：Ovearhead, Outdoor
  • Transport Package：Wooden Drum
  • Specification：6mm2, 10mm2, 16mm2, 25mm2
  • Trademark：Hongda Cable
  • Origin：Made in China
  • HS Code：8544492100
  • Production Capacity：600km,Month

Description

ConductorStranded (Class 2) plain annealed copper or solid (Class 1) aluminiumInsulationCross-linked Polyethylene (XLPE)Bedding (for three phase cables)Polyvinyl Chloride (PVC) or synthetic tape beddingConcentric neutral / earth conductorSingle layer of plain annealed copper wiresOutersheathPVC Type DMV 23


Part 3, section 3.12 covers the low smoke zero halogen (LSZH) variant of this cable.

BS7870 PART 3 SECTION 3.20

BS7870 Part 3, section 3.20 covers PVC insulated split concentric cables with a voltage rating of 0.6/1kV.

ConductorStranded (Class 2) plain annealed copper or solid (Class 1) aluminiumInsulationPVC Type TI 1Concentric neutral / earth conductorPlain annealed copper wiresBindersSynthetic binder tape(s)OutersheathPVC Type TM 1

Part 3 section 3.22 covers the LSZH variant of this cable.

BS7870 PART 4 SECTION 4.10

BS7870 Part 4, section 4.10 covers single core cables for distribution utilities with extruded insulation up to and including 11kV and 33kV.


ConductorStranded (Class 2) plain annealed copper or aluminium, or solid (Class 1) aluminiumInsulationXLPE or Ethylene Propylene Rubber (EPR)

Insulation screen

Cross-linked semi-conducting compoundMetallic screenCopper wiresOutersheathMedium-density Polyethylene (MDPE)Sheath colour - 11kVRedSheath colour - 33kVBlack
Voltage: 0.6/1kv.
Operating temperature: Maximum 90°C, minimum -30°C

Common Used Colours:
For insulation: White, Black and Red.
For external jacket: Black
16mm2 Stranded XLPE Solidal Aluminium PVC Split Concentric Cable

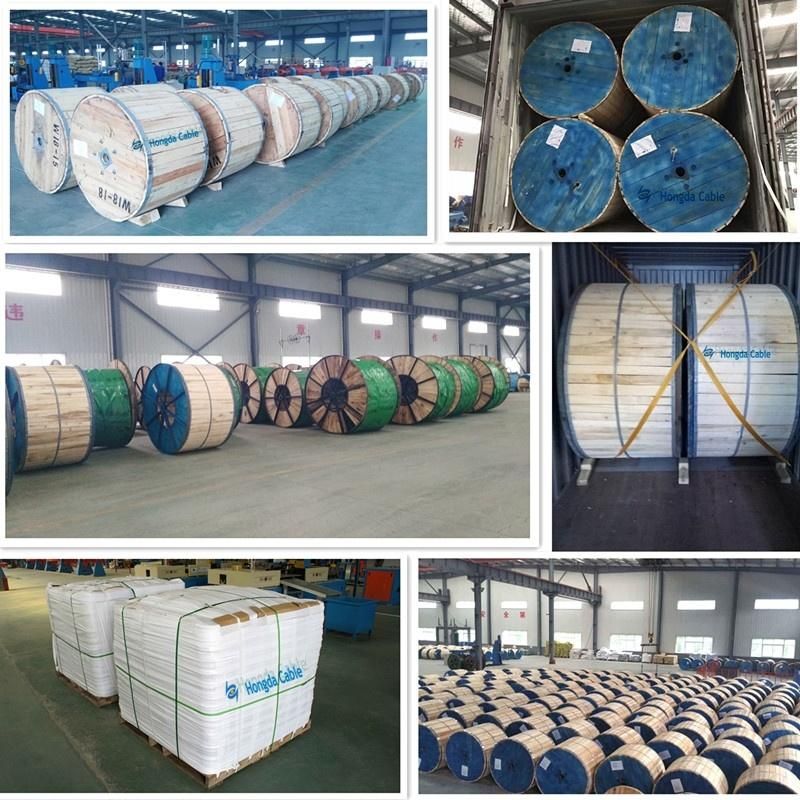

PACKAGING:
Wooden Drum
Or length to the client's requirement.

CONCENTRIC & SPLIT CONCENTRIC CABLE SELECTION
Please contact us for technical support with the right cable selection for your power distribution projects and to discuss your maintenance or project specific requirements. We provide tailored solutions for this cable range which include storage, cutting to length, and 2 days collection as standard.
