20kv 1 2 3 4 Core Overhead Line ABC Cable ABC Aerial Bundle Cable

YIFANG ELECTRIC GROUP INC.
  • Application：Construction, Overhead, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：DC & AC
  • Insulation Material：XLPE
  • Sheath Material：XLPE
  • Material Shape：Round Wire

Base Info

  • Model NO.：abc
  • Wire Core Material：Aluminum
  • Certification：ISO, CCC, CE
  • Model：Sac
  • Brand：Yifang
  • Color：as Your Requirement
  • Conductor Material：Cu or Al
  • Size：Above 35mm2
  • Transport Package：Steel Wooden Drum
  • Specification：1.1, 2.2
  • Trademark：Yifang
  • Origin：Henan, China
  • HS Code：8544492100
  • Production Capacity：5000000m Per Month

Description

Basic Info.

Model NO. abc Wire Core Material Aluminum Certification ISO, CCC, CE Model Sac Brand Yifang Color as Your Requirement Conductor Material Cu or Al Size Above 35mm2 Transport Package Steel Wooden Drum Specification 1.1, 2.2 Trademark Yifang Origin Henan, China HS Code 8544492100 Production Capacity 5000000m Per Month

Product Description

15KV SAC Cable



1. Application of Service Drop Cable:
Service Drop Cable(ABC CABLE) are mainly used for electric power tranmission, rebuiding of urban and forest regions. They can improves safety and reliance of electrified wire netting.

2. Type of Service Drop Cable:
Service Drop Cable(ABC CABLE) covers mainly three types:
Duplex Service Drop

Triplex Service Drop
Quadruplex service drop


The cable can be produced whose construction is phase conductor with neutral bare conductor or phase conductor with insulated neutral conductor, etc. And we can still produce the cables according to the request of customers.

3. Detaild Introduction of Service Drop Cable

3.1 Duplex Service Drop

Applications
To supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75 maximum.

Construction
Concentic strand or cmpressed 1350-H19 conductor, polyethylene or cross linked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy nertral messenger.

3.2 Triplex Service Drop

Applications
To supply power from the ulility`s lines to the consumer`s weatherhead. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation.

Construction
Concentic strand or cmpressed 1350-H19 conductor, polyethylene or cross linked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy nertral messenger.

3.3 Quadruplex Service Drop

Applications
Used to supply 3 phase power, usually from a pole-mounted transformer to the use`s servic head where connection to the service entance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperature not to exceed 75 for PE insulated conductors or 90 for XLPE insulated conductors.

Construction
Conductors are concentrically standed, compressed 1350-H19 aluminium. Insulated and Sheath with either polyethylene or XLPE. Neutral messengers aer concentrically stranded 6210 AAAC, AAC or ACSR.

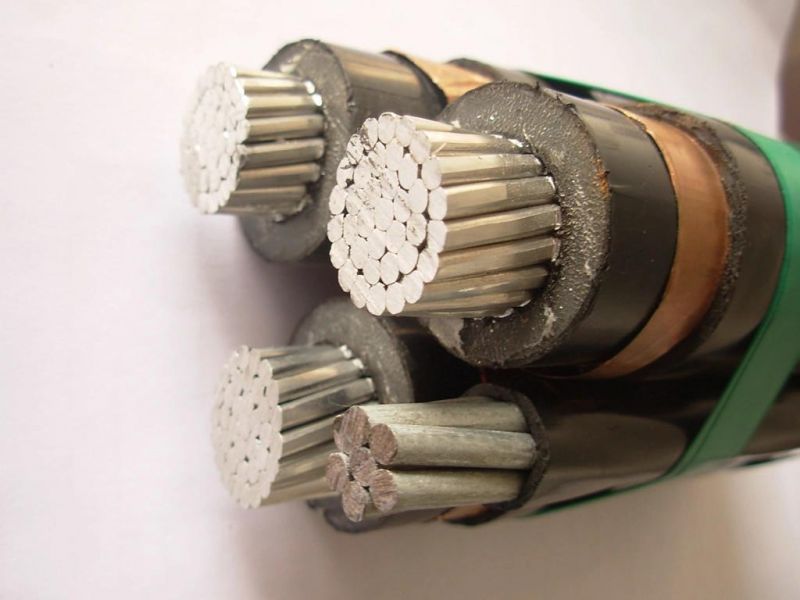

20kv 1 2 3 4 Core Overhead Line ABC Cable ABC Aerial Bundle Cable

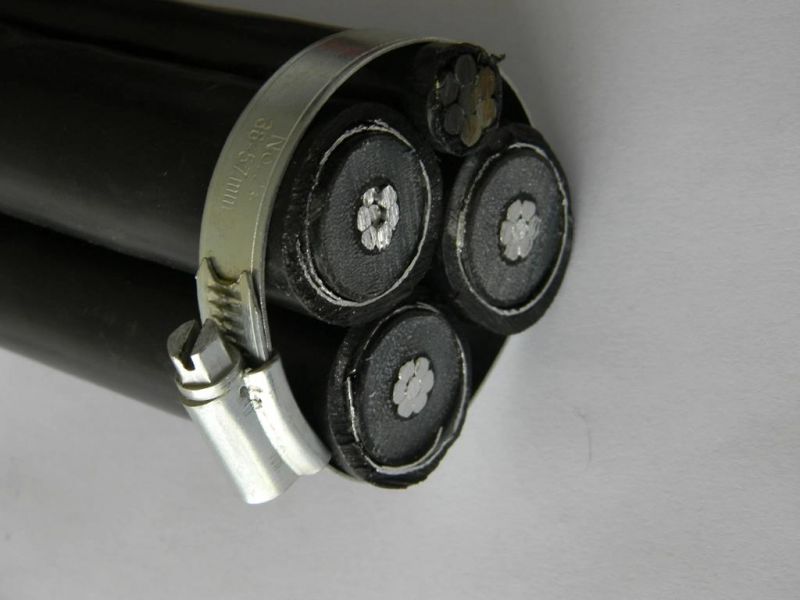

20kv 1 2 3 4 Core Overhead Line ABC Cable ABC Aerial Bundle Cable

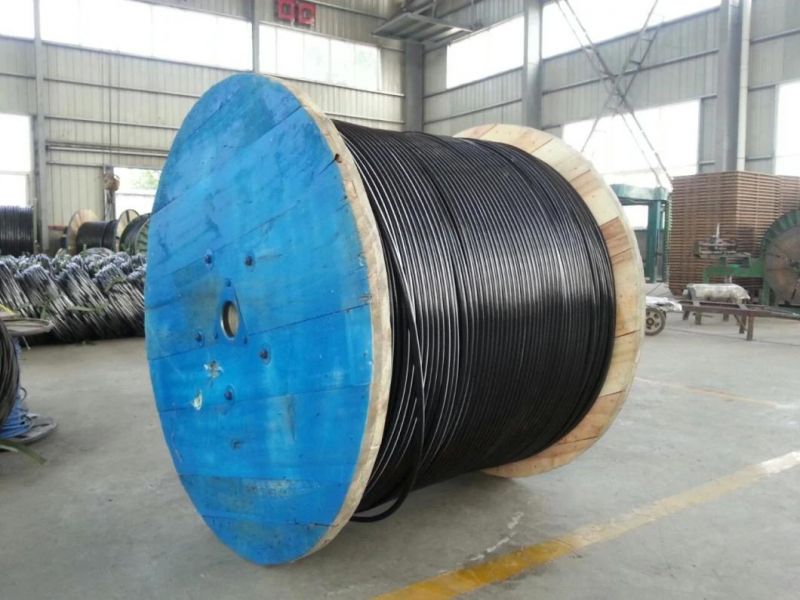

20kv 1 2 3 4 Core Overhead Line ABC Cable ABC Aerial Bundle Cable

Our company

Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.

Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.

Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.

20kv 1 2 3 4 Core Overhead Line ABC Cable ABC Aerial Bundle Cable
Our certificate

20kv 1 2 3 4 Core Overhead Line ABC Cable ABC Aerial Bundle Cable
FAQ

1.Q:Are you a factory or trading company?
 A: Manufacturing base in Henan ,China, with more than 500 workers.

2.Q:How can I visit there?
 A: Sure,If you need,we will arrange the driver to pick you up.

3.Q:How can I get some samples?
 A: Contact me on below,Determin sample and address for shipping.


4.Q:Have you ever supplied cables to our country?
 A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.

5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.

6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.

7.Q:How long is your delivery time?
 A: According to your order's quantity.Usually our lead time is 3 - 20 working days.
