• Model NO.：PND100-630
• Transport Package：Industry Packing
• Specification：GB4004-83, JB,T7600.3-94 and DlN46395
• Trademark：ONEREEL
• Origin：Ningbo China
• Production Capacity：1000PCS,Week

Basic Info.

Model NO. PND100-630 Transport Package Industry Packing Specification GB4004-83, JB/T7600.3-94 and DlN46395 Trademark ONEREEL Origin Ningbo China Production Capacity 1000PCS/Week

Product Description

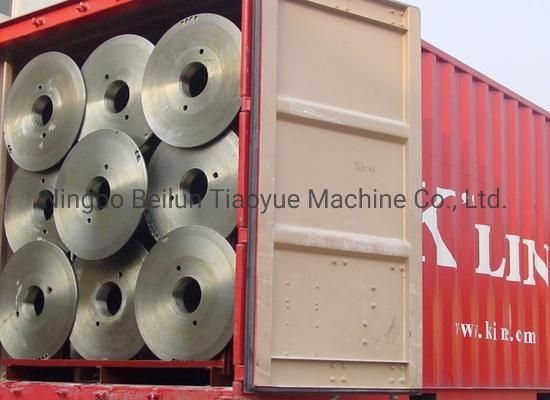

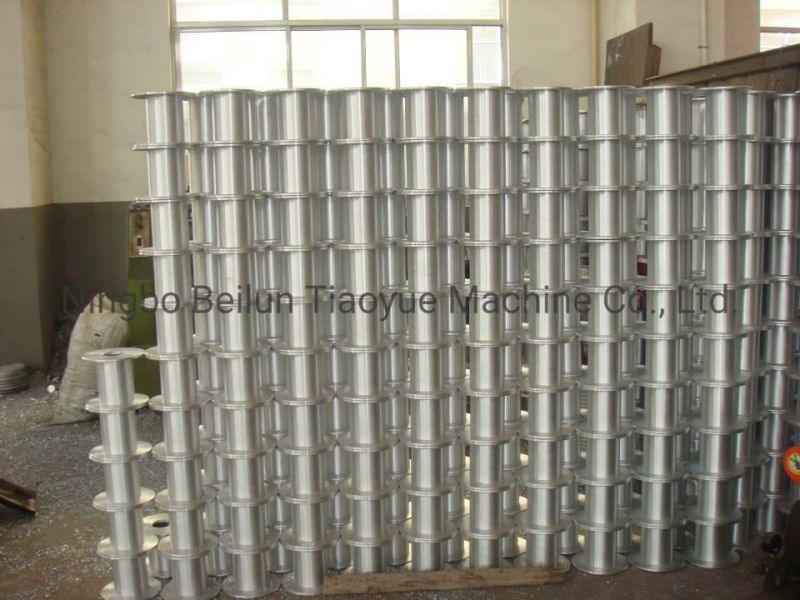

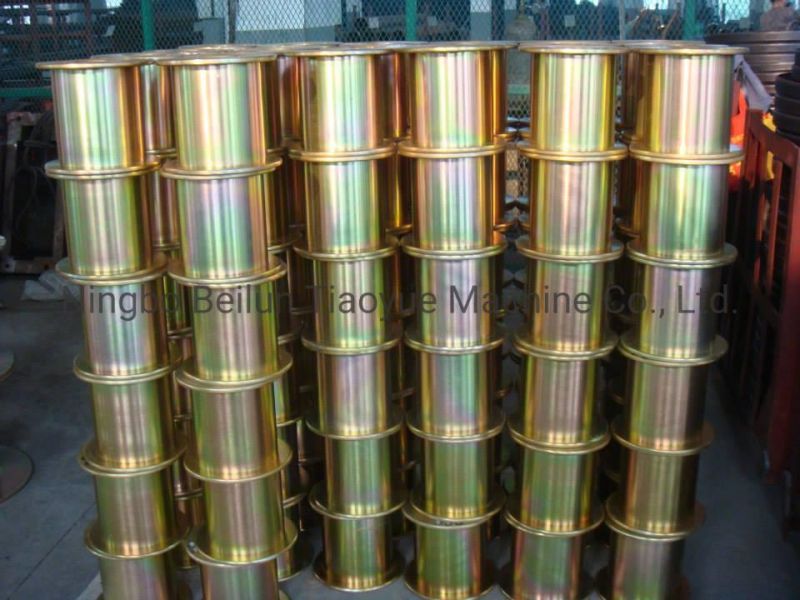

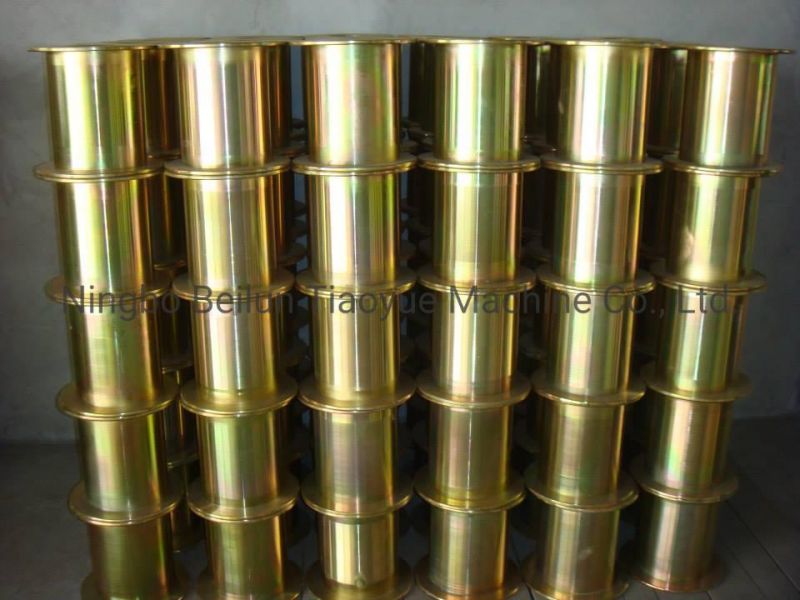

Panel High Speed Spools for Machine Operation

In accordance with GB4004-83, JB/T7600.3-94 and DlN46395 standards, the product is made of common carbon steel Q235 thick plate through assembly and welding, and machine finishing. The product has high rigidity of bobbin and high precision. Through dynamic test, the product has stable operation at high speed, and can be used for high-speed drawing-wire machine and wire stranding machine.

Serial Number	Specification Model	Lateral Plate Diameter D1	Major Diameter D2	Axle Hole Diameter D4	Carrying Hole Diameter D5	Center Distance E of Axle Hole and Carrying Hole	External Width L1	Internal Width L2	Remarks
1	285	285	130 165	127	18	180	260	240	Thin  Extend  Shaft
2	300	300	130 165	127	18	180	270	250	Thin  Extend  Shaft
3	335	335	165 217	127	18	180	270	250	Thin  Extend  Shaft
4	400	400	217 270	125 127	18	100	270	250	Middle  Extend  Shaft
5	500	500	217 270	125 127	22	130	320	300	Middle  Extend  Shaft
6	630	630	350 420	125 127	28	200	430	400	Twist  Extend  Shaft
7	300	300	130 165	56	8	100	290	270	Twist  Extend  Shaft
8	335	335	130 165	56	8	100	290	270	Twist  Extend  Shaft
9	400	400	165 217	70	16	170	270	250	Extend  Shaft
10	500	500	217 270	80	16	100	320	300	Extend  Shaft
11	560	560	270 295	80	18	120	355	329	Extend  Shaft
12	610	610	270 320	80	22	170	360	336	Extend  Shaft
13	630	630	355 450	125 127	28	200	360	336	Extend  Shaft
14	710	710	400 500	125 127	28	100	530	450	Extend  Shaft
15	800	800	450 560	125 127	28	100	600	500	Extend  Shaft
