• Model NO.：UL1015
• Certification：ISO9001, UL, RoHS
• Brand：A Line
• Materials：PVC
• Conductor：Copper
• Environmental Standard：RoHS
• Reference Standard：UL758 UL1581
• Color：as Per Customer′s Requirement
• Length of Cable：as Per Customer′s Requirement
• Testing：Passes UL VW-1 Vertical Flame Test
• Rated Voltage：600V
• Transport Package：in Export Carton
• Specification：RoHS
• Trademark：A-Line
• Origin：China
• HS Code：3320962150
• Production Capacity：300000

ConductorInsulationMaximum
Resistance
At 20ºC
Ω/kmPackingSpec
AWGConductor
construction
No./φmmDiameter
(mm)Nominal
thickness
(mm)Nominal outer
diameter
(mm)M/Coils307/0.1020.30.801.90381610287/0.1270.380.812.00239610267/0.160.480.812.101503052411/0.160.610.822.2594.23052217/0.160.760.822.4059.43052026/0.160.940.812.5536.73051841/0.161.180.812.8023.23051626/0.2541.490.813.1014.62001441/0.2541.880.813.508.962001265/0.2542.360.824.005.6420010105/0.2543.000.854.703.546100
HOT PRODUCTS


CERTIFICATE

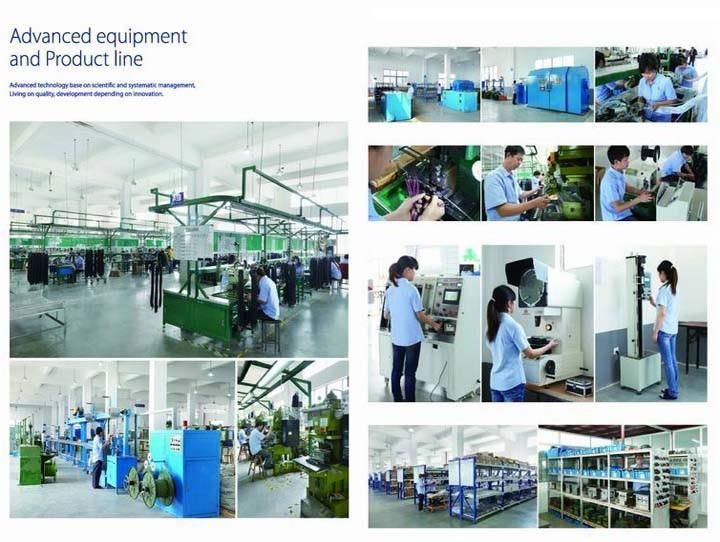

FACTORY SHOW
