625 Trunk Cable with Messenger Aluminum Tube

ZHEJIANG LIBO INDUSTRIAL CO., LTD.
  • Application：Local Communication Cable, Coaxial Cable, LAN Cable, Fiber Optic Cable, Long Distance Symmetric Cable, RF Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PE
  • Type：Cat 6
  • Material Shape：Hollow Line
  • Conductor Type：Stranded

Base Info

  • Model NO.：Aluminum Tube Trunk Cable PIII 625 JCA
  • Wire Core Material：Steel
  • Certification：CE, ISO, RoHS, CCC, UL
  • Model：MHYV-xx
  • Brand：FUJI
  • High Quality PE Outer Jacket：Piii 625 Jca
  • with Messenger：Aluminum Tube
  • Transport Package：Plate
  • Specification：CE, ROSHS, SGS
  • Trademark：Libo cable
  • Origin：Zhejiang, China
  • HS Code：854420
  • Production Capacity：3000kms,Month

Description


Physical dimensions
component
inches
mm
Inner conductor
0.137
3.48
diameter over dielectric
0.565
14.35
diameter over aluminum tube
0.625
15.88
Outer conductor thickness
0.030
0.76
Diameter over jacket
0.685
17.40
Jacket wall thickness
0.030
0.760

Packing:

Buyer's labels and cartons OEM/ODM desgin service is available.

Mechanical performance:
Minimum breaking strength of messenger: 1800lbs(816kg)
Minimum bending radius: 7.0 inches/17.8cm
Maximum pulling tension: 475lbs /216kgf


Electrical characteristics:
Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)
Impedance: 75±2 ohms
Velocity of propagation: 87% nominal
Normal DC loop resistance @68OF: 1.0 Ohms/100ft(3.51 ohms/km)

Attenuation@ 68OF(20oC):
@Frequency MHZ
dB/100ft. (MAX.)
dB/100 meters(MAX.)
5MHZ
0.13
0.43
55MHZ
0.46
1.51
83MHZ
0.57
1.87
211MHZ
0.92
3.02
250MHZ
1
3.28
300MHZ
1.08
3.54
350MHZ
1.18
3.87
400MHZ
1.27
4.17
450MHZ
1.35
4.43
500MHZ
1.43
4.69
550MHZ
1.50
4.92
600MHZ
1.58
5.18
750MHZ
1.78
5.84
865MHZ
1.93
6.33
1000MHZ
2.07
6.79

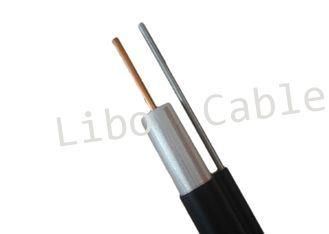

 625 Trunk Cable with Messenger Aluminum Tube
Competitive Advantage:
The trunk cable has excellent electrical performance and outstanding transmission reliabilities. Frequency is from 5MHz to 1000MHz, it provides reliable transmission and anti-interference effectiveness for duplex transmission network.
To withstand rigors of environmental elements, jacketed burial cable or jacketed flooded cable isavailable; asphalt is added between outer conductor and jacket to prevent damages from moisture and flood.
Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
Libo cable developed the world's first conforming seamless aluminum tube trunk cable.
Libo cable has a stable workforce and engineering team, the trunk cable is with short lead-time and stable high quality.
Libo cable is equipped with a Provincial-level Research and Development Center.
