6.35/11kV, XLPE Insulated, 3X120+1X70 Sq. mm Aerial Bundled Cable (ABC)

Jiangsu Grand Cable Co., Ltd.
  • Application：Construction, Overhead, Underground, Power Station
  • Voltage：High Voltage Cable
  • Current：AC Cable
  • Insulation Material：XLPE
  • Sheath Material：N,a
  • Material Shape：Round Wire

Base Info

  • Model NO.：ABC
  • Wire Core Material：Aluminum
  • Certification：ISO, CCC, CE
  • Model：ABC
  • Brand：Grandcable
  • Transport Package：Fumigated Drum
  • Trademark：Grandcable
  • Origin：Jiangsu, China
  • HS Code：8544601200
  • Production Capacity：78000 Km , Year

Description

Nominal Voltage rating, Uo/U6/10 KVMaximum admissible continuous working voltage12 kVMaximum D.C resistance at 20ºC0.253 Ω/km
Single CoreNominal Cross sectional area of phase conductor120 mm²Diameter of phase conductor12.5 ~ 13.5 mmStranding37/2.05 or 19/2.95 mmThickness of Insulation3.4 mmDiameter over insualtion, approximately23 mmNominal cross section area of screen16 mm²Thickness of over sheath2.3 mmOverall diameter, approximately27 mm
Suspension UnitGalvanized Steel rope70 mm²Nominal cross sectional area of rope7/3.57 mmThickness of covering1.0 mmOverall diameter of rope12.5 mm
Bundled
Three cores stranded around suspension unitDiameter of stranded bundle, approximately64 mmTotal weight approximately3000 kg/km

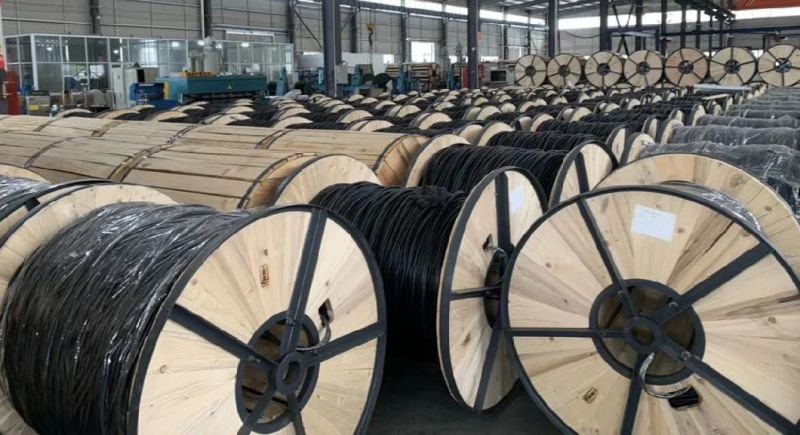

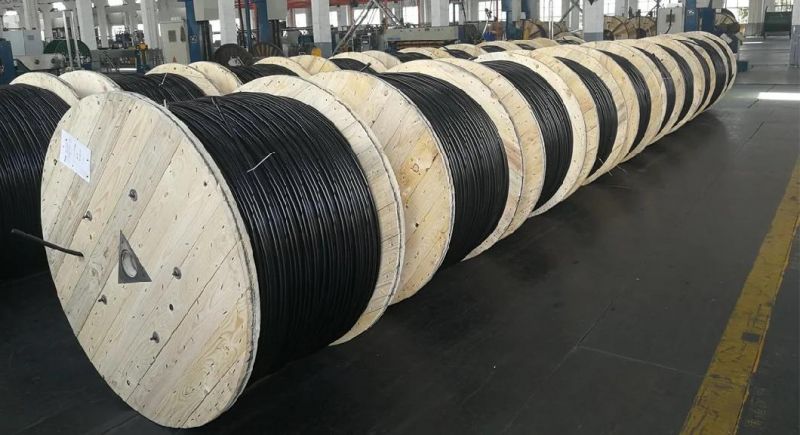

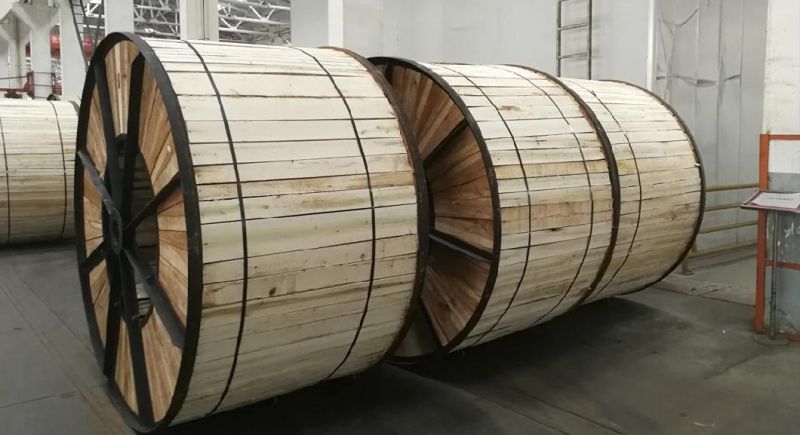

Packaging Photos:6.35/11kV, XLPE Insulated, 3X120+1X70 Sq. mm Aerial Bundled Cable (ABC)6.35/11kV, XLPE Insulated, 3X120+1X70 Sq. mm Aerial Bundled Cable (ABC)6.35/11kV, XLPE Insulated, 3X120+1X70 Sq. mm Aerial Bundled Cable (ABC)

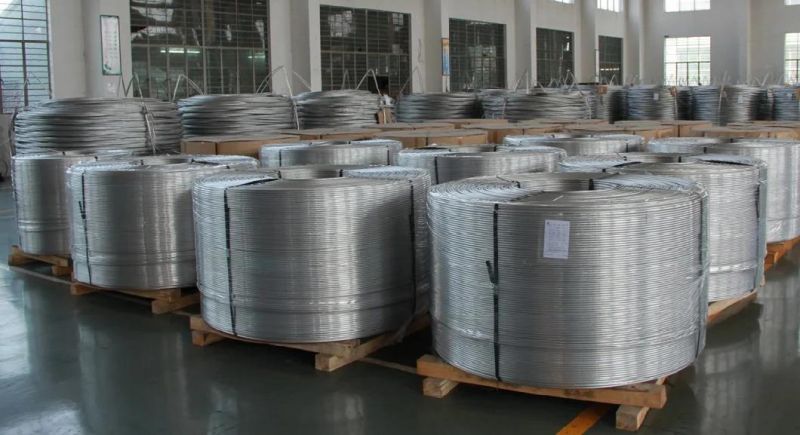

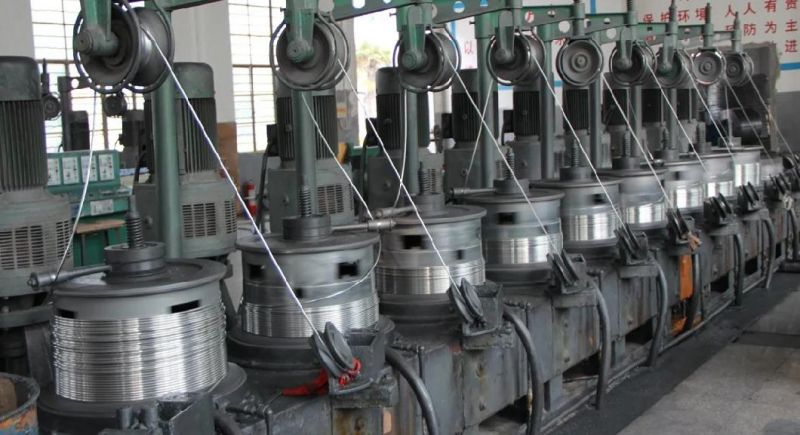

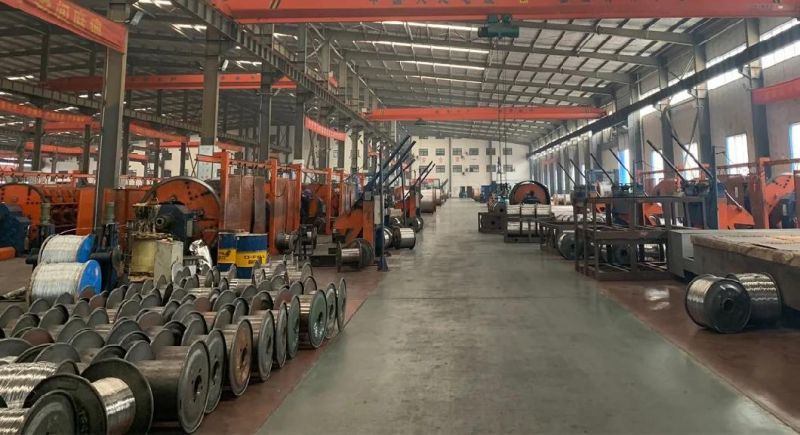

Workshop View:6.35/11kV, XLPE Insulated, 3X120+1X70 Sq. mm Aerial Bundled Cable (ABC)6.35/11kV, XLPE Insulated, 3X120+1X70 Sq. mm Aerial Bundled Cable (ABC)6.35/11kV, XLPE Insulated, 3X120+1X70 Sq. mm Aerial Bundled Cable (ABC)
About us:
Jiangsu Grand Cable Co., Ltd. was founded in 2002 with a registered capital of 308.88 million CNY(equivalent to 44.13 million USD). The company is located at Section B, Guanlin Industrial ConcentratedArea, Yixing, Wuxi City, Jiangsu 214251, P.R. China, covering an area of 130,000 squaremeters .It owns total assets of 100 million CNY and more than 500 staff members. The annualproduction capacity reaches 2.5 billion CNY .It is one of key enterprises of China Wire & Cable Industry, the National High-Tech Enterprises, the Innovation and Development Pilot Enterprises of Jiangsu Province, the Private Technology Enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-Grade Credit Enterprise. We have passed ISO9001 Quality System,ISO14001 Environment Management System Certificate and OHSAS 18001 Occupational Health and Safety Management System Certificate.

With more than 300 sets of first-class domestic and imported manufacture and test equipment,Grand Cable can manufacture ten thousand specifications, including Bare Conductors, Earthing Materials, Electric Cables, Solar Cables, Overhead/Aerial Cables, Control Cables, Instrumentation Cables, Power Cables(LV/MV/EHV), Special Cables.

FAQ:

Q:  How long does it take get my inquiry replied?

A:  Mostly the inquiry will be replied within 12 hours. And the quote will be sent to you in 1-3 days. It depends on the technical parameters and requirements of the cable. We will give you a reasonable and accurate quote.

Q:  Can I get samples before placing the order?

A:  You will get a sample for free if we have the storage of that cable.

Q:  What's the MOQ of your product?

A:  The MOQ of our most product is 1000 meters. But if there's any exceptional situation, we can make some negotiations.


Fore More Information, Please do feel free to contact us!
