Stranding Loose Tube Armored Submarine Cable 6 Core Underground Optical Fiber Cable GYTA33 Submarine Cable Price
Zhuhai Surelink Communication Cable Co., Ltd.- Application：Communication
- Type：Single-mode Fiber
- Connection Structure：SC
- Material Shape：Round Wire
- Allowed Lateral Pressure：>1000(N,100mm)
- Allowed Tensile Strength：1000N<10000N
Base Info
- Model NO.：GYTA33
- Core：Multicore
- Certification：RoHS, CE, ISO9001, VDE, CCC
- Brand：Surelink
- Sheath Material：PE
- Fiber Mode：Single Mode and Multi Mode
- The Certification：Ce,RoHS,ISO9001,Anatel
- Jacket：PE
- OEM：Available
- Fiber Type：G652D
- Loose Tube：Loose Tube Stranded.Sz Stranged ,PBT Material
- Transport Package：Wooden Drum
- Trademark：SURELINK
- Origin：China
- Production Capacity：30000km,Month
Description
≤ 0.35 dB/km
≤ 0.35 dB/km
≤ 0.21 dB/km
≤ 0.30 dB/km
@ 1288 ~ 1339 nm
@ 1271 ~ 1360 nm
@ 1550 nm
@ 1625 nm
≤3.5 ps/(nm. km)
≤5.3 ps/(nm. km)
≤18 ps/(nm. km)
≤22 ps/(nm. km)
0ºC~ +70ºC @ 1310 & 1550nm
Cable bending radius: 10 x cable diameter (static)
15 x cable diameter (dynamic)
Application temperature range
Main mechanical & environmental performance test
IEC 794-1-E1
- Load: 3,000N
- Length of cable under load:50 m
-Load time:≥1min.
- No fiber break and no sheath damage.
IEC 794-1-E3
- Load time: ≥1min.
- No fiber break and no sheath damage.
IEC 794-1-E4
- Points of impact: 5
- Times of per point: 5
- Impact energy: 10 N.m
- Radius of hammer head: 12.5mm
- Impact rate: 2 sec/cycle
- No fiber break and no sheath damage.
IEC 794-1-E6
- Bending radius: 20 x cable diameter
- Load: 250 N
- Flexing rate: 3 sec/cycle
- No. of cycle: 30
- No fiber break and no sheath damage.
Water Penetration
Test
IEC 794-1-F5B
- Sample length: 3 m
- Test time: 24 hours
opposite end of cable.
Temperature
Cycling Test
IEC 794-1-F1
- Time per each step: 24 hrs
- Number of cycle: 2
- No fiber break and no sheath damage.
IEC 794-1-E14
- Temp: 70°C ± 2°C
- Time: 24 hours
Packing
Each single cable length been wound on an iron stand-wooden composite or pure wooden drum.
Standard drum length is 2000m ±2%, or it can be delivered as customer requirement but not longer
than 6000m with a tolerance.
Covered by plastic buffer sheet.
Sealed by strong wooden battens.
At least 1m of cable inner end should be reserved for testing.

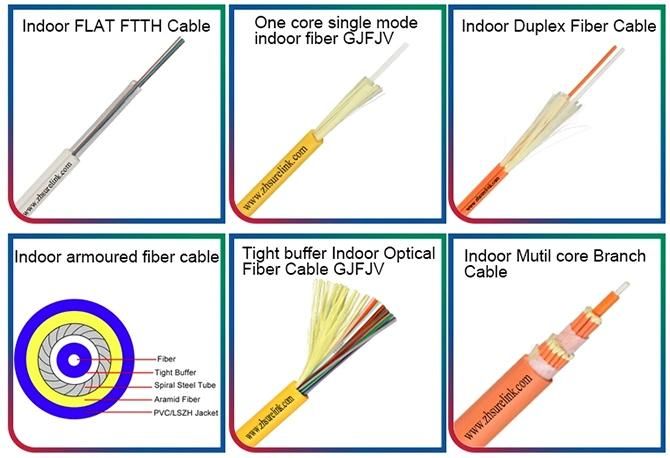

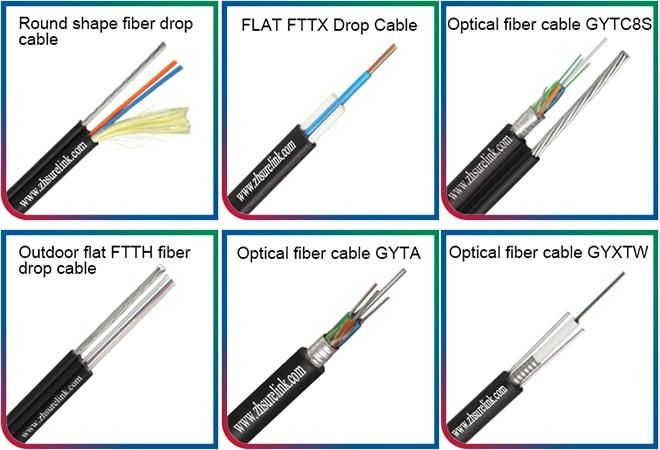

| Related Hot Models |
| Manufacturer Introduction |
Zhuhai Surelink Communication Cable Co.,Ltd is one of the leading manufacturer in the cables and telecom accessories. We have more than 20 years experience in this line.Our factory has over twenty production lines and 300 employees.
Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give best service to our clients and the quality guarantee in every order.
Our products have been widely installed in Telecom companies and many distributors around the world. We export to more than 70 countries and our annual revenue is more than hundreds of million USD.
We have established a close relationship with many companies around the world and we sincerely look forward to woking with all clients from all over the world.
OEM and ODM order highly welcome !

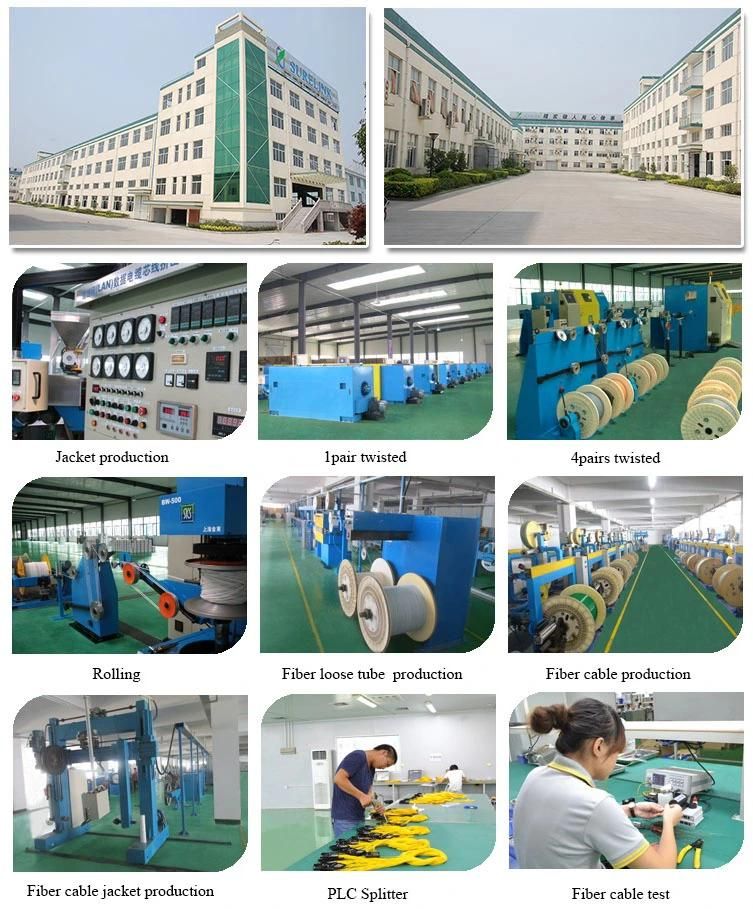

| Workshop and Company Show |

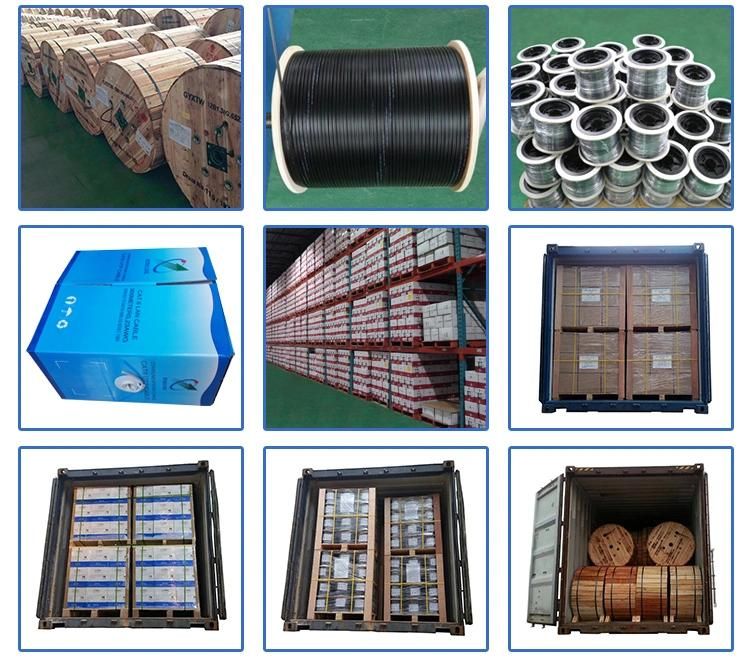

| Package and Delivery |
| Payment and Shipping |
Payment
We usually use T/T
T/T deposit before production and balance when shipment.
Payment terms: Western Union, Escrow, Paypal, T/T ,L/C
Shipping
If the quantity of the order is not very big, we usually send by express delivery,such as TNT,DHL,UPS,FEDEX or EMS.
For big order,we will ship the goods by air or by sea.
