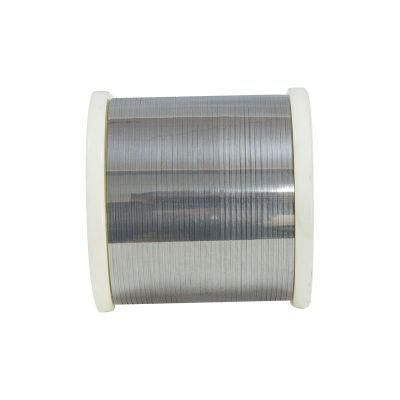

• Model NO.：0.08mm*2.2mm
• Transport Package：Platter
• Specification：0.08mm*2.2mm
• Trademark：General Clad
• Origin：China
• Production Capacity：2000 Tons,Month

Base material copper:

• In accordance with EU-standard: DIN EN 13602 (Cu-ETP, Cu-ETP1, Cu-Of, Cu-Of1)
• In accordance with US-standard: ASTM B 224 - 80
• Available in different strength classes according to DIN EN 13599

Optional coating on the base material:

• Tin (Sn),
• Silver (Ag),
• Nickel (Ni),
• and others on request

Dimensions:

• Thickness from 0.017 to 1.200 mm
• Width from 0.200 to 24.000 mm*

    *> 6.000 mm width made of cut strip, re-rolled

Designs:

• Additional application-optimized strengths to your specifications available
• Edge shape: Milled round, cut

Features:

• Geometrical and mechanical values are reviewed and documented according to your requirements
• Tightest tolerances in terms of thickness and width
• Resistance measurement to defined specifications
• Manufactured to your customized specifications

Applications:

• Fuse wire or fusible conductor for safety fuses
• Welding wire
• Connecting wire
• Wire connector (PIN)
• Shielding wire for high-frequency cable (HF cable)
