• Model NO.：JX-GG
• Material Shape：Round Wire
• Range of Application：Heating Environment, Oven, Equipments.
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE, CSA
• Brand：Fongming
• Name：Thermocouple Wire Cable
• MOQ：1000 Meters
• Test：Electric Spark Testing
• Model：Jx-G-Gtype
• Sample：1 Meter Free, 3 Days
• Customize：Available
• Lead Time：7 Days
• Size：2*26-2*14AWG
• Conductor：Fe, Cu-Ni
• Insulation：Fiberglass Braid and Silicone Resin Coating
• Jacket：Fiberglass Braid and Silicone Resin Coating
• Transport Package：Carton & Pallet
• Specification：2*26AWG, 2*24AWG, 2*22AWG, 2*20AWG, 2*18AWG,2*16,2
• Trademark：FONGMING
• Origin：Jiangsu Province, China.
• HS Code：8544492100
• Production Capacity：100000000m Per Year

Basic Info.

Model NO. JX-GG Material Shape Round Wire Range of Application Heating Environment, Oven, Equipments. Certification ISO9001, CE, UL, CCC, RoHS, VDE, CSA Brand Fongming Name Thermocouple Wire Cable MOQ 1000 Meters Test Electric Spark Testing Model Jx-G-Gtype Sample 1 Meter Free, 3 Days Customize Available Lead Time 7 Days Size 2*26-2*14AWG Conductor Fe, Cu-Ni Insulation Fiberglass Braid and Silicone Resin Coating Jacket Fiberglass Braid and Silicone Resin Coating Transport Package Carton & Pallet Specification 2*26AWG, 2*24AWG, 2*22AWG, 2*20AWG, 2*18AWG,2*16,2 Trademark FONGMING Origin Jiangsu Province, China. HS Code 8544492100 Production Capacity 100000000m Per Year

Product Description

high performance  fiberglass  insulation  fiberglass jacket J Type thermocouple extension cable

Description
Name:Thermocouple wire
Model:JX-G-GType
Size:2*26-2*14AWG

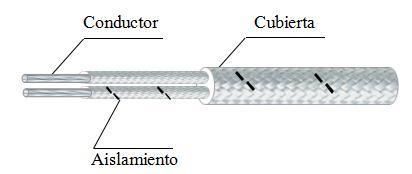

Structure
Conductor:Fe,Cu-Ni
Insulation:Fiberglass Braid  and Silicone Resin Coating
Color:Positive White With Black Stripe Negative White
Jacket:Fiberglass Braid and Silicone Resin Coating
Color:White White With Black Stripe

Model


Specification

Size (AWG)	Conductor Structure P&N  (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Braid Thickness (mm)	O.D. (mm)
2*26	7/0.16	0.48	0.2	0.9	0.2	1.3±0.2*2.0±0.2
2*24	7/0.2	0.6	0.2	1.0	0.2	1.4±0.2*2.2±0.2
2*22	7/0.25	0.75	0.2	1.2	0.2	1.6±0.2 *2.6±0.2
2*20	11/0.25	0.96	0.2	1.4	0.2	1.8±0.2*3.0±0.2
2*18	17/0.25	1.19	0.2	1.6	0.2	2.0±0.2 *3.4±0.2
2*16	27/0.25	1.50	0.2	1.9	0.2	2.3±0.2 *4.0±0.2
2*14	42/0.25	1.87	0.2	2.3	0.2	2.7±0.2 *4.8±0.2

 Certificates:


UL, CE, CCC, RoHS, CSA, SGS, ISO etc. certificates are well received.



Packaging & Shipping



1. Package length	200meres 305meter 500meter As customers requirement
2. Package method	Rolls, spool or coil, Pallets if need.
3: Shipping port	Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port

Company Information

Factory Size (Sq.meters):	25,000-30,000 square meters
Factory Location:	Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China
Number of Production Lines:	7
Number of R&D Staff:	21 - 30 People
Number of QC Staff:	21 - 30 People
Contract Manufacturing:	OEM Service Offered Design Service Offered Buyer Label Offered

Hot Products



FAQ
 1. Why the price is so low?
You are ordering directly from the factory.

2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.

3.Can I get some samples?
Yes, we are honored to offer you samples.

4. Can you make the products with my design?
Yes. customization is welcome .
