• Model NO.：Hta Cis Cable
• Wire Core Material：Al , Cu
• Certification：ISO, CCC, CE, RoHS, Kema
• Model：Cis Cable
• Brand：Yifang Cable
• Core：1core, 3core
• Sheath Colour：Black
• Standard：NFC 33226
• Metallic Screen：Longitude Aluminum Plastic Tape
• Transport Package：Drum
• Specification：25mm2-630mm2
• Trademark：Yifang
• Origin：Zhengzhou, Henan, China
• HS Code：8544601200
• Production Capacity：150km Per Month

Basic Info.

Model NO. Hta Cis Cable Wire Core Material Al , Cu Certification ISO, CCC, CE, RoHS, Kema Model Cis Cable Brand Yifang Cable Core 1core, 3core Sheath Colour Black Standard NFC 33226 Metallic Screen Longitude Aluminum Plastic Tape Transport Package Drum Specification 25mm2-630mm2 Trademark Yifang Origin Zhengzhou, Henan, China HS Code 8544601200 Production Capacity 150km Per Month

Product Description

Cable Hta Cis 33kv (18/30KV) 1X25mm2 1X150mm2 1X400mm2 Al MV Power Cable

1.Application:
Cable HTA CIS is used for public power distribution network 1~35KV.

2.Reference standard : NFC 33-226 IEC60502 and special requirements of clients

3.Cable structure :
3.1 Conductor material: Aluminium
3.2 Conductor Screen: Semi-conducting compound
3.3 Insulation: XLPE
3.4 Insulation screen: Strippable semi-conducting compound ,longitude with grooves and sealing power over it
3.5 Metallic screen layer: Longitude aluminum plastic tape
3.6 Outer sheath: PE

4.Packaging

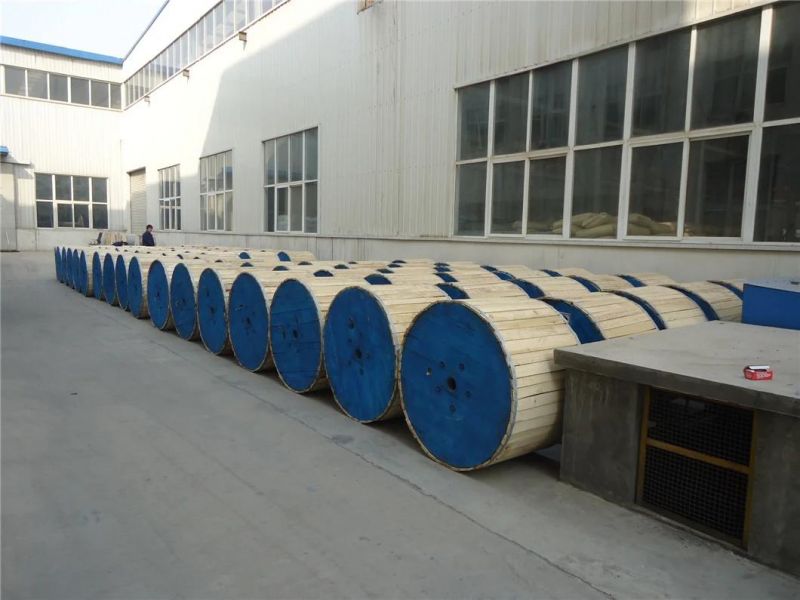

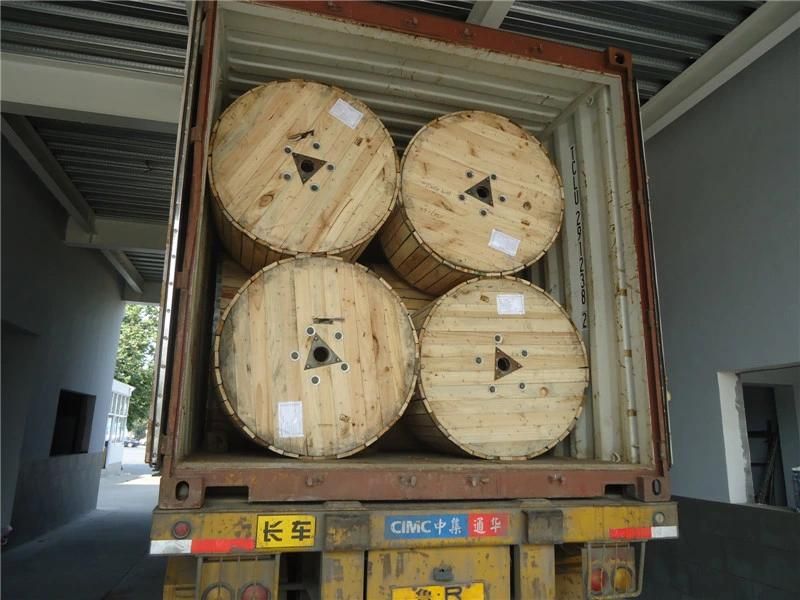

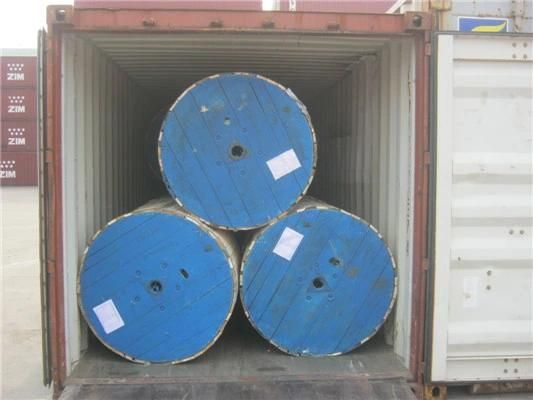

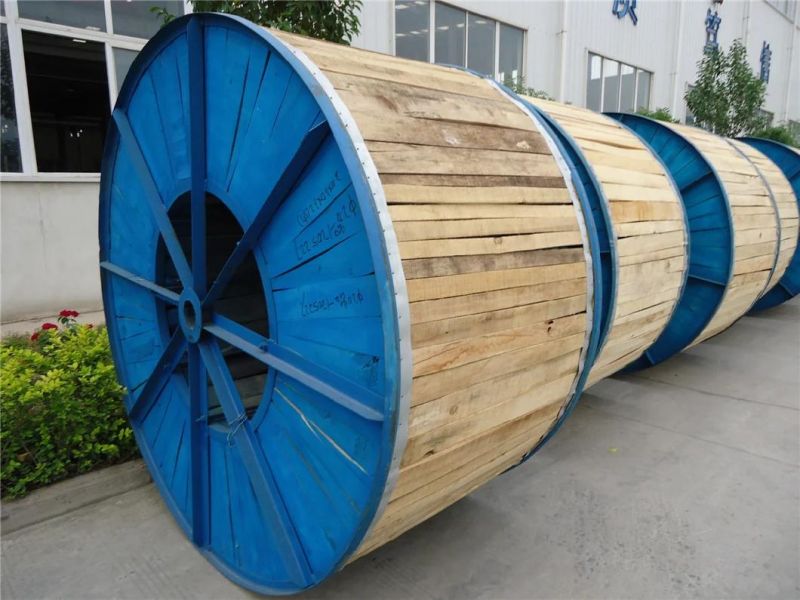

Roll / Wooden drum / Iron-wooden drum

5.Export areas: African Countries

6. Certificate available : ISO ,CE , SGS, SONCAP , BV , COC ETC
