4X0.22mm Security Alarm Cable

Hangzhou Spring Electronics Co., Ltd.
  • Application：Local Communication Cable, Alarm
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC
  • Type：Coaxial
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS
  • Model：Rvv
  • Brand：Fuu
  • Transport Package：100m
  • Specification：12awg Conductor
  • Origin：China
  • HS Code：8544200000
  • Production Capacity：3500km,Month

Description

Cable construction :

Conductor:

4×(7/0.20mm TC/BC/CCA/TCCA)

Dielectric:

Type: PVC

Diameter: 0.95mm

Color Code:

1.Blk

2.Red

3.Ylw

4.Grn



Rip Cord

Cotton Wire



Jacket:

Type: PVC

Diameter: 3.50mm

Print Legend:

 0.22mm² 4C Unshielded Security Alarm Cable ××× M

Electrical Properties :

Temperature Rating

(-20ºC ~ +60ºC)

Operating Voltage

300 Volts max

Capacitance

15 pf/ft nom.

Impedance

100 Ohms nom.

DC Resistance

16.6 Ohms/M' at 20ºC

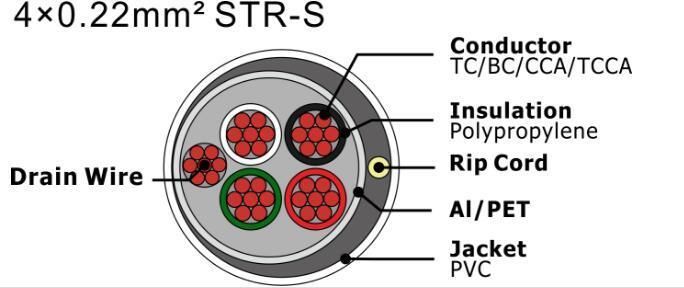

Cross Section :

4X0.22mm Security Alarm Cable




Order Informations :

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.
