• Model NO.：SIP4 SIP2 cable
• Material Shape：Round Wire
• Range of Application：Overhead Electric Power Transmission
• Certification：ISO9001, CE, CCC
• Brand：Hongda
• Product Name：Aerial Cable
• Standard：IEC, BS, AS,NZS, SABS
• Color：as Your Require
• Core Number：as Your Require
• Rated Voltage：1kv-35kv
• Rated Temperature：70c 90c 120c 200c
• Armour：None Armour
• Strand Number：7, 19, 37, 54, 61, 91
• Transport Package：Wooden Drum, Steel & Wooden Drum
• Specification：0.5mm2-400mm2
• Trademark：Hongda
• Origin：Henan China
• HS Code：8544492100
• Production Capacity：3000km,Month

Code Word

Phase conductor

Bare Neutral Messenger

Nominal Lay Length

Weight Per 1000ft. (lbs.)

Allowable Ampacities+

Size

(AWG)

Stranding

Insul. Thick.

(Mils)

Size

(AWG)

Stranding

Rated Strength

(lbs.)

inches

XLP

POLY

XLP

POLY

AAC Neutral-messenger

Pekingese

6

1

45

6

7

563

10.36

61

61

85

70

Collie

6

7

45

6

7

563

10.36

64

64

85

70

Dachshund

4

1

45

4

7

881

10.36

92

92

115

90

Spaniel

4

7

45

4

7

881

10.36

96

96

115

90

Doberman

2

7

45

2

7

1350

14.88

147

147

150

120

Malemute

1/0

9

60

1/0

7

1990

14.88

234

234

205

160

Code Name

Phase Conductor

Bare Neutral Messenger

Weight Per 1000ft (lbs)

Ampacity(amps)

Size AWG

Stranding

Insulation Thickness(mls)

Size AWG

Stranding

Breaking Strength(lbs)

XLPE

Poly

XLPE

Poly

6201 ALLOY NEUTRAL-MESSENGER

Minex

6

Solid

45

6

7

1,110

106.6

102.9

85

70

Hippa

6

7

45

6

7

1,110

113.2

105.7

85

70

Prawn

4

Solid

45

4

7

1,760

158.4

154.1

115

90

Barnacles

4

7

45

4

7

1,760

168.3

158.2

115

90

Shrimp

2

7

45

2

7

2,800

253.7

239.7

150

120

Gammarus

1/0

7

60

1/0

7

4,460

411.7

386.0

205

160

Leda

1/0

19

60

1/0

7

4,460

402.7

386.0

205

160

Dungenese

2/0

7

60

2/0

7

5,390

506.8

476.3

235

185

Cyclops

2/0

19

60

2/0

7

5,390

495.3

476.3

235

185

Dlustra

3/0

19

60

3/0

7

6,790

611.4

589.1

275

215

Lepas

4/0

19

60

4/0

7

8,560

757.1

730.5

315

245

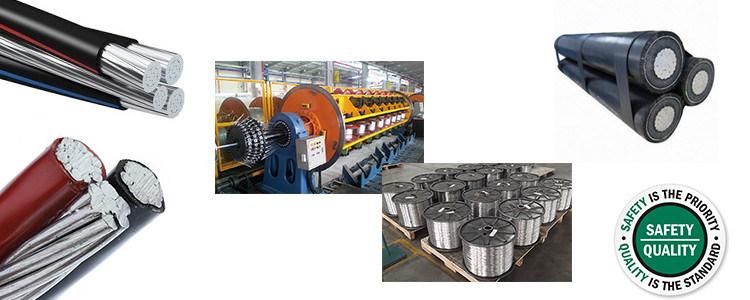

5.Aerial Cable Construction
Conductors :Round standed or compacted 1350-H19 aluminium or Copper conductor ,AAAC,ACSR
Conductor Screen:Extruded semi-conductive compound
Insulation : XLPE ( UV-resistant)
Note: The above provisions can be changed as order

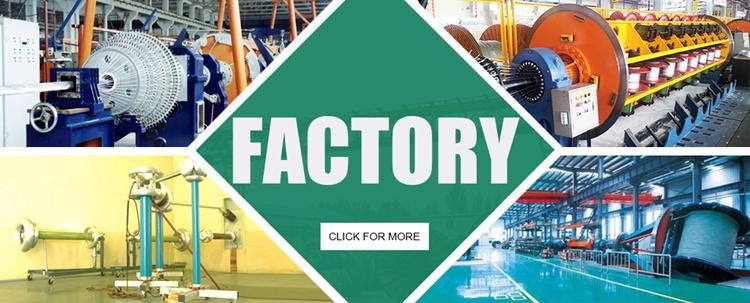

6. Factory

     Henan Hongda Cable Co., Ltd. located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Hongda Cable
covers an area of 100,000 square meters, including 50,000 square meters of building area. We have more than 120 staff members and professional workers. our fixed assets of 90,000,000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity
     Henan Hongda Cable Co. Ltd. is the original Zhengzhou Hongda Cable Co. Ltd. established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products,We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 300 (sets) domestic and oversea-leading production and testing equipment
7. Packing and Transportation
  We provide you with the best product packaging design services, thereby allowing you to save more shipping charges

8. Certificate
