0.6/1kV 3X50+54.6+1X16mm2 XLPE Insulated Aluminum Aerial Cable
YIFANG ELECTRIC GROUP INC.- Application：Construction, Overhead, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：None
- Material Shape：Round Wire
Base Info
- Model NO.：Aerial Cable
- Wire Core Material：Aluminum
- Certification：ISO, CCC, CE
- Model：Aerial Bundled Cable
- Brand：Yifang
- Core：1core ~ 6core
- Colour：Black,White,Red,or as Per Requirements
- Standard：NFC 33209
- Neutral Conductor：AAAC

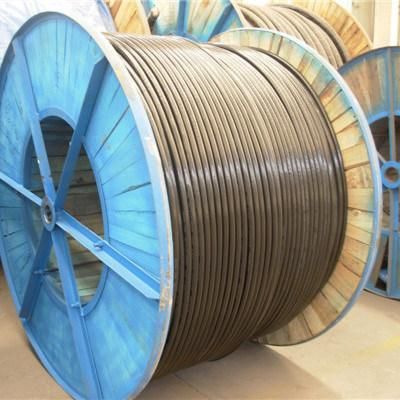

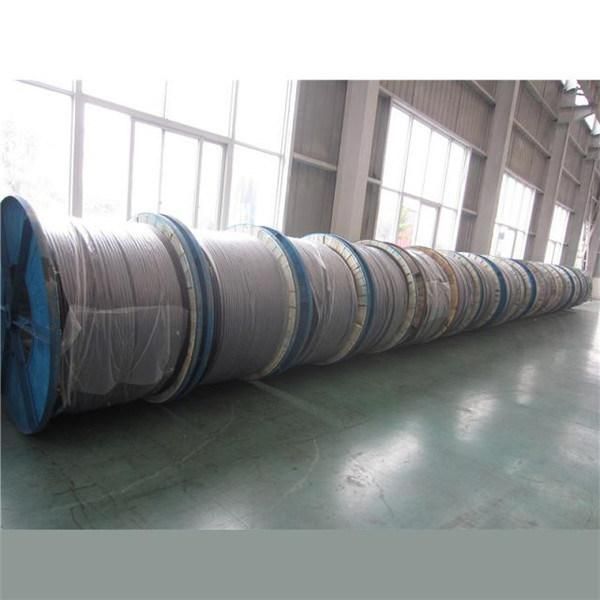

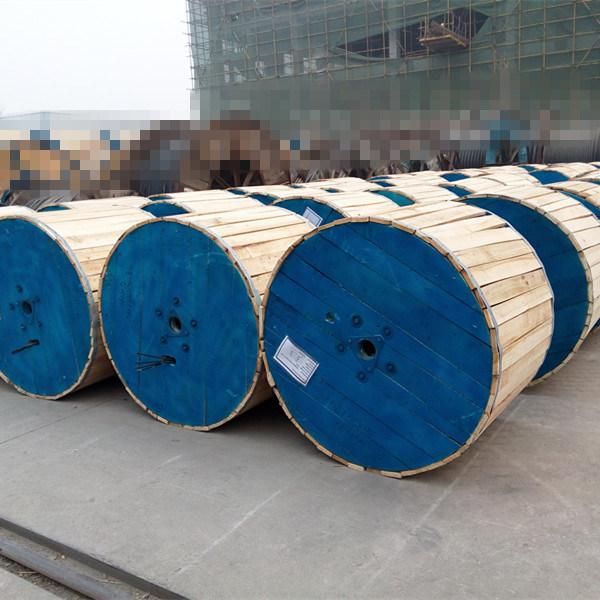

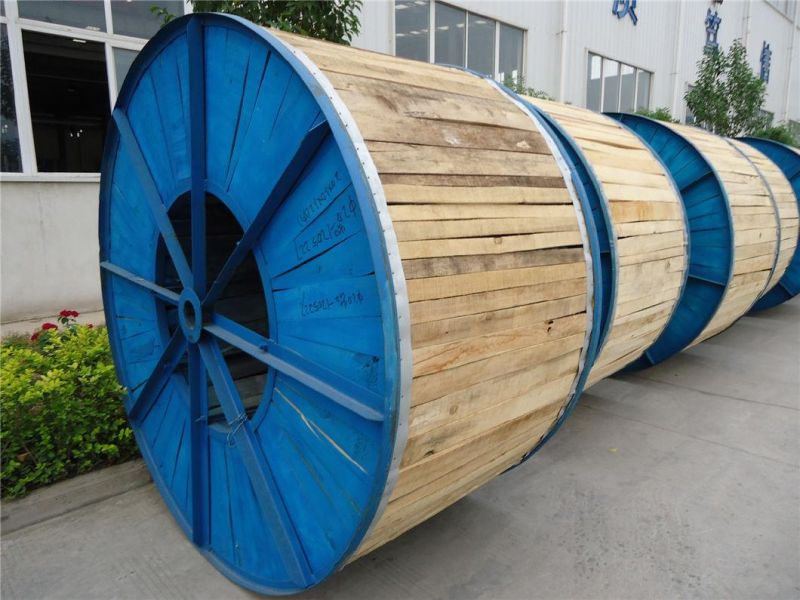

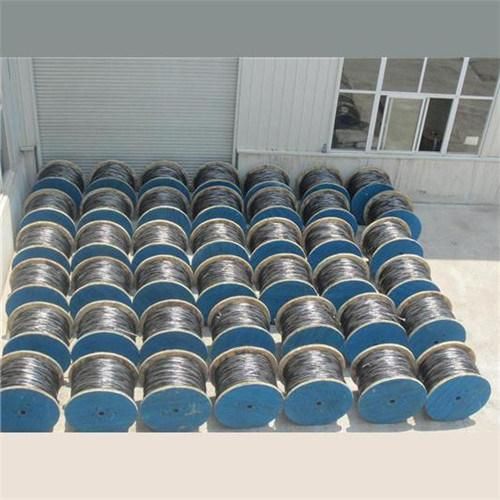

- Transport Package：Coil, Drum
- Specification：3X50+54.6+1X16mm2
- Trademark：Yifang
- Origin：Zhengzhou, Henan, China
- HS Code：8544492100
- Production Capacity：5000km Per Month
Description
Sectional area (mm2)
10
16
25
35
50
70
95
Resistance (Ω/km)
3.08
1.91
1.20
0.868
0.641
0.443
0.320
Sectional area (mm2)
120
150
185
240
300
400
Resistance (Ω/km)
0.253
0.206
0.164
0.125
0.100
0.0778
SPEC
mm2
Conductor structure
Insulation
Material
Insulation
Thickness
(mm)
Approx overall diameter
(mm)
Approx weight
(kg/km)
Phase (compacted Al)
Neutral
(alloy)
No./mm
No./mm
1*16+1*16
7/1.72
7/1.72
XLPE
Or
PVC
or
PE
1.2
12.5
110.1
1*25+1*25
7/2.15
7/2.15
1.2
14.9
163.9
1*35+1*35
7/2.54
7/2.54
1.4
17.5
229.0
1*50+1*50
7/2.92
7/2.92
1.4
20.1
300.0
1*70+1*70
19/2.15
19/2.15
1.4
23.6
423.2
1*95+1*95
19/2.54
19/2.54
1.6
27.6
585.4
2*16+1*16
7/1.72
7/1.72
1.2
14.2
175.8
2*25+1*25
7/2.15
7/2.15
1.2
16.7
258.4
2*35+1*35
7/2.54
7/2.54
1.4
19.7
361.2
2*50+1*50
7/2.92
7/2.92
1.4
22.5
472.1
2*70+1*70
19/2.15
19/2.15
1.4
26.1
658.3
2*95+1*95
19/2.54
19/2.54
1.6
30.5
908.2
3*16+1*16
7/1.72
7/1.72
1.2
16.3
241.5
3*25+1*25
7/2.15
7/2.15
1.2
19.1
353.6
3*35+1*35
7/2.54
7/2.54
1.4
22.5
493.5
3*50+1*50
7/2.92
7/2.92
1.4
25.7
644.1
3*70+1*70
19/2.15
19/2.15
1.4
29.7
895.2
3*95+1*95
19/2.54
19/2.54
1.6
34.6
1233.5
