• Model NO.：Sycom T-207H
• Origin：China

Basic Info.

Model NO. Sycom T-207H Origin China

Product Description

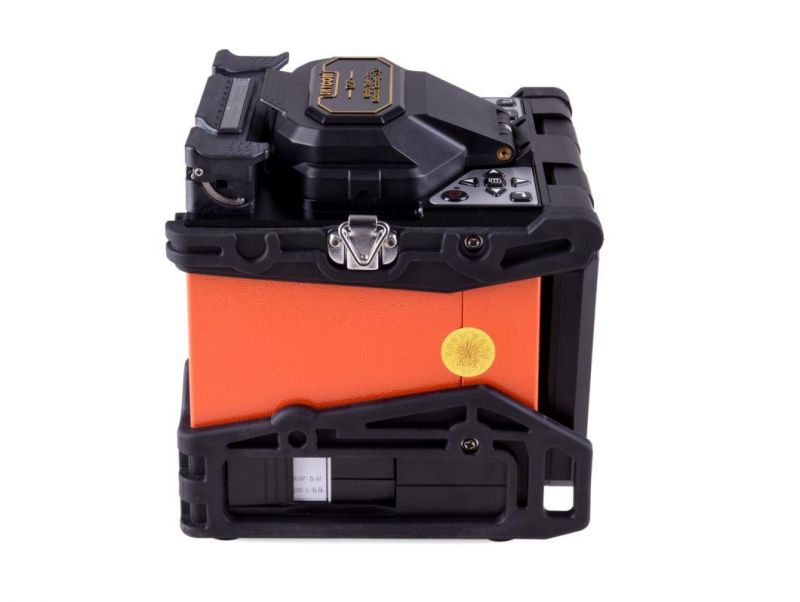

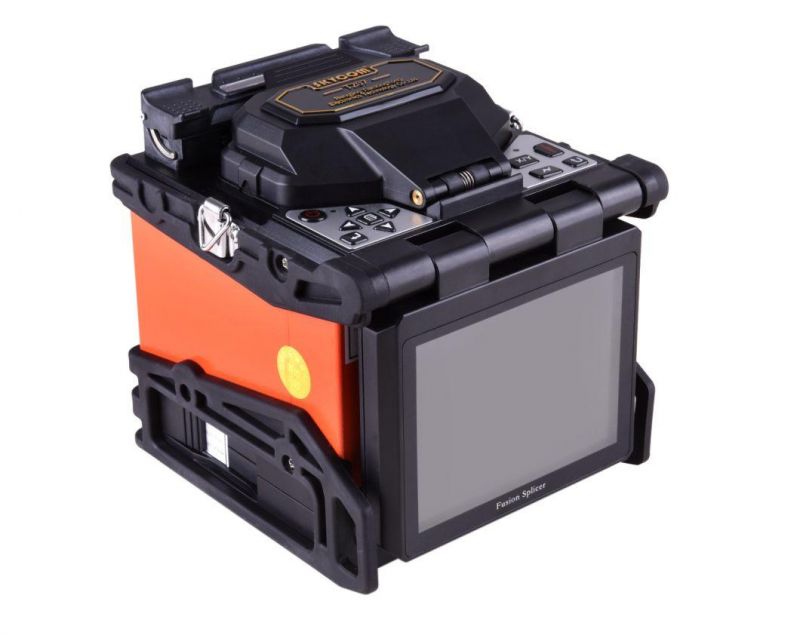

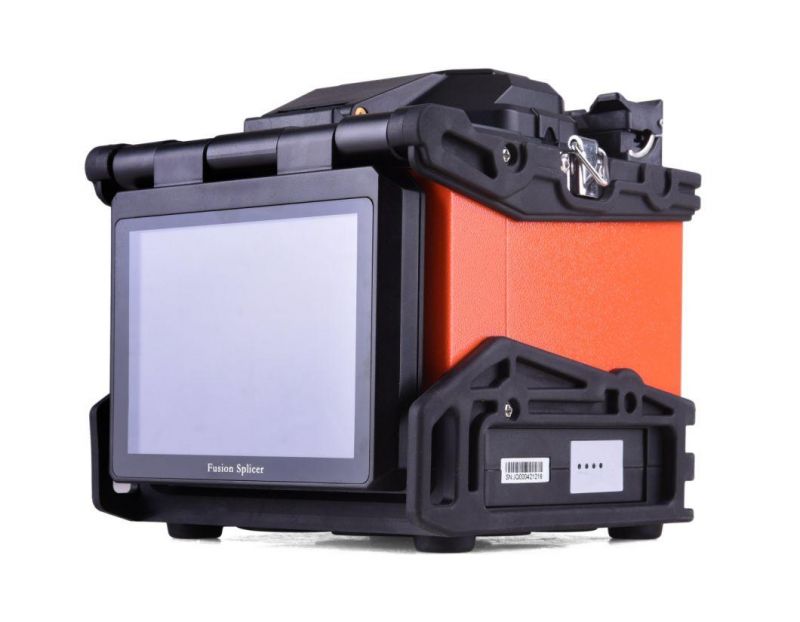

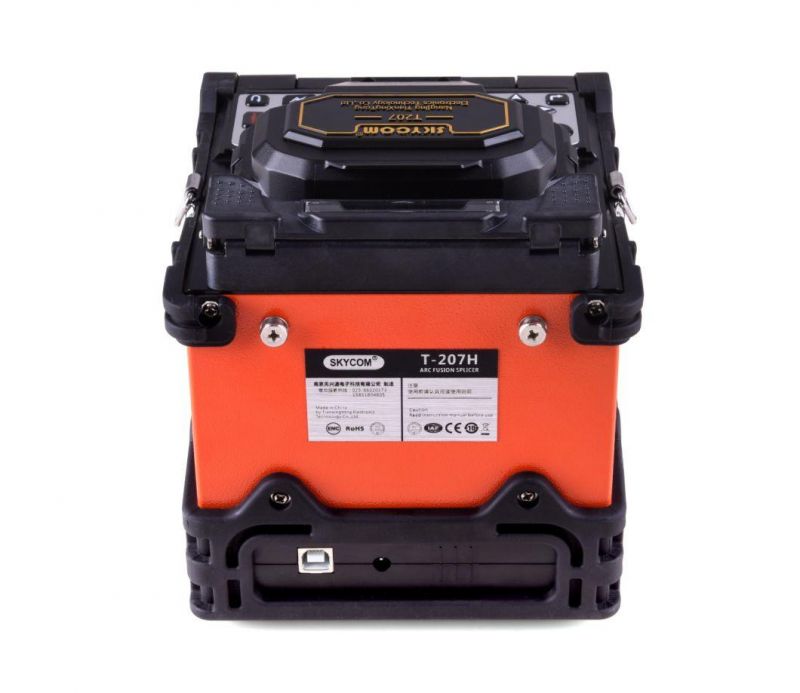

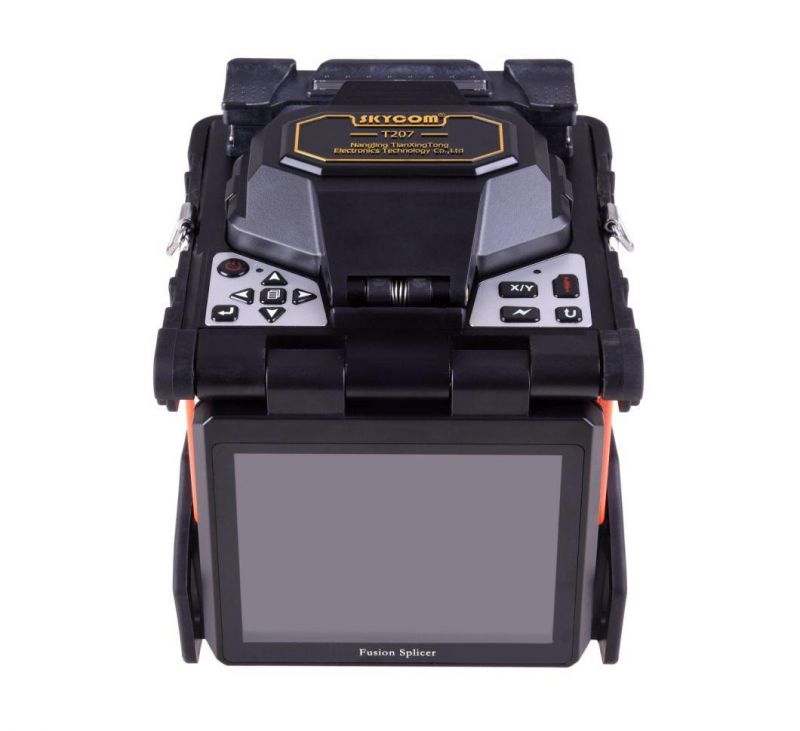

 SKYCOM Hi-Precision Digital Fusion Splicer T-207H

Description
>  Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.
>  We has been dedicated to R & D, manufacturing fusion splicer from 2010, and successfully obtained 5 patents for the fusion slicer research. SKYCOM T-207 is our latest developed product. It is more concise and smaller in size and has obtained 2 patents for its new technologies.
Key Features
>  5 inches high resolution colorful LCD display, image can be turned according to position
>  Average splice time: 10 seconds
>  Average tube-heat time: 30 seconds
>  Lithium battery: Rechargable and up to 200 times of continuous splice and heat after fully charged
>  X or Y axis Separately views with 360 times magnification, or Simultaneously 220 times
>  Cutting-edge technology for image processing
>  New developed technology providing strong wind and dust resistance
>  Splicing mode: Auto & Manual & Full-Auto
>  USB Port
>  Storing 6,000 groups of latest splice results
>  New technology of fiber core alignment, enhanced accuracy
>  New 3-in-1 cutting fixture for Drop cable, pigtail & bare fiber (Patented technology)
>  New Multipurpose 1+N fixture (Patented technology)
* 1+N: one 3-in-1 fixture ( for Drop cable, fiber optic pigtail, bare fiber) & optional fixtures ( for SC/LC/FC connector).



Specification

Applicable Fibers	SM, MM, NZ-DS, EDF, Pigtail, Cable (Drop cable), SC/LC/FC connector (optional function)
Average Splice Loss	0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Return Loss	≥60dB
Tension Test	2.0N(200gf)(Standard)
Typical splicing time	10 seconds
Typical heating time	30 seconds
Splicing Program	50 groups
Protection Sleeve Length	40mm, 60mm
Operating Language	Chinese, English, French, Portuguese, Spanish
Operating Conditions	-10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude)
Power Supply	AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) Inner lithium battery: 11.1V, 5.2AH
Monitor	5 inches high resolution colorful LCD display
Fiber Image Magnification	X or Y axis Separately views 360 times magnification, or Simultaneously 220 times
Storage of Splice Result	6,000 groups of latest splice results
Splicing Model	Auto & Manual & Full Auto
Optical Fiber Fixture	3-in-1 cutting fixture; Multipurpose 1+N fixture (SC/LC/FC connector)
Dimensions	130(W)*135(D)*130(H)mm;                 Package size: 53*32*30cm
Weight	2.11kg+0.38kg (battery weight)=2.49kg;        Package G.W.: 7.40kg

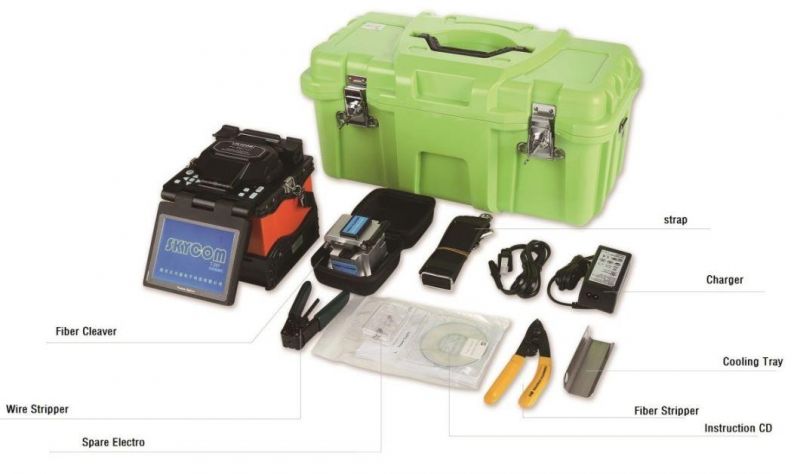

Standard Accessories

No.	Item	Quantity
1	Machine T-207	1
2	Fiber Cleaver	1
3	Fiber Stripper	1
4	AC Adaptor (Charger)	1
5	Battery	1
6	Spare Electrodes	1
7	Cooling Tray	1
8	Instruction CD	1
9	Quick Reference Guide	1
10	Drop cable stripper	1
11	Carrying Case with Carrying Strap	1

*Custom-made Professional anti-shock tool kit (case) with sponge inside
*Export-standard Carton Box with PE Foam inside (53*32*30cm)
*Optional:SOC fixture(for SC/LC/FC connector)
