• Model NO.：alarm cable 6 core
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS
• Color：Red , Black
• Inner Conductor：6*7*0.20mmcu
• Cores：6 Cores
• Insulation：1.1mm PVC
• Export Length：100m,Roll, 305m,Drum
• Transport Package：Carton Box, Pallet
• Specification：6 core Fire Alarm Cable
• Trademark：Risun
• Origin：Zhejiang, China
• HS Code：8544491100
• Production Capacity：30000boxes,Month

Basic Info.

Model NO. alarm cable 6 core Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS Color Red , Black Inner Conductor 6*7*0.20mmcu Cores 6 Cores Insulation 1.1mm PVC Export Length 100m/Roll, 305m/Drum Transport Package Carton Box, Pallet Specification 6 core Fire Alarm Cable Trademark Risun Origin Zhejiang, China HS Code 8544491100 Production Capacity 30000boxes/Month

Product Description

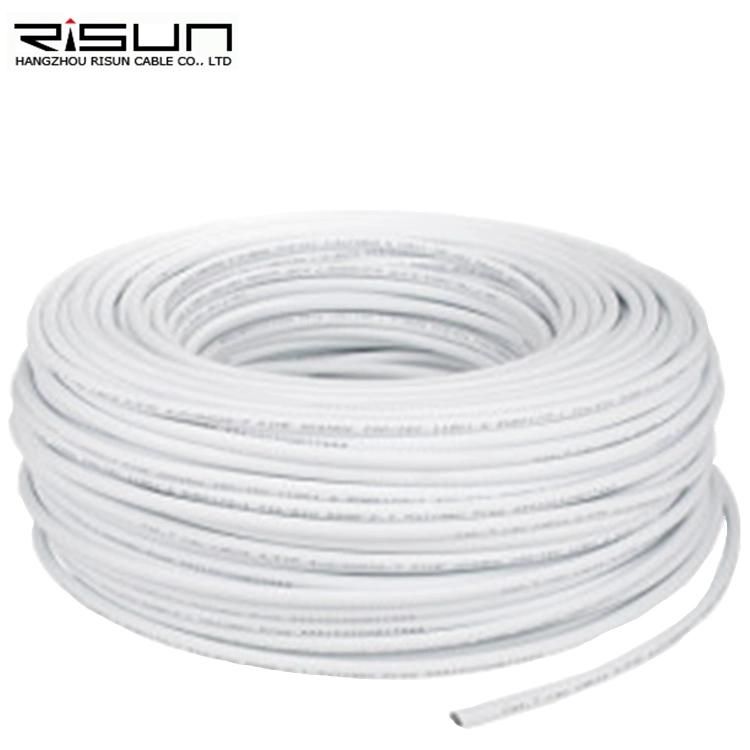

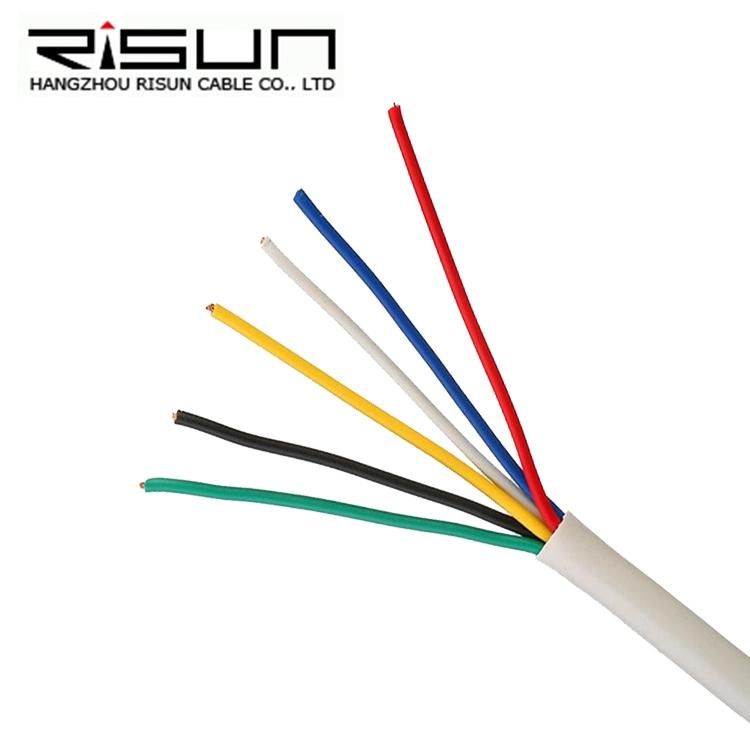

PVC Jacket Wholesale 6 Core 0.22mm2 Security Alarm Cable

Alarm Cable is a specialty wire for usage in multiple fire or alarm applications, as well as called Security Cable.It has a very wide range of applications, generally use for fire monitoring/detection, power-limited fire alarm systems, smoke detectors, signaling, control circuits, fire protective circuits, security systems, etc. There are two kinds of types, shielded and unshielded. If the spatial structure of the wiring is closer to the interference subjects such as air conditioner, must use shielded alarm cable.




Features:

Unshield alarm cable:
1. Conductor: 0.22mm² TC/BC/CCA, can 2-40 cores.
2. Frame Retardant PVC insulation
3. Ripcord
4. Frame Retardant PVC jacket.

Shielded alarm cable:
1. Conductor: 0.22mm² TC/BC/CCA, can 2-40 cores.
2. Frame Retardant PVC insulation
3. Pet Foil/Aluminum foil
4. Drain wire
5. Ripcord
6. Frame Retardant PVC jacket.

Packing:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;

Usage: Securitity alarm
Certificate: CE, RoHS, ETL.


SERIAL No.	SECTION	SPEICIFICATION	OVERALL DIAM. mm	WEIGHT (KG/KM)
RS-AL01	2*0.22mm2	2*7/0.20	3	11
RS-AL02	4*0.22mm2	4*7/0.20	3.5	18
RS-AL03	6*0.22mm2	6*7/0.20	4.1	25
RS-AL04	8*0.22mm2	8*7/0.20	4.5	32
RS-AL05	10*0.22mm2	10*7/0.20	5.2	39
RS-AL06	12*0.22mm2	12*7/0.20	5.4	46
RS-AL07	14*0.22mm2	14*7/0.20	5.8	54
RS-AL08	20*0.22mm2	20*7/0.20	6.8	76
RS-AL09	30*0.22mm2	30*7/0.20	8.4	114
RS-AL10	40*0.22mm2	40*7/0.20	10	148

The specification, packing, pringting brand all according to customer.


Application:

Company Introduction




Packing:









Production line:


Why Choose us:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and ZION.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery

FAQ

Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?

A: We are factory.


Q2. HOW LONG IS YOUR DELIVERY TIME?

A:Generally it is  5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.


Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?

A: Normally, 10kms per one specification and one color


Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.


Q5. HOW TO PROCEED AN ORDER FOR CABLES?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.


Q6.IS IT OK TO PRINT MY LOGO ON CABLES ?
A: Yes. Please inform us formally before our production.

Q7. WHAT IS YOUR TERMS OF PAYMENT?
A: Payment<=60km,100% in advance,payment >=60KM,30%TT in advance ,balance before shipment .
