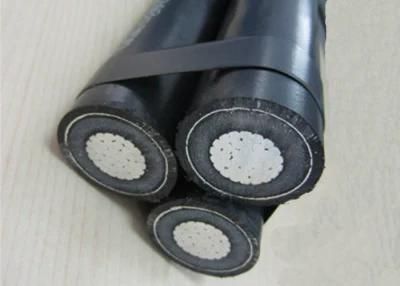

35kv Swa XLPE Cable Aluminum Conductor
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC
- Model：YJV
- Transport Package：Steel-Wooden Drum Packing
- Specification：90mm2 150mm2 185mm2 240mm2 300mm2
- Origin：China
- HS Code：8544601200
Description
ItemCategory A ,B 3.6/6kV 6/10kV 8.7/15kV 12/20kV 18/30kV 21/35kV Category A ,B 6/6kV 8.7/10kV 12/15kV 18/20kV - 26/35kV Single core mm2 25-1200 25-1200 35-1200 50-1200 50-1200 50-1200 Three core mm2 25-400 25-400 35-400 50-400 50-400 50-400
The cable with Category A rated voltage is used in the situation requiring not over 1 min. of grounding fault lasting time. For the cable with Category B rated voltage, the grounding fault lasting time normally is not over 1 hour, max. lasting time is not over 8 hours, annual ground fault lasting time altogether should not be over 125 hours, Category C includes all the system expect Category A and B.
5 Type and NameApplicationsYJV Copper conductor,XLPE insulated,PVC sheathed power cable For laying indoors,in tunnel or cable trench,unable to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct. YJLV Aluminum conductor,XLPE insulated,PVC sheathed power cable YJY Copper conductor, XLPE insulated,PE sheathed power cable YJLY Aluminum conductor, XLPE insulated,PE sheathed power cable YJV22 Copper conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable For laying indoors,in tunnel in cable trench,or direct in ground,able to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct. YJLV22 Aluminum conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable YJV23 Copper conductor,XLPE insulated,steel tape armoured,PE sheathed power cable YJLV23 Aluminum conductor,XLPE insulated,steel tape armoured,PE sheathed power cable YJV32 Copper conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable For laying indoors,in tunnel cable trench,well or direct in ground,able to bear external mechanical forces and certain pulling force. YJLV32 Aluminum conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable YJV33 Copper conductor,XLPE insulated,steel wire armoured,PE sheathed power cable YJLV33 Aluminum conductor,XLPE insulated,steel wire armoured,PE sheathed power cable
The cable with Category A rated voltage is used in the situation requiring not over 1 min. of grounding fault lasting time. For the cable with Category B rated voltage, the grounding fault lasting time normally is not over 1 hour, max. lasting time is not over 8 hours, annual ground fault lasting time altogether should not be over 125 hours, Category C includes all the system expect Category A and B.
5 Type and NameApplications
