Nylon / FEP / Tpee / PFA / ETFE Insulation Enamelled Resistance Wires
Jiangyin Senphus Electrical Material Co., Ltd.- Insulation Level：C
- Certification：ISO9001, CE
- Brand：Senphus
- Application：Heating
- Conductor Material：CuNi6, Nicr, Pure Nickel, etc
- Conductor：Stranded or Solid
Base Info
- Model NO.：SHHW
- Heating Wire Resistance：0.32ohm,M, 0.46ohm,M, 1.28ohm,M, etc.
- Heating Wire Color：Transparent, Black, Grey, Green, etc
- Type：Insulated
- Conductor Type：Stranded
- Sheath Material：PVC
- Insulation Material：Enameled
- Material Shape：Round
- Range of Application：Automotive Industry, Motorcycle Industry, etc
- Transport Package：Plastic Bag, Cartons
- Specification：CE, ul
- Trademark：SENPHUS
- Origin：China
- HS Code：851680000
- Production Capacity：500000m,Day
Description
Basic Info.
Model NO. SHHW Heating Wire Resistance 0.32ohm/M, 0.46ohm/M, 1.28ohm/M, etc. Heating Wire Color Transparent, Black, Grey, Green, etc Type Insulated Conductor Type Stranded Sheath Material PVC Insulation Material Enameled Material Shape Round Range of Application Automotive Industry, Motorcycle Industry, etc Transport Package Plastic Bag, Cartons Specification CE, ul Trademark SENPHUS Origin China HS Code 851680000 Production Capacity 500000m/DayProduct Description

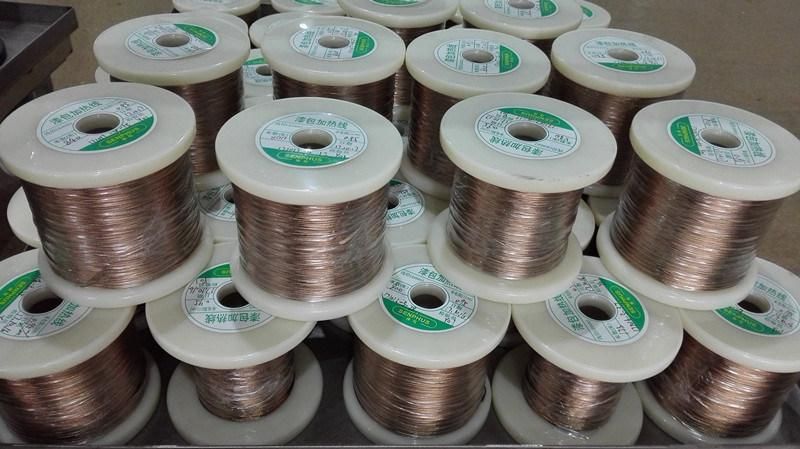

Nylon / FEP / TPEE / PFA / ETFE insulation enamelled resistance wires:

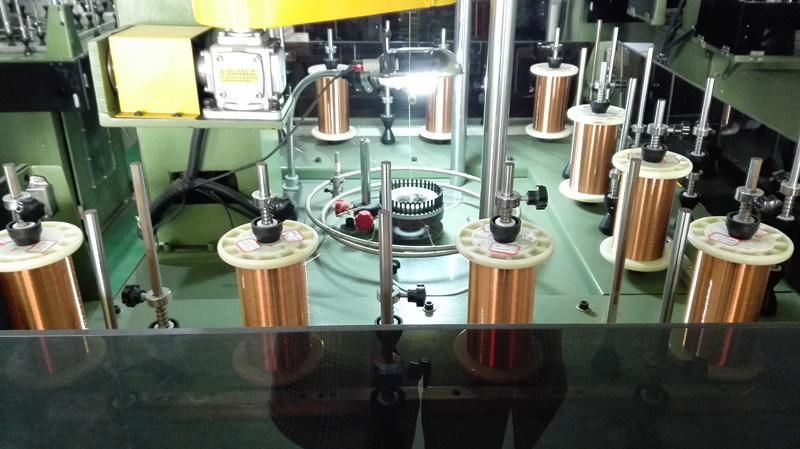

Jiangyin Senphus Electrical Material Co.,Ltd produce the high quality enamelled resistance heating wires, solid or stranded. The stranding number can be 7, 14, 19, 37, 48, 50, etc.
As per your usage and requirements, the enamelled resistance heating wires can be insulated or not.
If you need insulation, please tell us the insulation material, like, FEP, Nylon, TPEE, PFA, ETFE, PVC, Silicone rubber, XLPE, Fiberglass braided.
The enamelled heating wire diameter is from 0.05mm to 1.5mm. The heating wires can be CuNi2 CuNi6 CuNi23 CuNi30, Copper, CuSn, etc. as per the resistance,diameter, elongation, tensile strength, untwist impatient, etc.
The paint thickness can be customized, and there are first-class and second-class paint.
You could customize the wires structure, material, resistance, O.D. etc. Like, stranding number, distance of intertwist, diameter, resistance, enamelled or not, insulation material and thickness, etc.

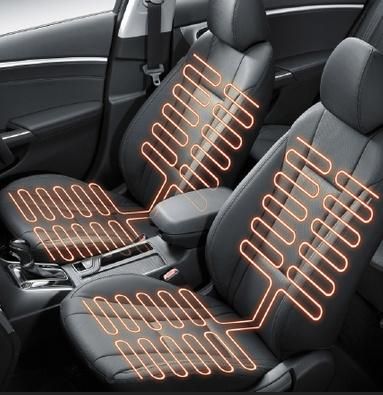

Up to now, we offer this car seat heating wires for several Chinese car seat producers. They are satisified with the quality, price and delivery time.
The popular resistance is 0.32ohm/m, 0.46ohm/m, 1.28ohm/m, 0.075 etc, 26 stranded, etc.
Welcome your inquiry about this car heating wires. tel:13961126504
We are glad to offer you detailed technical parameters if you send tammy email.
If you tell us your detailed requirements, we could produce free samples for your test.
