Low Voltage H05rn-F/H07rn-F Copper Conduct Rubber Insulated/Sheathed 4X25 4X35 4X50mm Flexible Rubber Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type：Insulated
- Conductor Type：Flexible Copper
- Application：Industrial and Agriculture Use
- Conductor Material：Copper
- Sheath Material：Pcp
- Insulation Material：Epr
Base Info
- Model NO.：H05RN-F,H07RN-F YZW YCW
- Material Shape：Round Wire
- Range of Application：Household and Industrial Electrical Appliances
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Feiya
- Transport Package：Wooden Box Packing or Pallet Shipping Containers
- Specification：US $3-10, Meter
- Trademark：FengDa
- Origin：Tianjin, China
- HS Code：8544492100
- Production Capacity：5, 000, 000km,Year
Description
Basic Info.
Model NO. H05RN-F/H07RN-F YZW YCW Material Shape Round Wire Range of Application Household and Industrial Electrical Appliances Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Feiya Transport Package Wooden Box Packing or Pallet Shipping Containers Specification US $3-10/ Meter Trademark FengDa Origin Tianjin, China HS Code 8544492100 Production Capacity 5, 000, 000km/YearProduct Description
Product Description:
Type: H05RN-F
Application: For general use in dry locations for connections of electrical
apparatus submitted to weak mechanical strength, such as vacuum cleaner,
kitchen appliance, etc. unsuitable for industrial and agricultural use.
Type:60245 IEC 53 (YZ) 60245 IEC 57 (YZW) H05RN-F

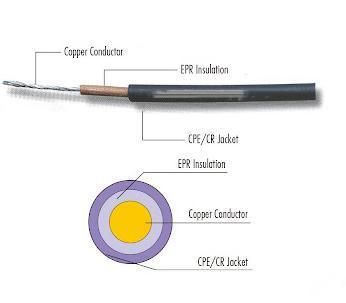

Conductor: Bare flexible copper
Insulation: EPR
Sheath: CEP
Rated voltage(U0/U): 300/500V
Standard: IEC60245-4 DIN VDE 0282-4
DIN EN 60228 class 5 (construction)
Test voltage:2000V
Temperature range: -25°C till +60°C
Bending radius: Min 4 times diameter (one time / fixed)
Min 8 times diameter (in motion)
Type: H07RN-F(60245 IEC 66)
Application: For general use in dry, humid and wet locations, for outdoor use,
for agricultural applications or in locations subject to explosion hazards. Also
suitable for connections of industrial and workshop electrical equipment
submitted to medium-level mechanical stress. It can be used for fixed
installations in temporary buildings as well as for connections of mobile
machines and hoists.
Conductor: Bare flexible copper
Insulation: EPR
Sheath: CEP
Rated voltage(U0/U): 450/750V
Standard: IEC60245-4 DIN VDE 0282-4
DIN EN 60228 class 5 (construction)
Test voltage:2500V
Temperature range: -25°C till +60°C
Bending radius: Min 4 times diameter (one time / fixed)
Min 8 times diameter (in motion)
