High Quality TUV Approval DC 1500V Solar PV Cable for Solar Energy System
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Application：Power Station
- Material Shape：Round Wire
- Sheath Material：Crosslinking
- Insulating Material：Xlpo
- Conductor Type：Stranded
- Brand：Fengda
Base Info
- Model NO.：H1Z2Z2-K
- Certification：CE
- Wire Core Material：Tinned Wire
- Colour：Red,Green,Blue,Black,White,as Request
- Flame Test：Yes
- OEM/ODM：Accepted
- Core：Single Core and Multicore
- Factory Type：Manufacturer
- Transport Package：Rolls or According to Cusotmers′ Reques

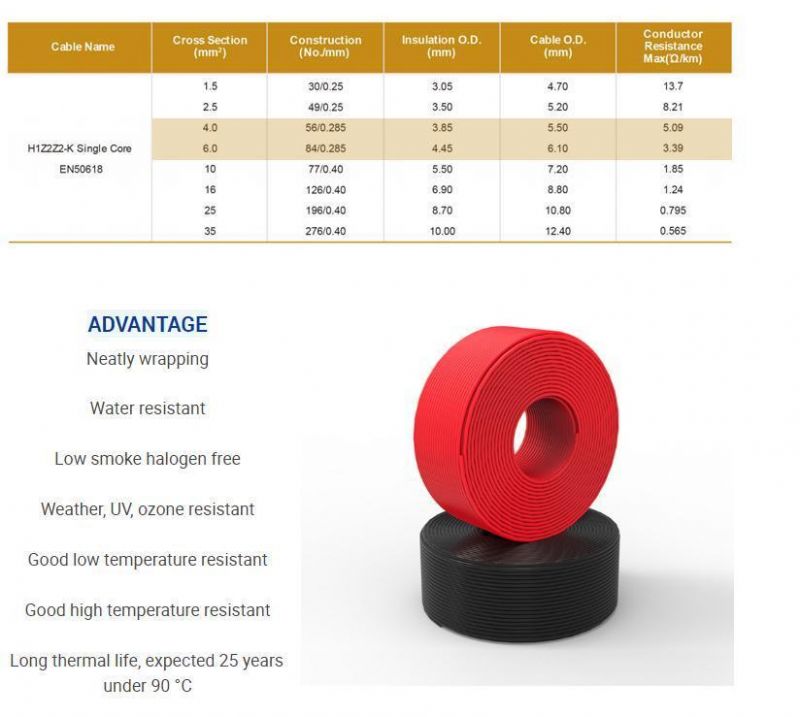

- Specification：1.5 to 35mm2
- Trademark：FengDa
- Origin：Tianjin, China(Mainland)
- HS Code：8544492100
- Production Capacity：5000000km,Year
Description

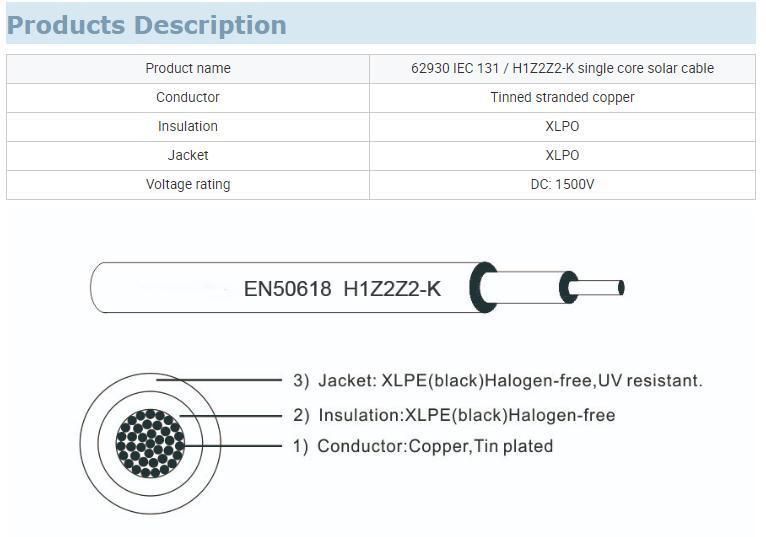

Type:H1 Z2Z2-K
Standard:EN 50618 Halogen free:EN 50267 / IEC 60754 Smoke
Density:light transmittance acc. to EN 50267 / IEC 61034
Conductor: Electrolytic annealed flexible tinned copper conductor
Insulation: Halogen Free, Thermosetting insulated
Sheath: Halogen Free, Thermosetting Sheath
Rate Voltage: 0.6/1kV AC;1800V DC HCI Content: <0.5% pH: >4.3 Smoke
Density: light transmittance >60%
Temperature Limits: Ambient Temperature: -40 to 90°C; Maximum conductor temp: 120°C Maximum short circuit temp: 250°C (max 5s). Short Circuit temp: 250°C
