50 Ohm 7D-Fb Coaxial Cable for CDMA Telecommunication System
ZHEJIANG LIBO INDUSTRIAL CO., LTD.- Application：Local Communication Cable, Coaxial Cable
- Conductor Material：Copper
- Cover Material：PVC or PE
- Type：50 Ohm Coaxial Cable
- Material Shape：Wire
- Conductor Type：Solid
Base Info
- Model NO.：50 Ohm 7D-FB
- Wire Core Material：Bare Copper
- Certification：CE, ISO
- Model：50 Ohm 7D-Fb
- Brand：Libo
- Transport Package：100m,200m,305m,1000ft
- Specification：CE, ISO9000, ISO14001, SGS
- Trademark：Libo
- Origin：China
- HS Code：8544200000
- Production Capacity：8, 000km Per Month
Description
construction
Testing item
Unit
Standard
Inner conductor
material
-
Bare Copper
diameter
mm
2.60+/-0.01
Dielectric
material
-
foamed PE
diameter
mm
7.30mm
1st shield, tape
material
-
BAPA
2nd shield, braid
material
-
Tinned copper wire
Electrical properties
coverage
%
85%
jacket
PVC
mm
9.800+/-0.2mm
Nominal velocity of propagation
%
82%
Capacitance
pF/M
84
Characteristic impedance
Ω
50 +/-3
V.S.W.R
1.25
Attenuation
20ºC(max)
150MHZ
dB/100m
5.40
200MHZ
6.30
280MHZ
7.50
350MHZ
8.40
400MHZ
9.00
800MHZ
12.80
900 MHZ
14.10
1200 MHZ
16.80
1500 MHZ
19.20
1900 MHZ
22.40
2000 MHZ
23.20
2400 MHZ
25.70
3000 MHZ
29.50
Competitive Advantage:

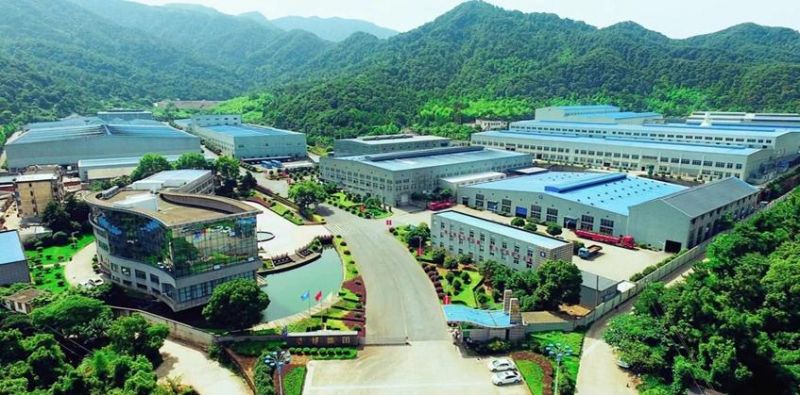

- Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.

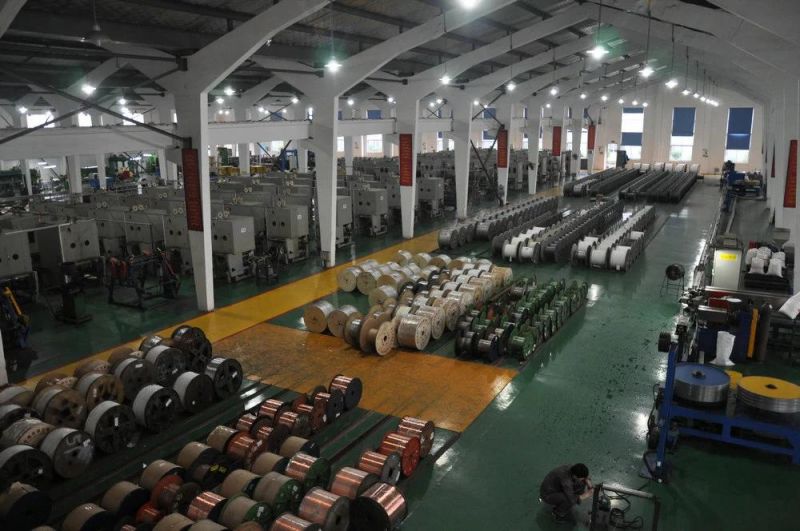

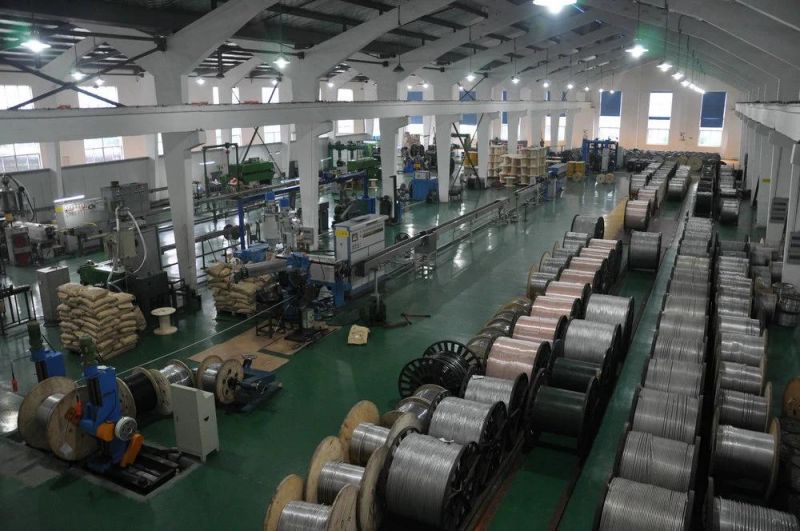

- Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
- Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
