Rg 6 Coaxial Cable Competitive Factory Price RG6 Tri Shield Coaxial Cable

Anhui Dream-China Technology Co., Ltd.

Type：Insulated
Conductor Type：Solid
Application：Overhead
Conductor Material：Copper
Sheath Material：PVC
Insulation Material：PVC

Base Info

Model NO.：BT-680 F
Material Shape：Flat Wire
Range of Application：1.CATV Systems 2.CCTV Monitoring Systems 3.Compu
Certification：RoHS
Transport Package：Standard Export Package
Trademark：BOTE
Origin：Hefei, Anhui, China

Description

Specifications:

Construction and Dimension

Item

RG59

RG58

RG6

RG7

RG11

Material of inner conductor

Diameter of inner conductor(mm)

0.81±0.02

19*0.20±0.01

1.00±0.02

1.29±0.02

1.63±0.02

Material of dielectric

Foam PE

Diameter of Dielectric(mm)

3.66±0.15

2.95

4.57±0.01

5.72

7.11

Material of Shield

ALfoil+Al brading

BC/TC braiding

ALfoil+Al brading

Coverage

40%--95%

95%

40%--95%

Diameter of 1st outer conductor

(mm)

3.90

4.90

5.90

7.52

Diameter of 2nd outer conductor

4.12

5.00

7.80

Material of Jacket

PVCPE

Diameter of Jacket

6.30

4.95

6.90

8.10

10.16

RG6 Cable Materials and other mechanical parameters:

ITEM
RG6SM
RG6S
RG6T
RG6Q
Center conductor
1.02mm + 0.01mm
1.02mm + 0.01mm
1.02mm+ 0.01mm
1.02mm+ 0.01mm
Dielectric
4.75+ 0.05mm Foam PE
4.75+ 0.05mm Foam PE
4.75+ 0.05mm Foam PE
4.75+ 0.05mm Foam PE
Shield
Bonded AL Foil
Bonded AL Foil
Bonded AL Foil
Bonded AL Foil
Braid coverage
60%
60%
60%
60%
Shield

Al Foil
Al Foil
Braid coverage

40%
40%
Jacket
6.91+0.05mm PVC
6.91+0.05mm
PVC
7.06+0.05mm
PVC
7.54+0.05mm
PVC
Messenger
1.30mm

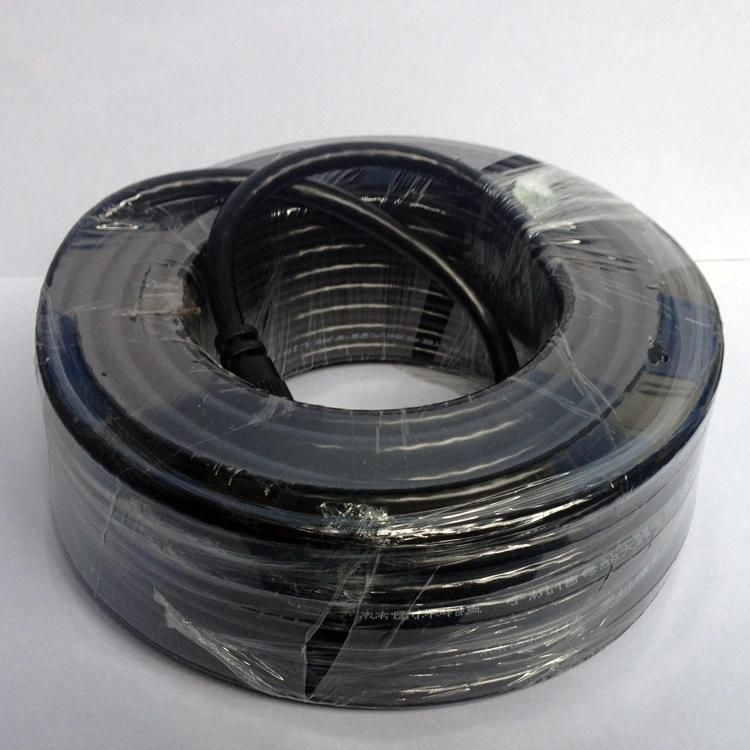

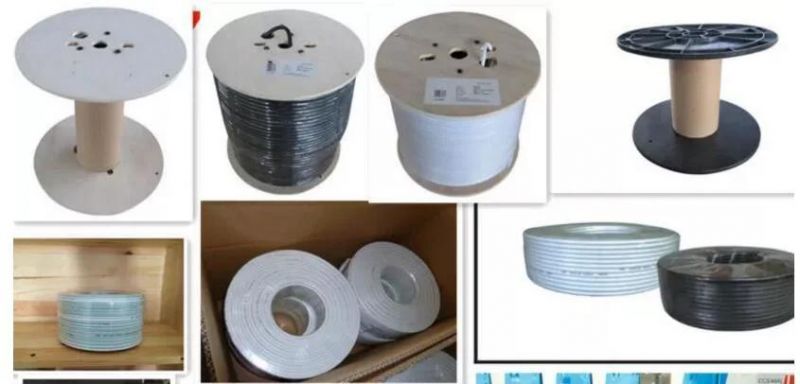

Detail picture show:
