• Model NO.：Control Cable
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, CCC, UL, ETL, Reach
• Model：Lighting Control Cable
• Brand：Superlink or OEM
• Shield：Al Foil
• Braiding：Al,CCA,Bc,Tc 40%~95% Coverage
• Length：100m,200m,305m,500m
• Transport Package：PE Film,Wooden Reel,Plastic Drum
• Specification：multicore
• Trademark：Superlink or OEM
• Origin：Zhejiang, China
• HS Code：8544491100
• Production Capacity：5000km,Month

Our service
1. All kinds of cable products & one-stop experience.
2. Quality & competitive price.
3. Order process will be shared via photo and video.
4. On-time delivery & After-sales problems solved before sales.
5. 24/7 hours response.
 All start here

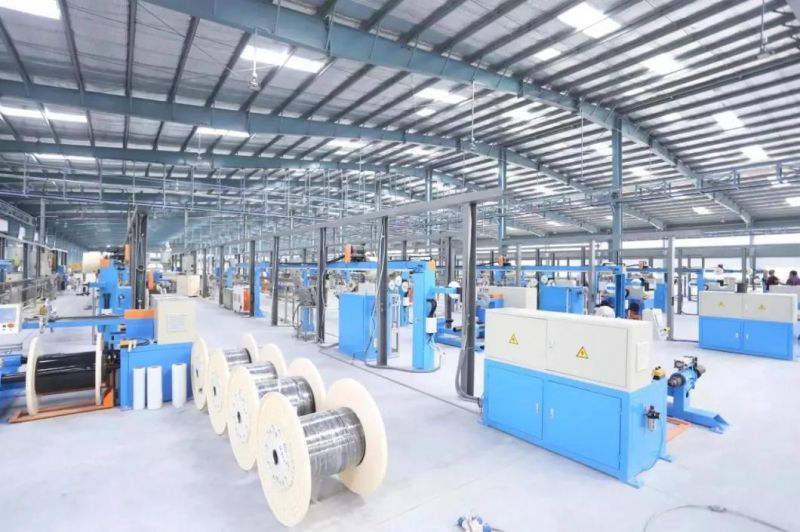

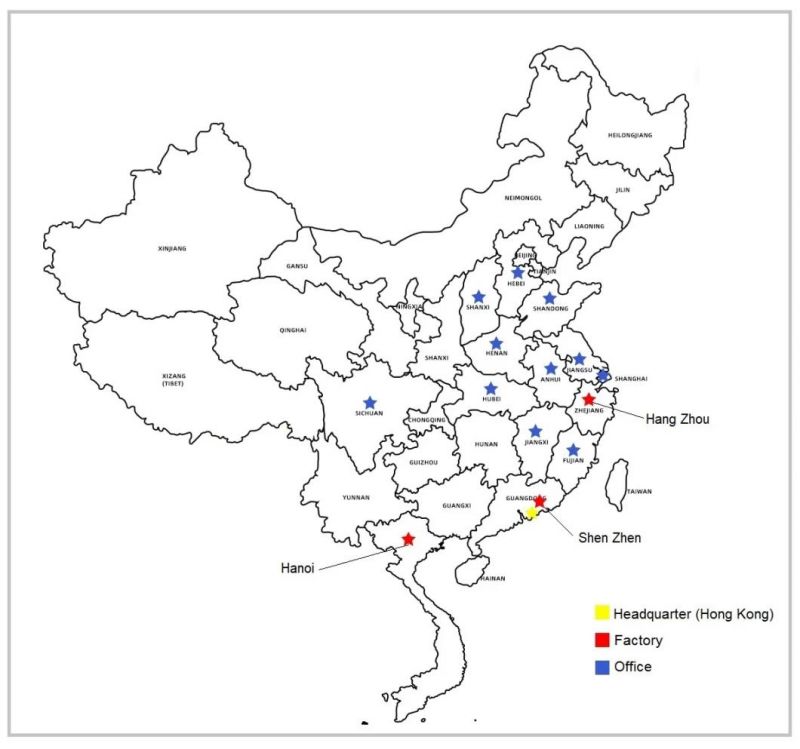

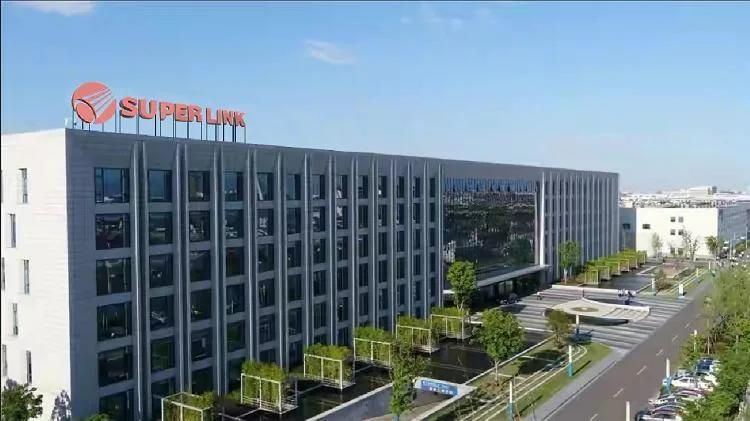

We have three factories located in Hangzhou, Shenzhen and Vietnam. The total production base exceeds 300,000 square meters. We plan to set up offices in all coastal port cities in China to achieve fast delivery.Connect the world
1. Hangzhou factory: "Quality first" pass tests.
2. Shenzhen factory: "Price first"
3. Vietnam factory: Export to EU, America, no tariffs, anti-dumping.Our capability
1. 17 years of production experience, quality first, customer first, service first.
2. Swiss moulds with high precision are selected for production equipment.
3. Complete supply chain. We have our own raw material factory, from materials to finished products, offer more competitive pricing with good quality for customer.
 ProductKm/yearProductTon/yearNetwork cable500 000KmCu wire1000TCoaxial cable380 000KmCCA wire100TSpeaker cable / alarm cable200 000KmCCS wire500TTelephone cable150 000KmAL-MG wire300TPower cable210 000KmAL foil120TPatch cord110 000PcsPE compound1000TSolar cable50 000KmPVC compound2500T    Control Cables                                                                            Application:
Multi conductor cables are commonly used for control purposes. Things such as remote signaling, communications, and broadcast applications to name a few. TYPES:1. Access Control Cable;2. Thermostat Control Cable;3. Lighting Control Cable;4. KNX intelligent control system. These cables are manufactured to meet the UL, ETL, and CE/CPR, RoHS requirements.

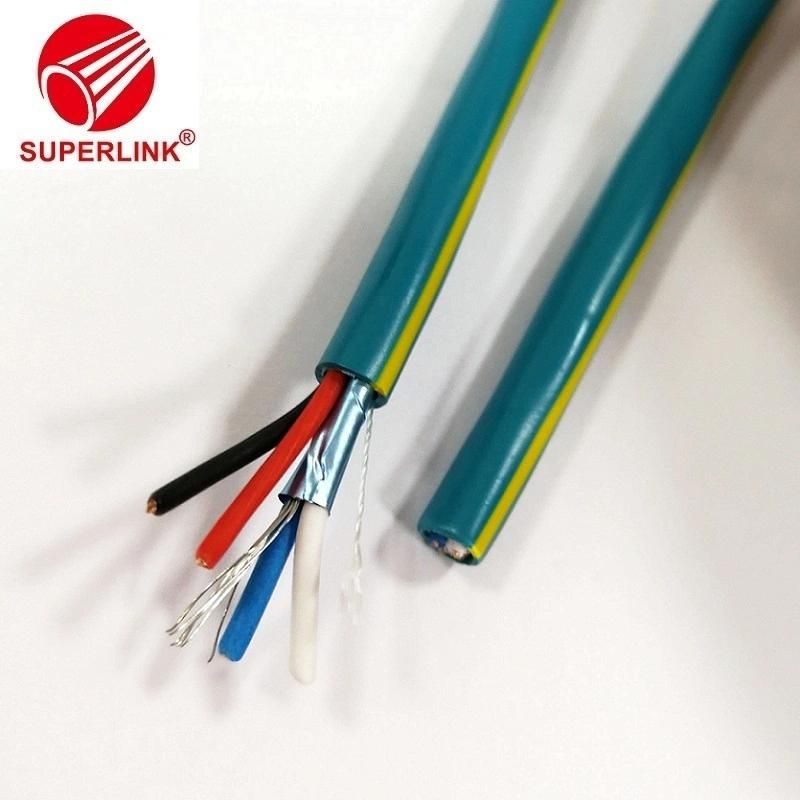

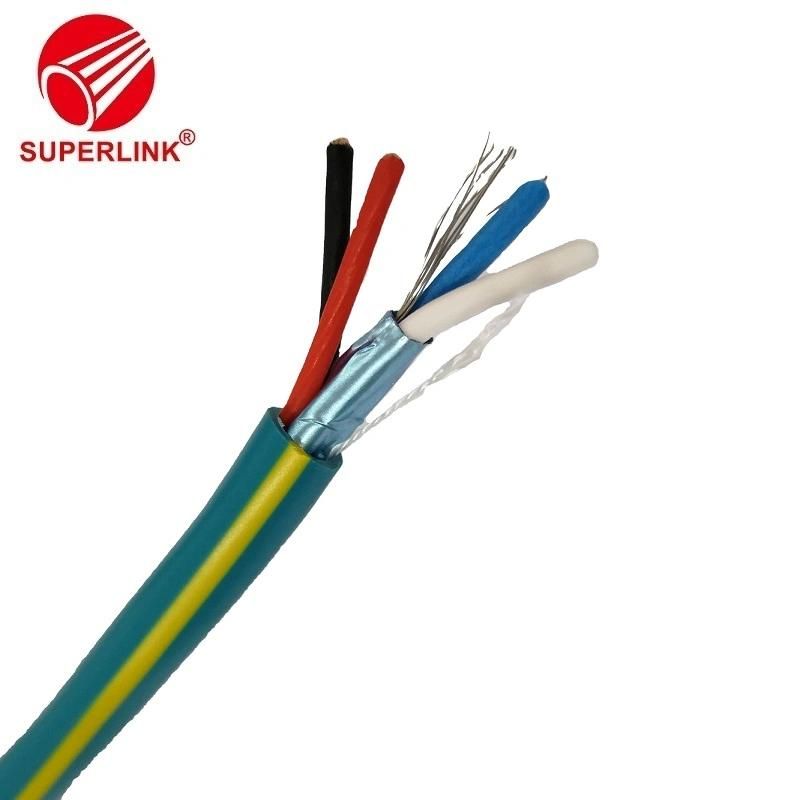

Multiple cores control cableFeatures* Touch Panels, Key Pads
* Expansion Modules, Tuners
* Indoor Applications
* Power Limited Control Circuits
* ETL Lisetd, RoHS Compliant
* 1000ft Spool 22AWGConductors (Stranded): 2 (7 Strand)
Material: Bare Copper
Insulation Material: Foamed PE
Insulation Thickness: 0.025 in.
Nominal Insulation Colors: Blue, White
Shield: Aluminum Foil
Drain Wire (Stranded): Tinned Copper

18AWGConductors (Stranded): 2 (16 Strand)
Material: Bare Copper
Insulation Material: High Density PE
Insulation Thickness: 0.010 in.
Nominal Insulation Colors: Red, Black
Shield: None

Outer JacketMaterial: PVC
Thickness: 0.032 in.
Nominal Diameter: 0.245 in.
Nominal Color: Teal / Yellow Stripe
 Rated Voltage: 300V, RMS
Rated Temperature: -20°C - 75°CRatings/Approvals
NEC Article 800, UL Subject 444, Type CM
C(ETL)US, Rohs Compliant


1. What's your company MOQ? - Our MOQ is 30km. But MOQ of stocks are 1 pcs.

2. Can you do our design?
- Of course, your customized design (OEM) is available.

3. What's the lead-time for order delivery?
- Within 10~30days.

4. Can you send a sample for us?
- Yes, we can provide free samples.

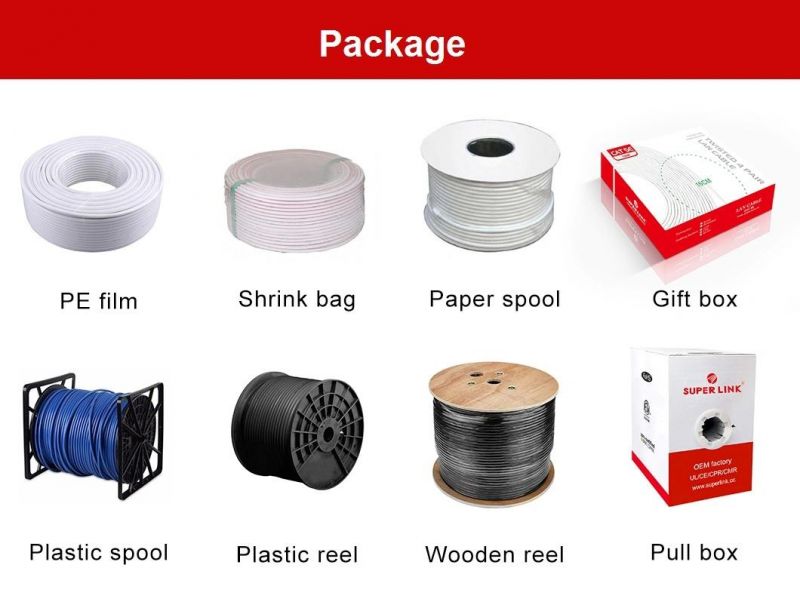

5. What is your packaging?
- Our packaging includes PE film, shrink bag, pull box, paper reel, plastic reel, wooden reel. Depends
on what you want!

6. Delivery time and transportation method?
- Shipment can be arranged immediately. By express, by sea, by air, you can ship whatever you want.

 7.Payment method?
 - T/T, L/C, we also accept most other convenient methods of payment.
