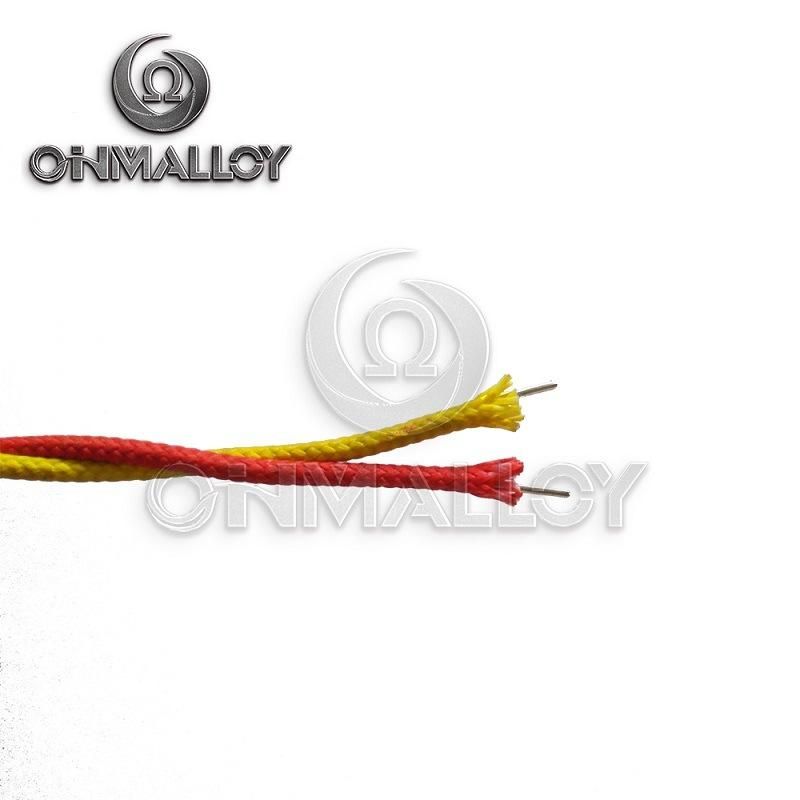

AWG20 Twisted Type K Fiberglass Insulation Thermocouple Cable

Ohmalloy Material Co., Ltd.
  • Type：Insulated
  • Conductor Type：Solid
  • Application：Thermocouple Wires
  • Conductor Material：Chromel and Alumel
  • Sheath Material：Fiber Glass
  • Insulation Material：Fiberglass

Base Info

  • Model NO.：H-TP-1110
  • Material Shape：Round Wire
  • Range of Application：Machinery,Thermocouple,Electricity
  • Certification：ISO9001, ANSI
  • Brand：Ohmalloy
  • Transport Package：100m,Spool, 305m,Spool, 1000FT,Spool, 1000m,Spool
  • Specification：AWG20
  • Trademark：OHMALLOY
  • Origin：China
  • Production Capacity：500000meters Per Month

Description

ProductConductor materialTypeGraduation

Use temperature (°C)

(short time)

Use temperature (°C) (Continuous

operation)



ThermocouplePtRh30-Ptrh6WRRB0-1800°C0-1600°CPtRh10-PtWRPS0-1600°C0-1300°CPtRh13-pTWRBR0-1600°C0-1300°CNiCrSi-NiSiWRMN0-1000°C0-1000°CNiCr-NiAl(Si)WRNK0-1200°C0-900°CNrCr-constantanWREE0-700°C0-600°CIron- ConstantanWRFJ0-600°C0-500°CCopper-ConstantanWRCT0-400°C0-350°CThermal resistanceCopper heat resistance Cu50 -50-150°C Cu100 -50-150°C Pt100 -200-600°C
AWG20 Twisted Type K Fiberglass Insulation Thermocouple Cable
