• Material Shape：Round Wire
• Range of Application：Security System
• Certification：ISO9001, CE, RoHS, ETL SGS CPR
• Brand：Risun or OEM
• Frame Retardant Level：Normal,Cm,Cmr
• Color：According to Customer
• Shield：Pet Foil,Al Foil
• Transport Package：100, 200, 500m,Roll or Wooden Reel
• Specification：ETL, CE, RoHS, SGS, ISO9001
• Trademark：RISUN or OEM
• Origin：Hangzhou, Zhejiang, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000 Boxes , Month

Basic Info.

Material Shape Round Wire Range of Application Security System Certification ISO9001, CE, RoHS, ETL SGS CPR Brand Risun or OEM Frame Retardant Level Normal/Cm/Cmr Color According to Customer Shield Pet Foil/Al Foil Transport Package 100, 200, 500m/Roll or Wooden Reel Specification ETL, CE, RoHS, SGS, ISO9001 Trademark RISUN or OEM Origin Hangzhou, Zhejiang, China(Mainland) HS Code 8544491100 Production Capacity 20000 Boxes / Month

Product Description

Multi Cores High Speed Alarm Cable


Flexible cable used for the wiring of burglar  Alarm and other low voltage circuits. Suitable application Multi core Audio, Control, Fire Alarm and Instrumentation cable for  Industrial, Data, Interconnect and Analogue Audio used.

Features:

Unshield alarm cable:
1. Conductor: 0.22mm² TC/BC/CCA, can 2-40 cores.
2. Frame Retardant PVC insulation
3. Ripcord
4. Frame Retardant PVC jacket.

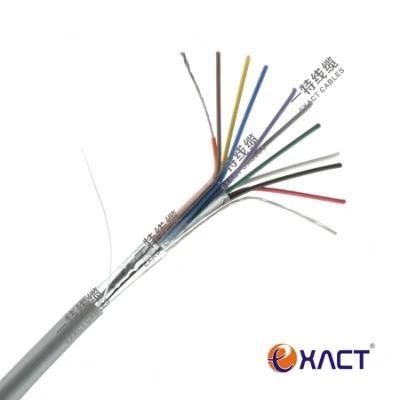

Shielded alarm cable:
1. Conductor: 0.22mm² TC/BC/CCA, can 2-40 cores.
2. Frame Retardant PVC insulation
3. Pet Foil/Aluminum foil
4. Drain wire
5. Ripcord
6. Frame Retardant PVC jacket.

Packing:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;

Usage: Securitity alarm
Certificate: CE, RoHS, ETL.


SERIAL No.	SECTION	SPEICIFICATION	OVERALL DIAM. mm	WEIGHT (KG/KM)
RS-AL01	2*0.22mm2	2*7/0.20	3	11
RS-AL02	4*0.22mm2	4*7/0.20	3.5	18
RS-AL03	6*0.22mm2	6*7/0.20	4.1	25
RS-AL04	8*0.22mm2	8*7/0.20	4.5	32
RS-AL05	10*0.22mm2	10*7/0.20	5.2	39
RS-AL06	12*0.22mm2	12*7/0.20	5.4	46
RS-AL07	14*0.22mm2	14*7/0.20	5.8	54
RS-AL08	20*0.22mm2	20*7/0.20	6.8	76
RS-AL09	30*0.22mm2	30*7/0.20	8.4	114
RS-AL10	40*0.22mm2	40*7/0.20	10	148

The specification, packing, pringting brand all according to customer.
