U/FTP Cat 6A Bc PVC Cm Twisted Pair Installation Cable
Hangzhou Spring Electronics Co., Ltd.- Application:Local Communication Cable, LAN Cable
- Conductor Material:BC,CCS,CCA,TC,CU,CCAG
- Cover Material:PVC
- Type:Cat 6
- Material Shape:Round Wire
- Conductor Type:Solid
Base Info
- Model NO.:U,FTP CAT 6A
- Wire Core Material:Bare Copper Wire
- Certification:CE, ISO, RoHS
- Model:Cat5
- Brand:Fuu
- Transport Package:305m
- Specification:0.5mm conductor
- Trademark:FUU
- Origin:China
- HS Code:8544200000
- Production Capacity:5000km,Month
Description
U/FTP CAT 6A Twisted Pair Installation Cable
LAN CABLE
Construction
Conductor:
23 AWG Solid Bare Copper
Pairs:
4 Pairs
Insulation:
1.35 mm Skin-Foam-Skin
Insulation Colors:
Blue-White/Blue,Orange-White/Orange
Green-White/Green,Brown-White/Brown
Overall Shield
Individual Pair shield,Al/PET Foil,Foil face out
Drain Wire
0.40±0.005mm TC
Rip Cord:
Cotton
Out Jacket:
8.0±0.2 mm PVC CM
Electrical Characteristics
Impedance
4 - 100MHz 100±15 Ohms
100 - 200MHz 100±22 Ohms
200 - 500MHz 100±32 Ohms
Max.Conductor DC
Resistance 20ºC
8.7 Ohms/100m
Res. unbalance (%)
Max. 2.5
Pair to Ground
Capacitance Unbalance
330 pF/100m
Transfer Impendance
Max 10 mOhms/m @100Mhz
Installation temp.
-30 - 50ºC
Operation temp.
-20 - 75ºC

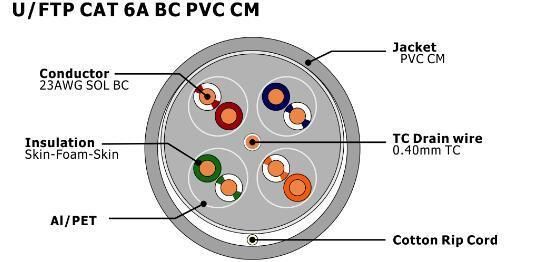

Cross Section
Application
• Suitable for structured premises cabling.
• For transmission of digital and analogue voice and data signals.
• Especially suitable for all Class EA applications.
• ISDN,Ethernet 10 Base-T,Fast Ethernet 100 Base-T, Gigabit Ethernet 1000Base-T, 10G Base-T.(IEEE 802.3).
• Token Ring4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s, ATM 155Mbit/s.(IEEE802.5).
Standard
IEC/ISO 61156-5; ANSI/TIA568C.2; ISOIIEC 11801
Performance Characteristics
Frequency
RL (Min.)
Insertion Loss(Max.)
Propagation Delay (Max.)
Delay Skew(Max.)
NEXT (Min.)
PSNEXT (Min.)
ELNEXT (Min.)
PSELNEXT (Min.)
MHz
dB
dB/100m
ns/100m
ns/100m
dB
dB
dB/100m
dB/100m
1
20.0
2.1
570.0
45.0
74.3
72.3
67.8
64.8
4
23.0
3.8
552.0
45.0
65.3
63.3
55.8
52.8
10
25.0
6.0
545.0
45.0
59.3
57.3
47.8
44.7
16
25.0
7.6
543.0
45.0
56.2
54.2
43.7
40.7
20
25.0
8.5
542.0
45.0
54.8
52.8
41.8
38.8
31.25
25.0
10.7
540.0
45.0
51.9
49.9
37.9
34.9
62.5
21.5
15.4
539.0
45.0
47.4
45.4
31.9
28.9
100
20.1
19.8
538.0
45.0
44.3
42.3
27.8
24.8
200
18.0
29.0
537.0
45.0
39.8
37.8
21.8
18.8
300
17.3
36.4
536.0
45.0
37.1
35.1
18.3
15.3
400
17.3
43.0
536.0
45.0
35.3
33.3
15.8
12.8
500
17.3
45.3
536.0
45.0
33.8
31.8
13.8
10.8
Note: The above transmission performance tor the 100M, 20±2ºC under the conditions tested.
Order Informations
Marking
U/FTP CAT6A 4PR 23AWG PVC CM
XXX (or Per customer's request)
Inner Package
305m/Spool,305m/Reel (or Per customer's request)
Outer Package
Color Box, Pallet (or Per customer's request)
Delivery time
Normally 25 days after received the deposit.
