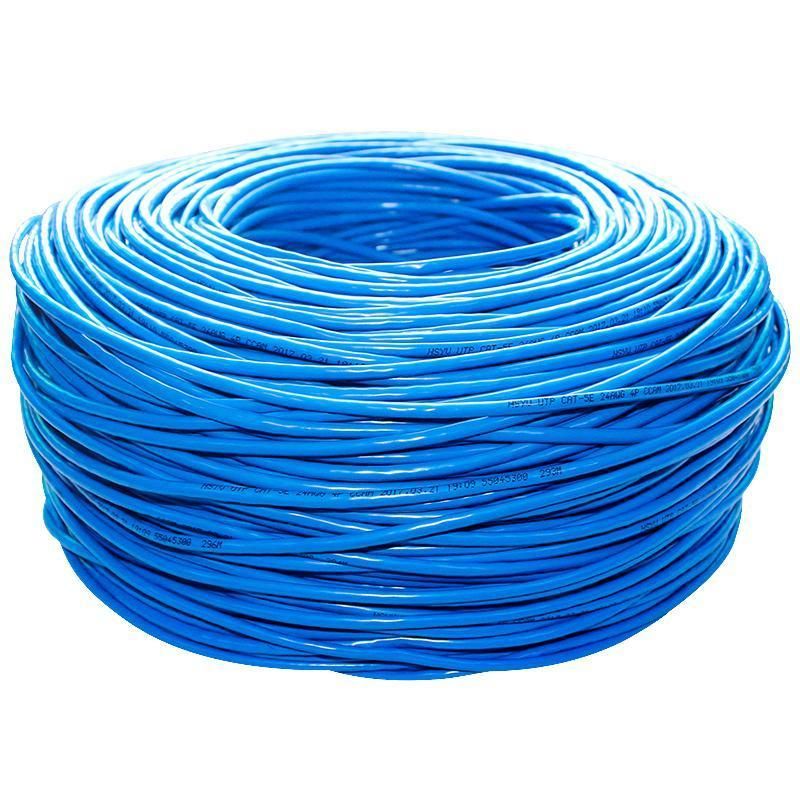

UTP Networking Cable
Shenzhen Anxun Industrial Co., Ltd.- Type:Insulated
- Conductor Type:Stranded
- Application:Overhead, Heating, Underground
- Conductor Material:Copper Clad Steel
- Sheath Material:PVC
- Insulation Material:Bare
Base Info
- Model NO.:CAT6
- Material Shape:Round Wire
- Range of Application:Cold-Resistant
- Certification:ISO9001, CE, UL, CCC, RoHS
- Brand:Tunxun
- Transport Package:100m Per Roll.Inner Packing by Cross Straps and Pl
- Origin:Shenzhen China
- HS Code:8544491100
- Production Capacity:50000000
Description
Model
Cat6 UTP Cable
Conductor Size
23AWG
Conductor Material
BC/CCA/CCS
Number Of Conductor
4P
Flammability Grade:
CMX,CM,MP,CMG,MPG,CMR,MPR
Indoor / Outdoor
Single jacket(PVC) / Double jacket(PVC+PE)
Insulation Thickness
1.03±0.03mm HDPE/LDPE
Number of pairs: 4 pairs
Pair1: Orange/White Orange Pair2: Blue/ White Blue
Pair3: Green/ White Green Pair4: Brown/White Brown
Jacket Material
PVC, ROHS PVC, LSZH PVC
DC Resistance(Max.)
9.5Ω/100m
DC Resistance Imbalance
2.50%
Working Capacitance(Max.)
5.4nF/100m
Insulation Resistance
10000MΩ.km
Transmission Velocity
65%
Operating Temperature
-20 °C - +75 °C
PVC Jacket Color
As client's request.
FAQ
Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?
A: We are factory.Q2. HOW LONG IS YOUR DELIVERY TIME?
A:Generally it is 5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one colorQ4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Q5. HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
