Outdoor Overhead 120m Span G652D G655 24 48 72 96 144 Core Aramid Yarns Double Jacket Optical Fiber Cable ADSS
Zhejiang Fuchunjiang Photoelectric Science Technology Co., Ltd.- Application：Communication
- Type：Single-mode Fiber
- Material Shape：Round Wire
- Allowed Lateral Pressure：>1000(N,100mm)
- Allowed Tensile Strength：1000N<10000N
- Core：Multicore
Base Info
- Model NO.：ADSS 120M G652. D G655
- Certification：RoHS, UL, CE, ISO9001, VDE, CCC
- Brand：Fcj Opto Tech
- Sheath Material：PE,HDPE,Lzsh
- Model No.：ADSS 120m
- Color：Black
- Delivery Time：Around 10 Days
- Transport Package：Wooden Drum
- Specification：*
- Trademark：FCJ OPTO TECH
- Origin：China
- HS Code：8536700000
- Production Capacity：8000km,Month
Description

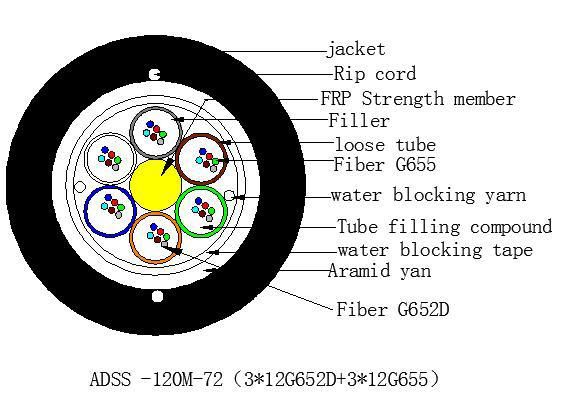

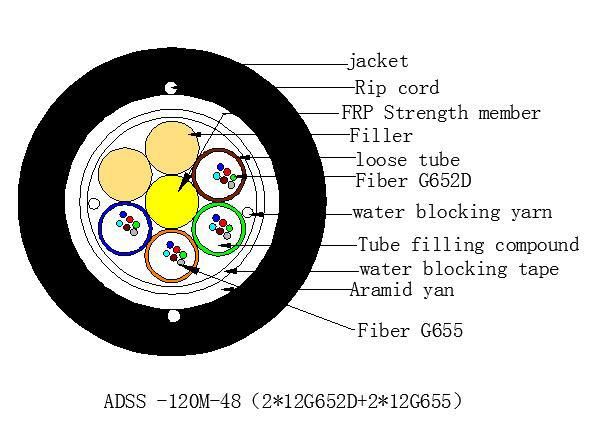

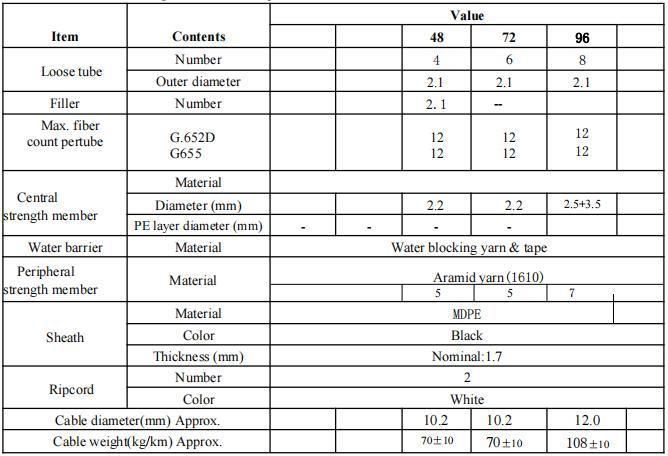

3.2 Dimensions and Descriptions The standard structure of the cable is shown in the following table, other structure and fibre count are also available according to customer requirements.

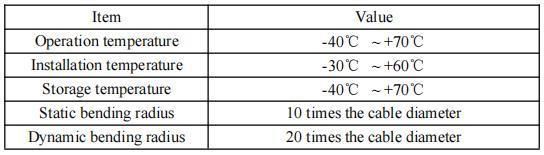

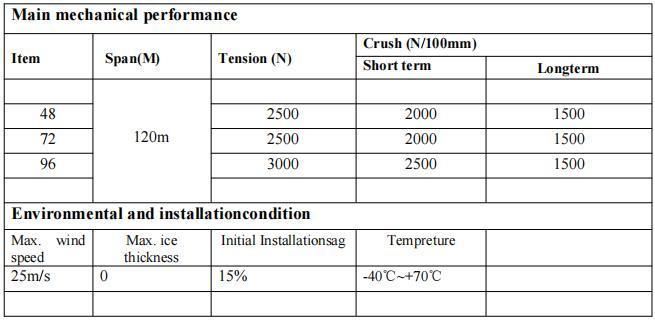

3.3 Main Mechanical and Environmental Performance
4. Packaging and Drum 4.1 Cable Sheath Marking Unless otherwise specified, the cable sheath marking shall be as follows: Outer sheath marking legend can be changed according to user's requests. 4.2 Reel Length Standard reel length: 4 km/reel, other length is also available 4.3 Cable Drum The cables are packed in fumigated wooden drum 4.4 Cable Packing Both ends of the cable will be sealed with suitable plastic caps to prevent the entry of moisture during shipping, handling and storage. The inner end is available for testing 4.5 Application
