• Wire Core Material：Bare Copper Wire
• Certification：CE, RoHS, CCC, UL, CPR
• Model：2cores
• Brand：Exactcables
• Cable Core：2cores
• Shield：Al,Foil
• Drain Wire：1,0.5tc mm
• Jacket：PVC
• Specification：2cores
• Trademark：ExactCables
• Origin：Ningbo
• Production Capacity：5000000000

Basic Info.

Wire Core Material Bare Copper Wire Certification CE, RoHS, CCC, UL, CPR Model 2cores Brand Exactcables Cable Core 2cores Shield Al/Foil Drain Wire 1/0.5tc mm Jacket PVC Specification 2cores Trademark ExactCables Origin Ningbo Production Capacity 5000000000

Product Description

4*2.5mm2 UL Approved Screened or Unscreened 2X1.5mm2 Tinned Copper/Copper Stranded or Solid Fire Resistant Silicon Rubber Low Smoke LSZH LSZH Fire Alarm Cable


PRODUCT DESCRIPTION

• Fire Resistant Cables are manufactured with latest technology to ensure consistent quality and reliability.
• Conductor: Solid barecopper

(IEC/ EN 228, BS 6360, VDE 0295, HD 383)

• Insulation:Fire resistant silicon rubber(HD 22.1,BS 7655 EI2),

colors:BS7671/HD308-S2/VDE0293-308(for more than 5 cores white
core/black numbered)

• Separator: Polyester tape
• Drain Wire:0.80mm Solid tinned copper
• Shield: Aluminium laminated polyester tape
• Sheath:HFFR,Red(RAL3000) or White;EN 50290-2,VDE 0207 HM2, BS 7655 LTS1/LTS3

  KEY APPLICATIONS

• Fire detection and fire alarm systems for buildings.
• Voice alarm systems.
• Emergency voice communication.
• Emergency and escape lighting.
• Other essential service control circuits for 'standard' fire resistance.

Cables

Part N0.	Conductor Spec.	Dia. (+/-5%)mm	Copper W (kg/km)	Cable W. (kg/km)
ECFC039	2×1.00mm2	5.80	23	51
ECFC040	3×1.00mm2	6.00	32	65
ECFC041	4×1.00mm2	6.60	41	81
ECFC042	2×1.50mm2	6.65	33	70
ECFC043	3×1.50mm2	6.75	46	90
ECFC044	4×1.50mm2	7.60	59	110
ECFC045	2×2.50mm2	7.80	50	100
ECFC046	3×2.50mm2	8.25	72	135
ECFC047	4×2.50mm2	9.10	95	165

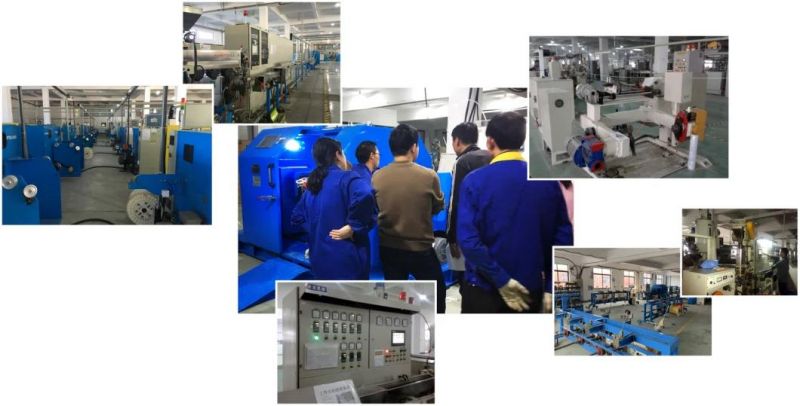

PRODUCTION EQUIPMENT

QUALITY POLICY

Exactcables will manufacture cable according to customer's requirement in an effective and profitable manner. To achieve the above, the Management is committed to the following:

• Maintain the ISO 9001 Quality Management System
• Continual review and improvement of the effectiveness of the Quality Management System
• Provide all necessary resources to manufacture quality cable
• Create a safe and technologically advanced working environment
• Respect for the environment in which we operate
• Training and communication to keep employees informed and involved

Every employee has the responsibility to ensure that these requirements are met.
COMPANY INFOMATION
We,Ningbo Exact Cables & Wire Co.,Ltd is a Pioneer manufacturer with more than 12 years experience in the cable industr y in China. We can professionally manufacture and supply Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, telecommunication cables, telephone cables, power cables and other various of cables and wires, Our products with the brand of "Exactcables" which are approved by China CCC, the CPR, UL, CE, RoHS, ETL and REACH. The current production capacity is about 500,000,000 meters per year.

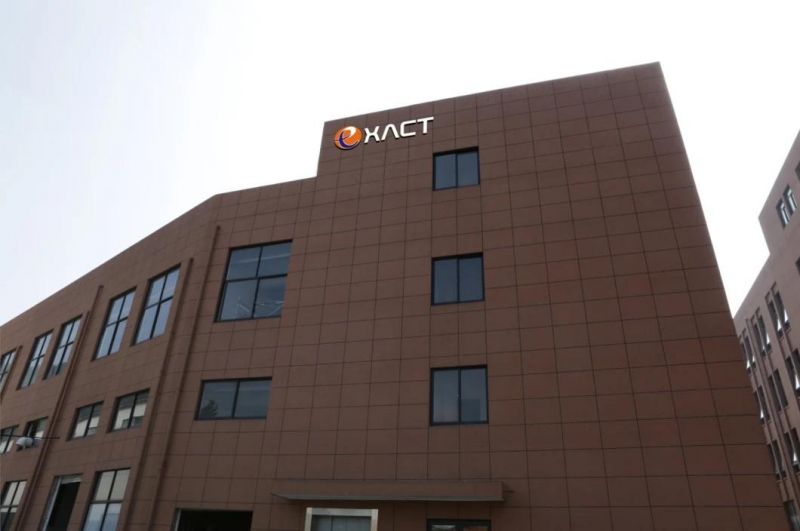

Our factory is located in zhejiang Ningbo which is a beautiful port city. We have very advanced testing machines, including Agilent and HP analyzer. We carefully test cables under ISO 9001-2000 quality management before shipping to the customers. And our quality is always reliable.

Most of our products are expor ted to Europe, America, Russia, and South-east Asia. Etc. What is more, our company always devotes to developing custom cables according to clients needs. We look for ward to working with you and getting mutual benefit in future.

FAQ:
Q1: What kind of cable do you produce?
A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, telecommunication cables, telephone cables, power cables and other various of cables and wires
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc

Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.

Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.

Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.

Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term

Q6: Where is your factory located? How can I visit there?
