Patch Cord Om1 62.5/125 Multimode Duplex LC/Upc-LC/Upc
GHT WIRE & CABLE CO., LIMITED- Application:Fiber Optic Cable, Long Distance Symmetric Cable
- Conductor Material:Quartz Glass Fiber Core
- Cover Material:PVC
- Type:FC Fiber Optical
- Material Shape:Round Wire
- Certification:CE, ISO, RoHS, CCC, UL, VDE
Base Info
- Model NO.:Optical Fiber Patch Cord
- Unit:Piece
- Transport Package:100pic in One Carton
- Specification:carton size 54*39*28mm
- Trademark:OEM
- Origin:Guangdong, China
- HS Code:85444219
- Production Capacity:5000000pieces,Year
Description
Type
Standard,Master
Style
LC,SC,ST,FC.MU,DIN,D4,MPO,MTP
Fiber
Singlemode 9/125 /Multimode 50/125, Multimode 62.5/125
OM3/OM4/OM5
Cable
Simplex, Duplex,6fiber,12fiber,24fiber,48fiber
Φ3.0mm, Φ2.0mm, Φ0.9mm
PVC or LSZH
Polishing Manner
UPC,PC,APC (8°& 6°)
Insertion Loss
≤ 0.1dB (For Singlemode Master)
≤ 0.25dB (For Singlemode Standard)
≤ 0.25dB (For Multimode)
Tested by JDS RM 3750
Return Loss
(Singlemode)
UPC ≥ 50dB
SPC ≥ 55dB
APC ≥ 60dB (typ.65dB)
Tested by JDS RM3750
Repeatability
±0.1dB
Operating temperature
-400C to 850C
Geometry Requirement
( Singlemode)
Ferrule Endface Radius
7mm ≤ R ≤ 12mm (For APC)
10mm ≤ R ≤ 25mm (For Standard)
Apex Offset ≤ 30 μm (For Master)
Apex Offset ≤ 50 μm (For Standard)
Undercut -50nm ≤ U ≤ 50nm
Tested by DORC ZX-1
5.Product list
Boot
Connector
Fiber Type
Cable number
Ferrule
Connector
0.9mm
2.0mm
3.0mm
4.0mm
LC
SC
FC
ST
MU
D4
MTRJ
MPO
DIN
9/125um SM
50/125um MM
62.5/125um MM
OM3
OM4
OM5
Simplex
Duplex
Multi-fiber
Ribbon
PC
APC
UPC
1M
2M
3M4M
5M
.........
Customized

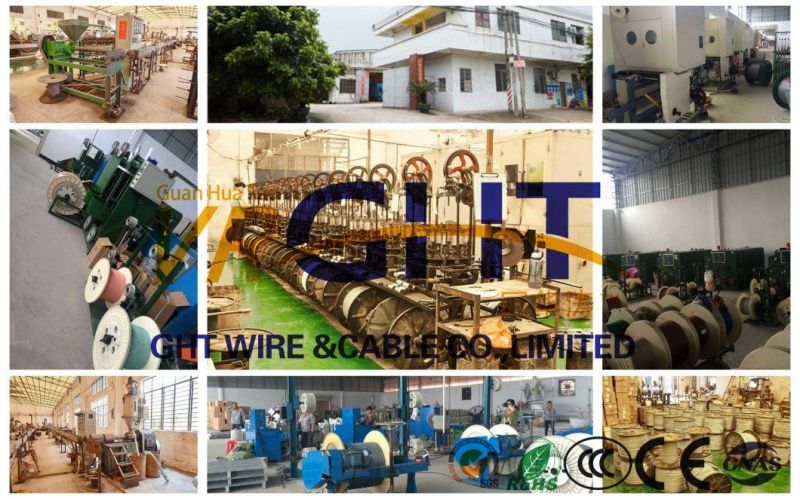

Factory Presentation&Certification
FAQ
Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable, HDMI cable, VGA cable, telephone cable, speaker cable and etc.
Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.
Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.
Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.
Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.
Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.
Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.
