Double PVC Insulated Sheath Jacket Strengthened Copper Conductor Core Electric Electrical Home House Building Wiring Rigid Solid Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Heating, Underground, Building Wire
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：Power Cables
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE, TUV
- Brand：Fengda
- Colour：Red,Green,Blue,Black,White,as Request
- Flame Test：Yes
- OEM/ODM：Accepted
- Core：Single Core and Multicore
- Factory Type：Manufacturer
- Transport Package：Rolls or According to Cusotmers′ Reques
- Specification：0.12 to 400mm2
- Origin：Tianjin, China(Mainland)
- HS Code：8544492100
- Production Capacity：5000000km,Year
Description

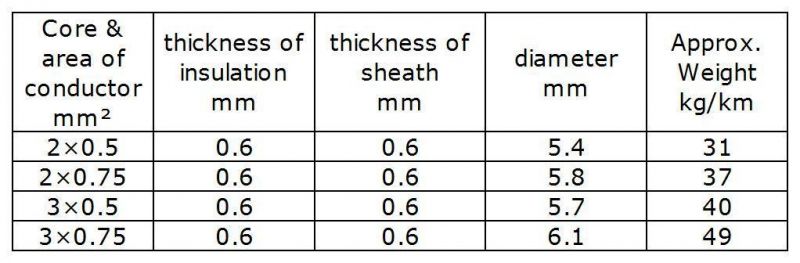

Type: H03VV-F /A03VV-F(60227 IEC 52)
Application: Suitable in dry locations for connections of portable electrical
appliances submitted to weak mechanical strength, such as radio sets and
lighting fittings, not for heating devices.
Conductor: finely stranded flexible bare cooper
Insulation: PVC
Sheath: PVC
Rate voltage: 300/300V
Standard: IEC 60227-5 DIN VDE 0281-5
DIN EN 60228 class 5 (construction)
Test voltage:2000V
Temperature range: +5°C till +70°C
Bending radius: Min 6 times diameter

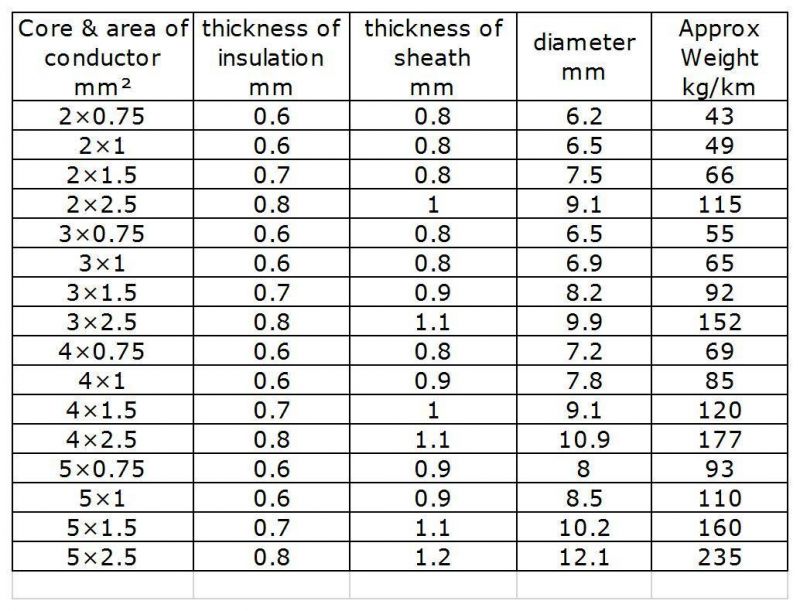

Type: H05VV-F /A05VV-F(60227 IEC 53)
Application: Suitable in dry and humid locations for connections of electrical
appliances submitted to medium level mechanical strength, such as washing
machines, refrigerators, etc. Suitable for heating appliances provided that there
is no risk of contact with hot parts.
Conductor: Flexible Conductor
Insulation: PVC
Sheath: PVC
Rate voltage: 300/500V
Standard: IEC 60227-5 DIN VDE 0281-5
DIN EN 60228 class 5 (construction)
Test voltage:2000V
Temperature range: +5°C till +70°C
Bending radius: Min 5 times diameter
