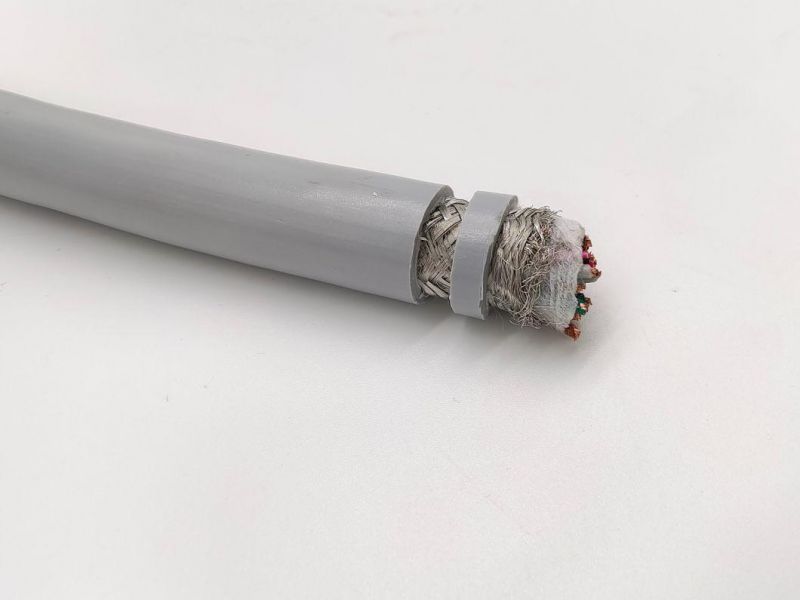

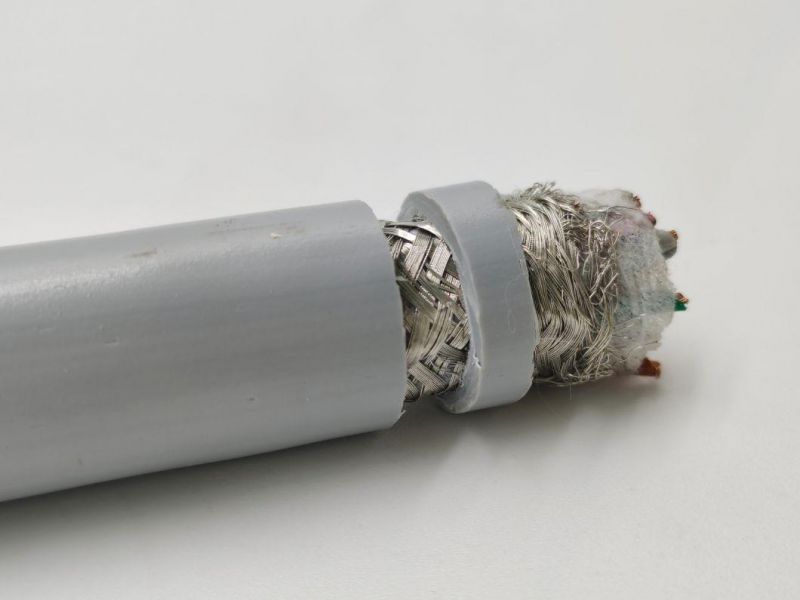

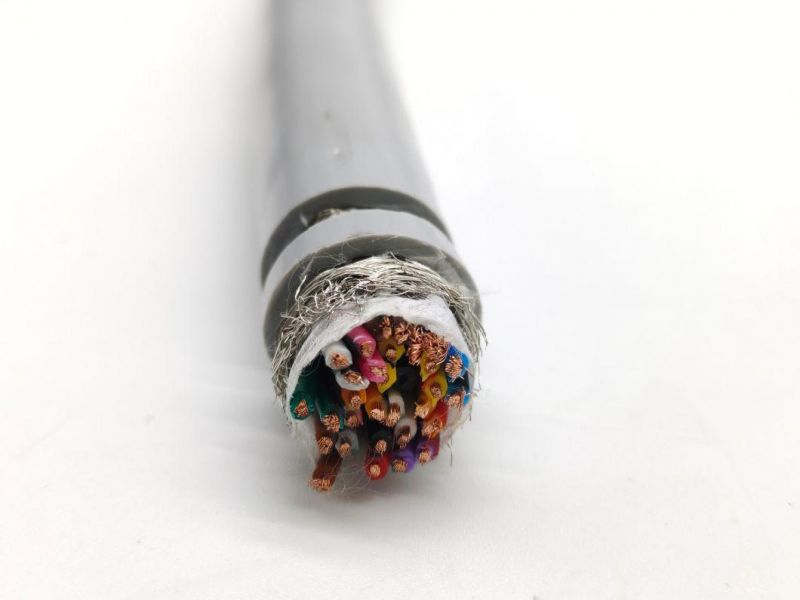

F-Cy-Jz / F-Cy-Oz / F-Dy-Oz PVC Control and Connection Cable Helukabel Alternative

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：F-CY-JZ , F-CY-OZ , F-DY-OZ
  • Range of Application：Aein
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Electrical Facilities
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemF-CY-JZ / F-CY-OZ / F-DY-OZ PVC control and connection cableConductorCopper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5InsulationPVC, compound type Z 7225Nominal voltageAC U 0 /U 300/500 VTest voltage core/core4000VTest voltage core/screen  2000 VBreakdown voltage8000 VTemperature RangeFlexible -10°C to +80°C
Fixed -40°C to +80°CColorOptionalCertificationCEApplicationFor flexible use with free movement without tensile stress or forced movements in dry, moist and wet rooms but not outside; to be used as control and connecting cable in control and regulation technology, in the tool and machine building industry, in computer systems, as well as a signal cable in the electronic industry. A stabilizing foil separator between wire bound and braid reduces the outer diameter essentially and allows for smaller bending radius as well as lower weights. The disturbance free transmission of signals and impulses is ensured due to the high degree of screening.
