• Model NO.：almelec cable
• Material Shape：Round Wire
• Range of Application：Primarily and Secondary Overhead Transmission and
• Certification：ISO9001, CCC, SGS
• Brand：Hongda
• Standard：NFC 34 125, En 50182

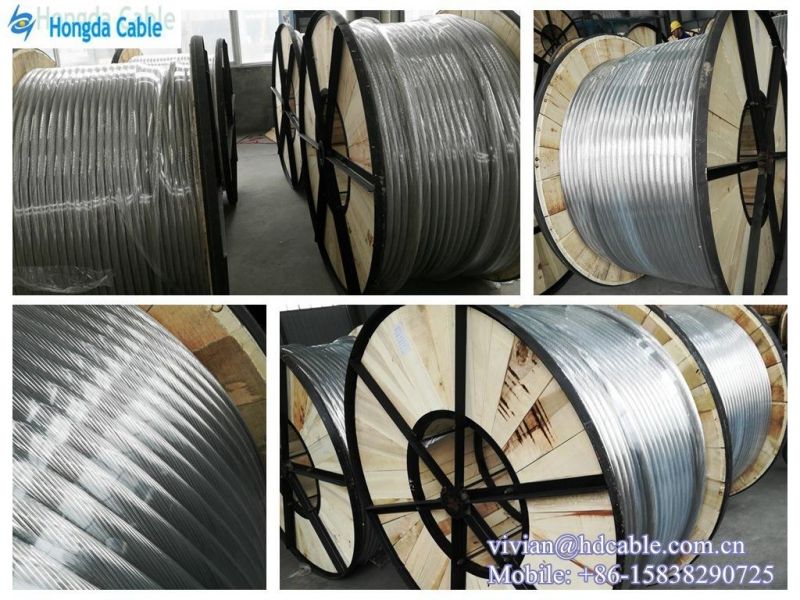

• Transport Package：1000m Per Export Drum
• Specification：22.0 to 570mm2
• Trademark：Hongda
• Origin：China
• HS Code：7614900000
• Production Capacity：1500km,Month

Basic Info.

Model NO. almelec cable Material Shape Round Wire Range of Application Primarily and Secondary Overhead Transmission and Certification ISO9001, CCC, SGS Brand Hongda Standard NFC 34 125, En 50182 Transport Package 1000m Per Export Drum Specification 22.0 to 570mm2 Trademark Hongda Origin China HS Code 7614900000 Production Capacity 1500km/Month

Product Description

AAAC Conductor Aluminium Alloy Almelec Cable 34.4 mm2 54.6mm2 117mm2

Specification

Application:

AAAC - All Aluminum Alloy Conductor is used for primarily and secondary overhead transmission and distribution services. AAAC conductor is designed utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio and better sag characteristic. AAAC conductor has a higher resistance to corrosion than ACSR.

These condcutors are used for the long spans network. They could be supplied Greased or not Greased.



Conductors:

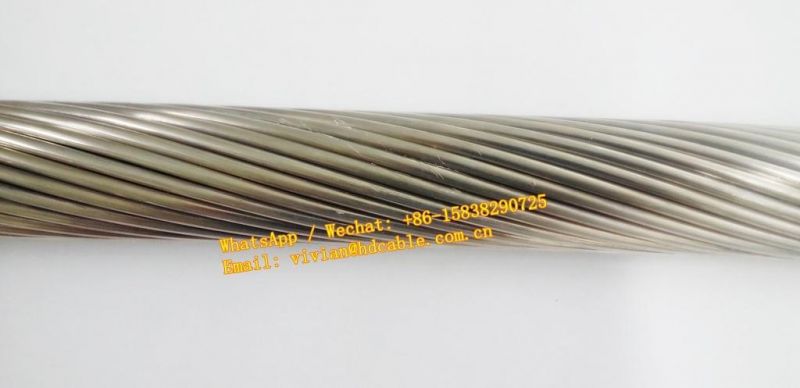

AAAC conductor is a concentric lay stranded conductor consisting of Aluminum Alloy 6201-T81 wires, similar in appearance to a 1350 grade aluminum conductor.

Notes: DC resistance at 20°C of the 6201-T81 alloy has a greater resistance to abrasion than conductors of 1350-H19 grade aluminum.

Standards: AAAC conductors meet or exceed the following:

• NFC 34 125, EN 50182
• Requirements of the National Electrical Code

Conductor's workability

All Aluminum Alloy Conductor consist of 6201-T81 Aluminum Alloy wires, which largely looks like the 1350 grade Aluminum conductor. It offers good electrical conductivity. DC resistance at 20 degrees Celsius for the 6201-T81 series has a greater abrasive resistance than 1350-H19 Aluminum conductor series. The conductor is also resistant to moisture and weather. It is lightweight and flexible hence requires less effort to move around during installation.

Applications

This cable is mainly used in both primary and secondary overhead transmission and distribution applications. Given that Aluminum is recyclable, it can be put to other uses once worn out. The cable can also be used for grounding in electrical constructions.

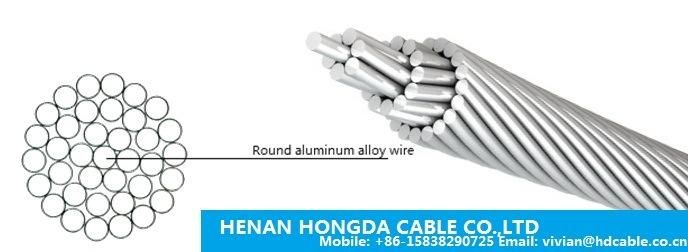

CONDUCTOR CONSTRUCTION Aster (Aluminium Alloy) Greased or not Greased.

DESCRIPTION CORE Aluminium alloy assembled wires.

name	name	actual section	no. of wire	wire diameter	conducto diameter	conductor weight appr.	calc. breaking force	calc.conductor resistance
NF-C 34125	EN 50182	mm²		mm	mm	kg/km	kN	Ohm/km
ASTER 22	22-AL4	22,0	7	2,00	6,00	60,0	7,15	1,498
ASTER 34,4	34-AL4	34,4	7	2,50	7,50	93,5	11,17	0,959
ASTER 54,6	55-AL4	54,6	7	3,15	9,45	148,9	17,73	0,604
ASTER 75,5	76-AL4	75,5	19	2,25	11,3	207,4	24,55	0,438
ASTER 117	117-AL4	117,0	19	2,80	14,0	321,2	38,02	0,283
ASTER 148	148-AL4	148,1	19	3,15	15,8	406,6	48,12	0,223
ASTER 181,6	182-AL4	181,6	37	2,50	17,5	500,3	59,03	0,183
ASTER 228	228-AL4	227,8	37	2,80	19,6	627,6	74,04	0,146
ASTER 288	288-AL4	288,3	37	3,15	22,1	794,3	93,71	0,115
ASTER 366	366-AL4	366,2	37	3,55	24,9	1.008,9	115,36	0,090
ASTER 570	570-AL4	570,2	61	3,45	31,1	1.576,0	185,33	0,058
ASTER 851	851-AL4	850,7	91	3,45	38,0	2.360,7	276,47	0,039
ASTER 1144	1144-AL4	1.143,5	91	4,00	44,0	3.173,4	360,22	0,029
ASTER 1600	1600-AL4	1.595,9	127	4,00	52,0	4.427,5	502,72	0,021
