Ready-to-Use Drain Eave PTC Heat Cables
Wuhu Jiahong New Material Co., Ltd.- Nominal Cable Width(in)：0.500
- Nominal Cable Thickness(in)：0.24
- Heating Cable Bus Wire Gauge：16AWG
- Cold Lead Length(in)：35
- Max Exposure Temp：Degree 85
- Electrical Classification：Non-Hazardous
Base Info
- Model NO.：PLSR
- Transport Package：Innner Carton Master Carton
- Specification：plug with light
- Trademark：jiahong
- Origin：Anhui Wuhu
- Production Capacity：17000PCS Per Day
Description
Basic Info.
Model NO. PLSR Transport Package Innner Carton Master Carton Specification plug with light Trademark jiahong Origin Anhui Wuhu Production Capacity 17000PCS Per DayProduct Description

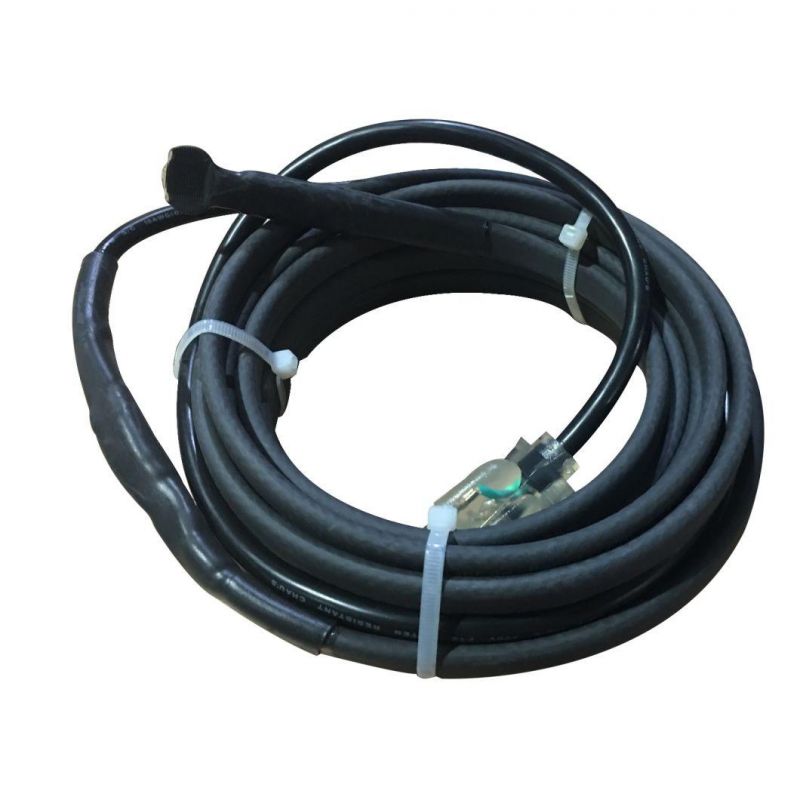

Ready-to-use Drain Eave PTC Heat CablesProduct Description1. Product Pictures of Ready-to-use Drain Eave PTC Heat Cables
2.General Information of Ready-to-use Drain Eave PTC Heat Cables
These heating cables provide pipes, roofs, and gutter systems protection
from damage due to freezing, and can be used in residential and commercial applications. The cables automatically adjust heat output according to the ambient temperature conditions. Under cooler conditions the heat output increases, and as the temperature rises the output decreases to save on energy. The cables operate on 120V and are available in various pre-assembled lengths.
Features
- Pre-assembled cable lengths include a 3 feet power cord and plug
- Suitable for plastic or metal pipes, gutters and downspouts
- Ease of installation, as the cable can be overlapped without the risk of becoming overheated or burnt.
Accessories needed
JSR03 - Fiberglass application tape and ten warning labels
JSR15 - Hanger bracket and UV resistant cable ties
JSR13 - Roof clips, 10 pieces
JSR14 - Roof clips, 50 pieces

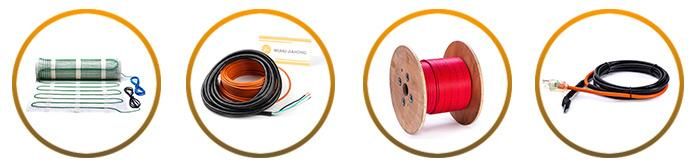

3. More Products for You to Choose
Company Information

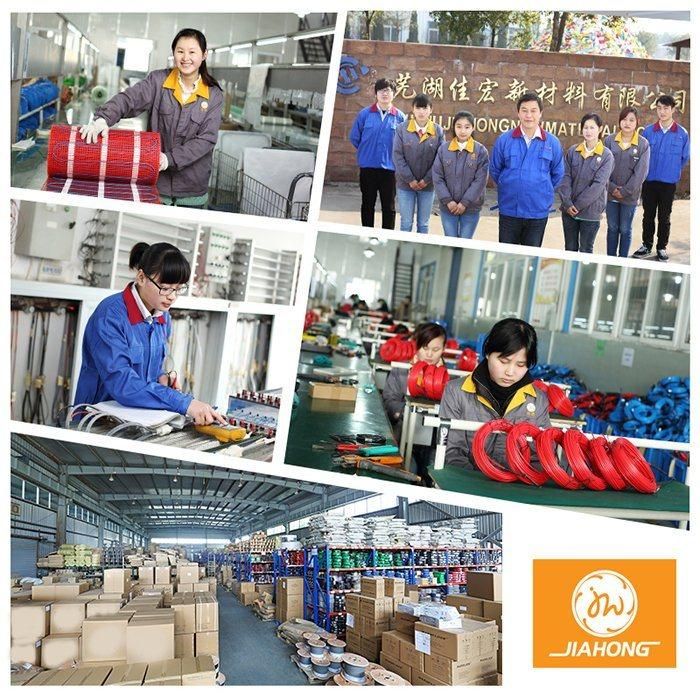

1. About us
WuHu Jiahong New Material Co. Ltd is the largest heating cable manufacturer in Asia-pacific. We are always dedicated to research, develop and produce both constant wattage and self-regulating heating cables since 1993. Till now, Jiahong has obtained more than 30 national patents. We are one of the few members of China self-regulating heating cable national standard GB/T 19835-2005.Most of WuHu Jiahong products passed UL, CSA, ETL, TUV, CE, ATEX etc. We export to many regions, especially North America, Europe, Australia and Asia. High quality combines with professional services earned us a good reputation.
2. Why Choose us
Advantages
Our Services
We help our customer develop heating cable, floor heating, snow melting for their application and OEM offered.

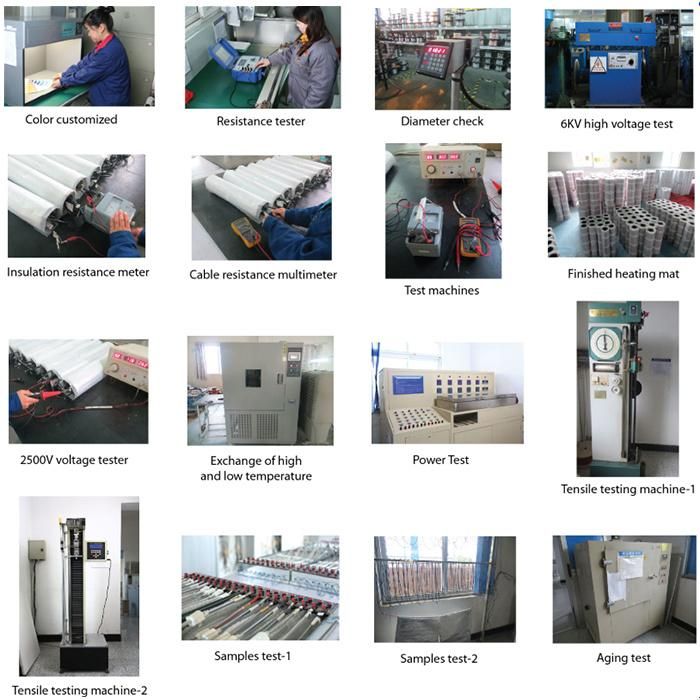

Quality control
3. Company Certificates
FAQ
1.How long will it take for the underfloor heating system to warm up?
The warm up time of an electric underfloor heating system will be dictated by the insulation used beneath it and the output of the system. In general, the better insulated the sub-floor the faster the system will warm up, with Underfloor Insulation boards?facilitating a very speedy warm up time of as little as 15 minutes, and un-insulated concrete floors causing the slowest warm up time. Using a?200W system?beneath ceramic/stone tiles provides a faster warm up time than 150W system.
2. Can I turn my heating on the day it is fitted?
If you have installed your heating beneath tile adhesive, levelling compound or a screed you must allow this to dry out before turning on your system for the first time. If the system is turned on too early it will force the moisture out of the covering which may lead it to crack. We would recommend speaking to the manufacturer of your flexible tile adhesive, grout or screed to confirm the drying time required.
3. Does each room require its own thermostat?
We would recommend that each room has its own heating system controlled by its own thermostat. This will allow for simpler and more accurate temperature control of each room and will avoid heating rooms which do not require it.
