• Model NO.：H05V2-K , H07V2-K
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Feiya
• Color：Black Red Yellow, According to Voltage Level
• Whether It Is Environmentally Friendly：Yes
• Whether Quality Inspection：Provide Inspection Certificate
• Standard：Customized According to Specified National Standar
• OEM/ODM：Accepted
• Core：Single Core and Multicore
• Transport Package：Standard Export Packaging
• Specification：International General Specifications
• Trademark：Fengda
• Origin：Tianjin, China(Mainland)
• HS Code：8544492100
• Production Capacity：100000,Day

Application

Heat resistant cable designed for internal wiring in switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.

Standard

BS/VDE EN 50525-2-31.

Technical Data

Voltage Rating : H05V2-K 0.5 to 1 mm² - 300 / 500V, H07V2-K 1.5 to 35 mm² - 450 / 750V
Temperature Range : -30°C to +90°C
Minimum Bending Radius :
Cable diameter ≤ 8 mm : 4 x outer diameter
Approx. diameter > 8 to 12 mm : 5 x outer diameter
Approx. diameter > 12 mm : 6 x outer diameter
Test Voltage : 2500V

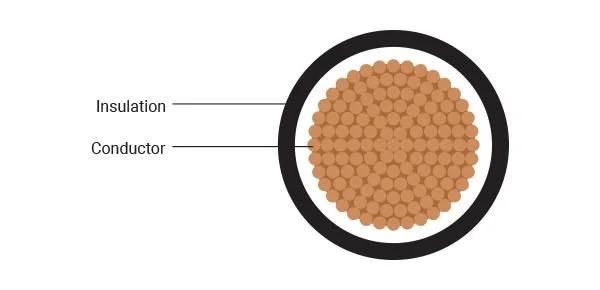

Construction

Conductor Class 5 flexible plain / metal coated stranded according to EN 60228.
Insulation PVC (Polyvinyl Chloride) TI3 to BS EN 50363 - 3.

Properties

PVC self-extinguishing and flame retardant according to EN 60332-1-2.
