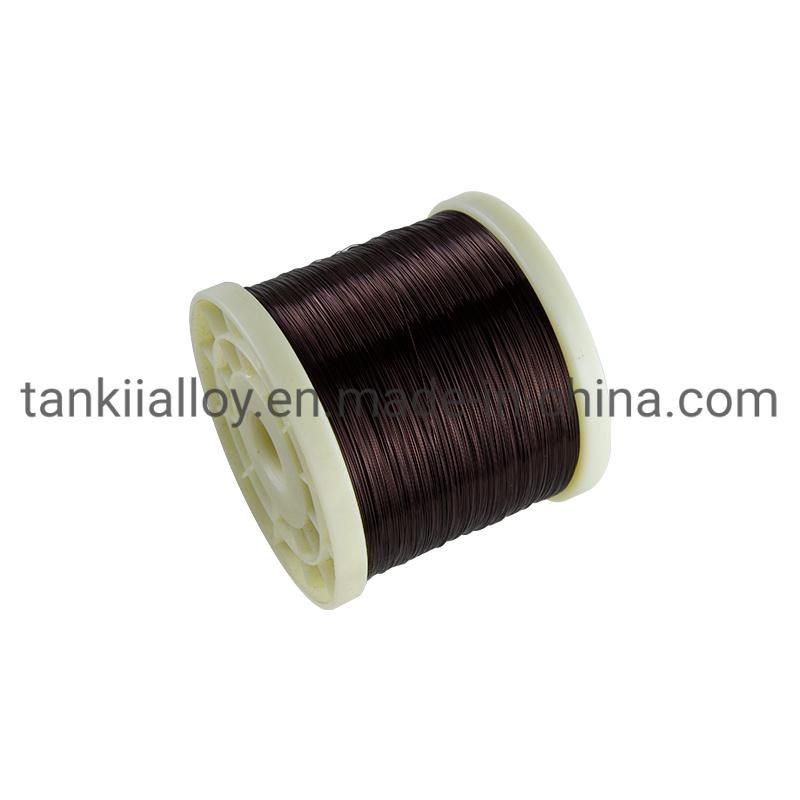

Enameled Ni80Cr20 Nichrome Heating Resistance Alloy Wire
Shanghai Tankii Alloy Material Co., Ltd.- Type：Insulated
- Conductor Type：Solid
- Application：Heating, Underground
- Conductor Material：Copper
- Sheath Material：PEI
- Insulation Material：Enameled
Base Info
- Model NO.：NiCr 80,20
- Material Shape：Round Wire
- Range of Application：Cold-Resistant
- Certification：ISO9001, CE, CCC, RoHS
- Brand：TANKII
- Resistivity：1.09
- Color：Red, green, blue, black etc.
- MOQ：5KG
- size：0.02mm Min
- Temper. Class：155,180, 200, 240,
- Transport Package：Spool, Paper Carton, Wooden Case
- Specification：RoHS, ISO 9001
- Trademark：TANKII
- Origin：China
- HS Code：7505220000
- Production Capacity：2000t,Year
Description
Insulation-enamelled Name
Thermal LevelºC
(working time 2000h)
Code Name
GB Code
ANSI. TYPE
Polyurethane enamelled wire
130
UEW
QA
MW75C
Polyester enamelled wire
155
PEW
QZ
MW5C
Polyester-imide enamelled wire
180
EIW
QZY
MW30C
Polyester-imide and polyamide-imide double coated enameled wire
200
EIWH
(DFWF)
QZY/XY
MW35C
Polyamide-imide enamelled wire
220
AIW
QXY
MW81C
main
property
type
Cuni1
CuNI2
CuNI6
CuNi8
CuNI10
CuNi19
CuNi23
CuNi30
CuNi34
CuNI44
main
chemical
composition
Ni
1
2
6
8
10
19
23
30
34
44
MN
/
/
/
/
/
0.5
0.5
1.0
1.0
1.0
CU
rest
rest
rest
rest
rest
rest
rest
rest
rest
rest
max
working
temperature
/
200
220
250
250
300
300
350
350
400
density
g/cm3
8.9
8.9
8.9
8.9
8.9
8.9
8.9
8.9
8.9
8.9
resistivity
at 20 °c
0.03
± 10%
0.05±
10%
0.10±
10%
0.12±
10%
0.15±
10%
0.25±
5%
0.30±
5%
0.35±
5%
0.40±
5%
0.49±
5%
temperature
coefficient of
resistance
<100
<120
<60
<57
<50
<25
<16
<10
-0
<-6
tensile
strength mpa
>210
>220
>250
>270
>290
>340
>350
>400
>400
>420
elongation
>25
>25
>25
>25
>25
>25
>25
>25
>25
>25
melting
point °c
1085
1090
1095
1097
1100
1135
1150
1170
1180
1280
coefficient of
conductivity
145
130
92
75
59
38
33
27
25
23
